Short review: ASRock Z490M-ITX/ac - memory type DDR4, cpu socket LGA1200, chipset Z490. Suited for building a PC or upgrading the platform., Manufacturer: Asrock, Memory Frequency: 4400MHz, Socket: LGA1200, Chipset: Z490, Memory Type: DDR4, Condition: New, SKU: 39532

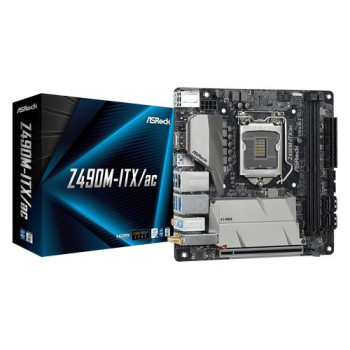

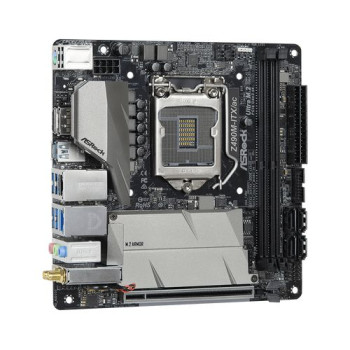

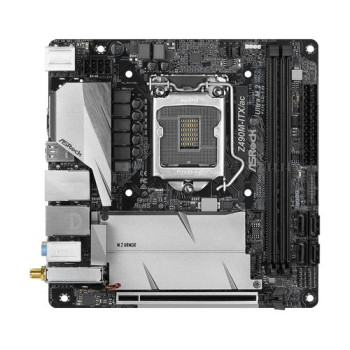

Motherboard ASRock Z490M-ITX/ac DDR4 LGA1200
Pick up and delivery options:
- Collection from the Ashdod branch - 0₪
- PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
- Home delivery - 45 shekels - over 2999₪ - Free Delivery
- Self-collection from the importer - 0₪ - contact us for pick up option
*Except for cases of abnormal size/weight
Payment options:
- Up to 6 interest-free Credit Card (7-36 with interest) payments through a website, phone, or Ashdod branch
- Bank transfer (Deferred payment not accepted), Bit, PayBox
- Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
- PayPal - Only Shipments With a Tracking Number
| Specification | |
| Revew | ASRock Z490M-ITX/acASRock Z490M-ITX/ac - memory type DDR4, cpu socket LGA1200, chipset Z490. Suited for building a PC or upgrading the platform. The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade. Key specifications
What it is forThis product is intended for building a PC or upgrading the platform. Product identificationManufacturer part number: Z490M-ITX/ac. Use it to confirm that accessories and spare parts match. |
| Review | |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | Z490M-ITX/ac |
| Model | Z490M-ITX/ac |
| Condition | New |
| Manufacturer | Asrock |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
| Back Panel Connectors | - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-A Port (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Chipset | Z490 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | Mini-ITX |
| Interface | DDR4: 2, SATA3: 4 |
| Internal Ports / Inputs | - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x CPU Fan Connector (4-pin)*** - 1 x Chassis Fan Connector (4-pin)**** - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *Support in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ****The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Memory Frequency | 4400MHz |
| Memory Type | DDR4 |
| Socket | LGA1200 |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* *Supports Intel Optane Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| Wired Communication | - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V) - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Wireless network | - Intel 802.11ac WiFi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II |
| What'S In The Box? | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5 GHz Antennas - 2 x Screws for M.2 Sockets |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard ASRock Z490M-ITX/ac DDR4 LGA1200 |
| Matching SKUs | ID:~39532~, NEW, OC: 33541, TZG: 16770, MPN: Z490M-ITX/ac |
