Motherboard ASRock Z890 Pro RS WiFi White DDR5 LGA1851

Motherboard ASRock Z890 Pro RS WiFi White

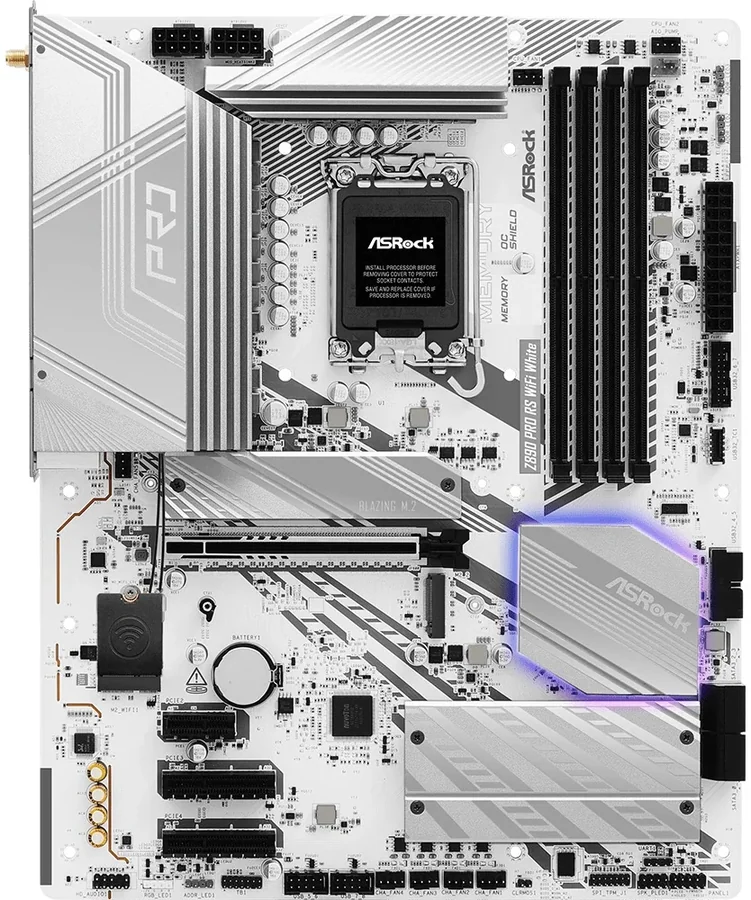

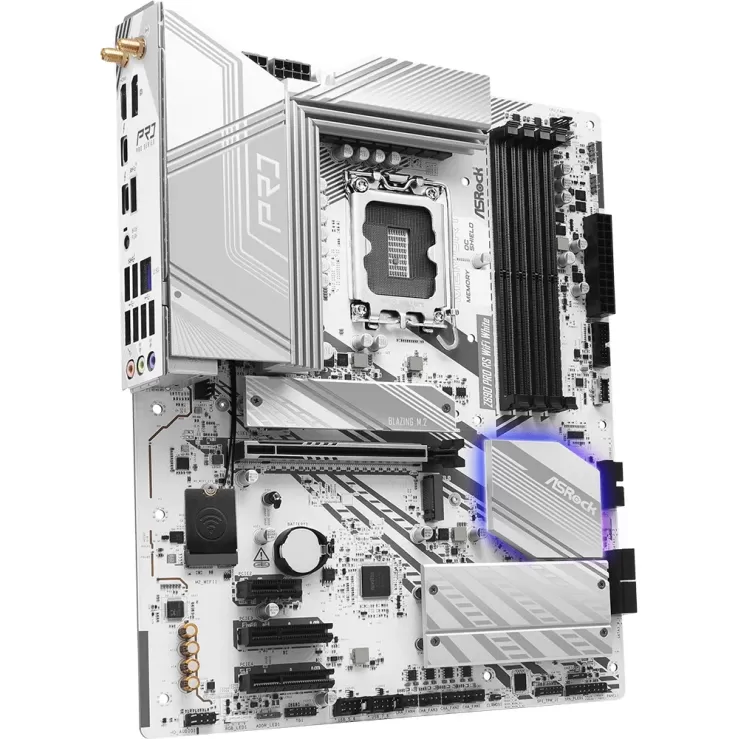

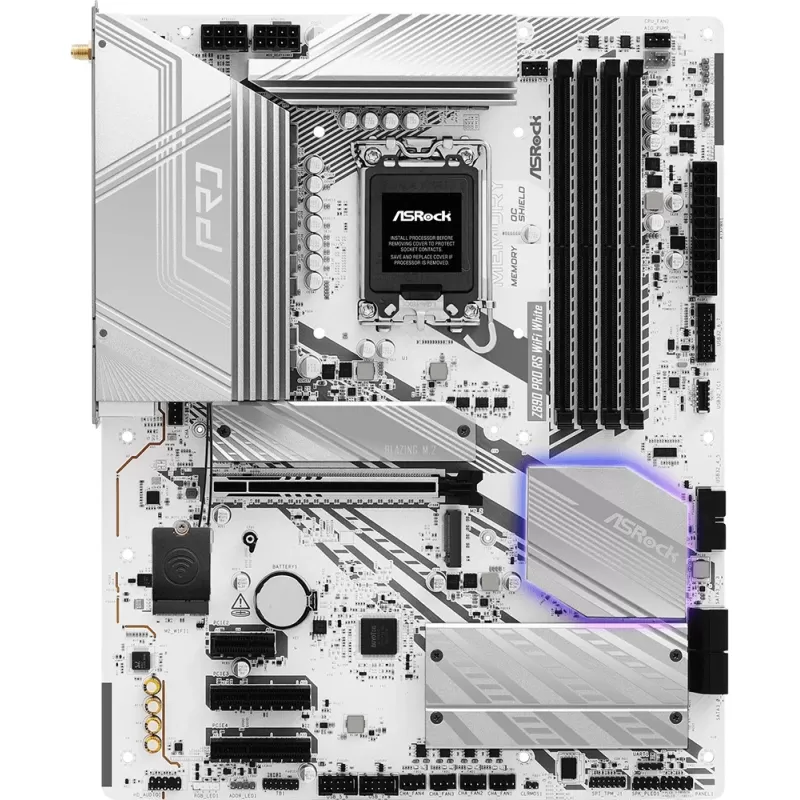

The ASRock Z890 Pro RS WiFi White is an ATX motherboard with the Intel Z890 chipset for Intel Core Ultra (Series 2) processors in the LGA1851 socket. It is the white edition of the Pro RS series, with white and silver heatsinks and covers that match white PC cases.

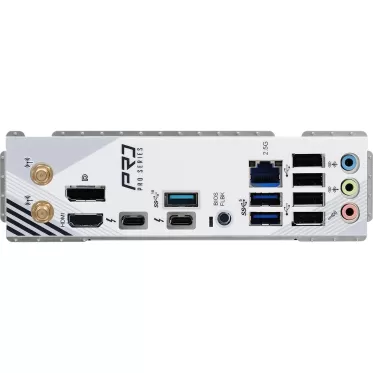

The board supports dual-channel DDR5 up to 256GB, a PCIe 5.0 graphics card and a fast Gen5 M.2 SSD. The rear panel offers two Thunderbolt 4 ports, HDMI and DisplayPort for integrated graphics, 2.5G LAN and a pre-installed Wi-Fi 6E module with Bluetooth 5.3.

Key features

• Intel Core Ultra support - Supports Intel Core Ultra (Series 2) processors in the LGA1851RL-ILM socket on the Z890 chipset, including Intel Turbo Boost Max 3.0 and the integrated NPU for AI acceleration.
• Fast DDR5 memory - Four dual-channel DDR5 slots, up to 256GB and 9066+ MHz with overclocking, with Intel XMP 3.0 support.
• PCIe 5.0 and Gen5 M.2 - A PCIe 5.0 x16 slot for the graphics card, a Blazing M.2 PCIe Gen5x4 slot plus three Gen4x4 M.2 slots, and four SATA3 ports with RAID 0/1/5/10.
• Thunderbolt 4 and fast USB - Two rear Thunderbolt 4 Type-C ports (40Gb/s), a front USB 3.2 Gen2x2 Type-C header (20Gb/s) and additional USB 3.2 Gen2 and Gen1 ports.
• 2.5G LAN and Wi-Fi 6E - Realtek Dragon RTL8125BG 2.5Gb/s Ethernet and an 802.11axe Wi-Fi 6E 2x2 module with Bluetooth 5.3 and two antennas.
• White design and lighting - 2oz copper PCB in a white design, three ARGB headers and one RGB header, plus a BIOS Flashback button for updating the BIOS without a CPU.

Specifications
