| Specification | |
| Revew | Asus H110M-A/M.2Asus H110M-A/M.2 - memory type DDR4, cpu socket LGA1151, chipset H110. Suited for building a PC or upgrading the platform. The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade. Key specifications
What it is forThis product is intended for building a PC or upgrading the platform. Product identificationManufacturer part number: H110M-A/M.2. Use it to confirm that accessories and spare parts match. |
| Review | |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | H110M-A/M.2, 90MB0R60-M0EAY0 |
| Model | H110M-A/M.2 |
| Condition | New |
| Manufacturer | Asus |
| Audio | Realtek ALC887/897 8-Channel High Definition Audio CODEC *2 - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |

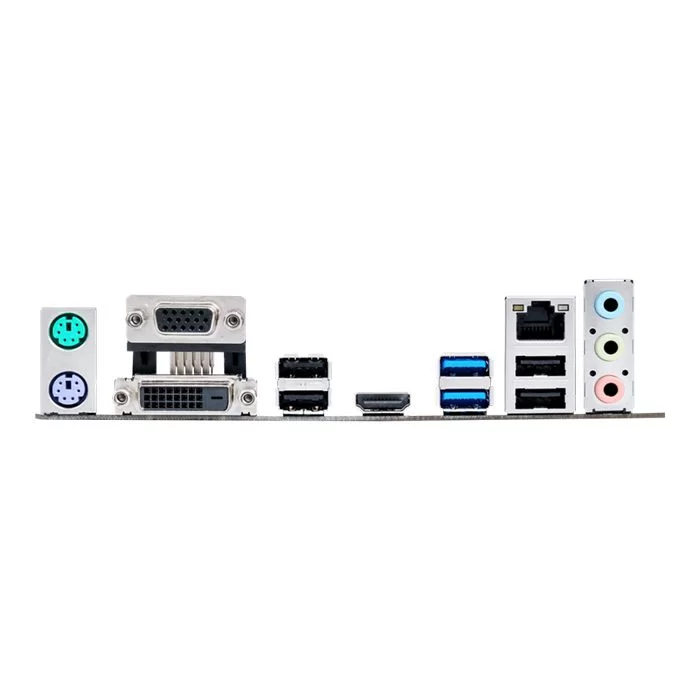

| Back Panel Connectors | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 1 (blue) 4 x USB 2.0 3 x Audio jack(s) |
| Chipset | H110 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | mATX |
| Internal Ports / Inputs | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector |
| Memory Frequency | 2400MHz |
| Memory Type | DDR4 |
| Socket | LGA1151 |
| Storage | Intel H110 chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2 4 x SATA 6Gb/s port(s), Intel Rapid Storage Technology supports*1 |
| Wired Communication | Intel I219V |

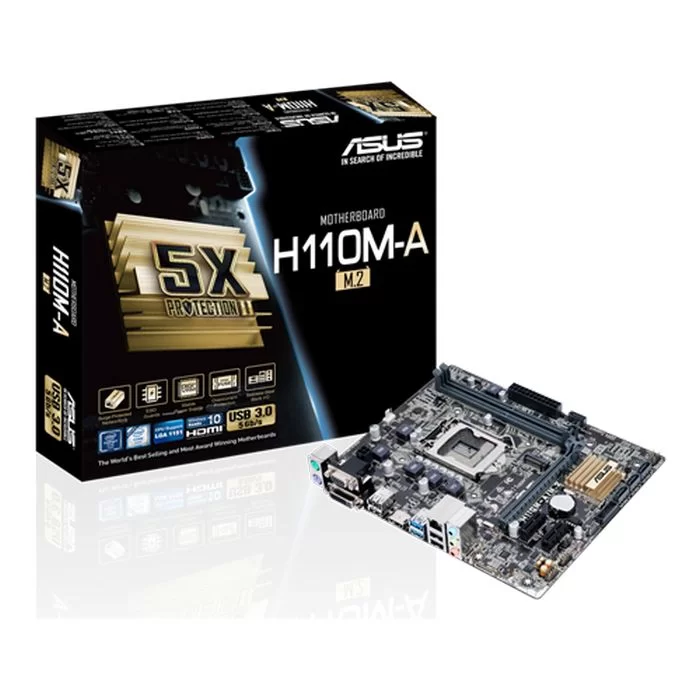

| What'S In The Box? | User´s manual I/O Shield 2 x SATA 3Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD |
| Link To The Manufacturer'S Website | |

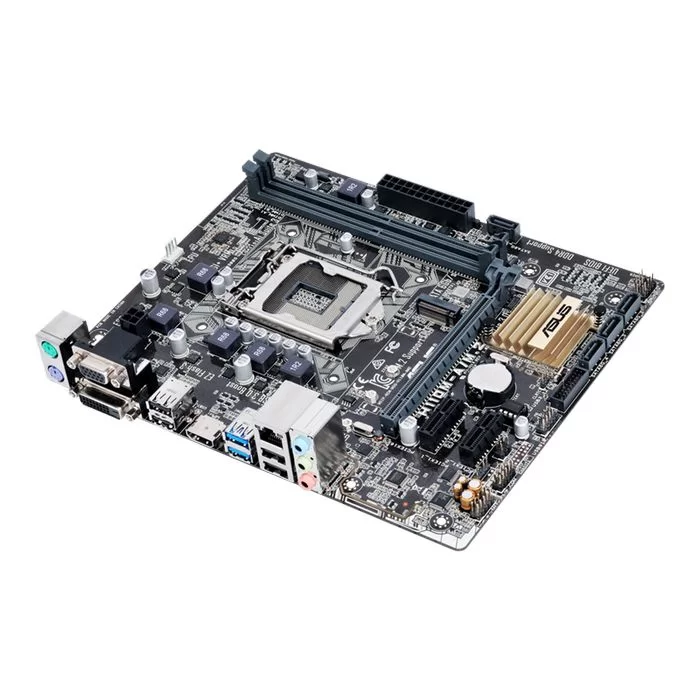

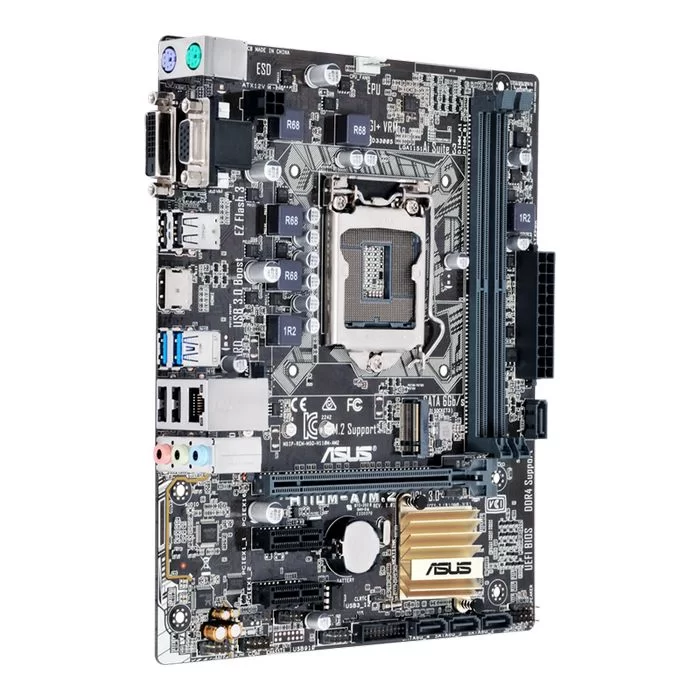

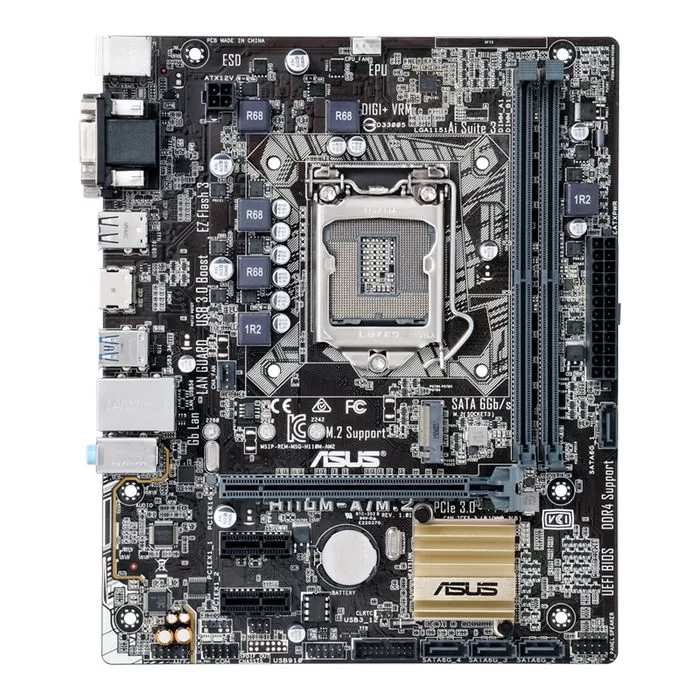

| Product Link | Motherboard Asus H110M-A/M.2 DDR4 LGA1151 |
| Matching SKUs | ID:~43040~, NEW, OC: 33575, CD: 90MB0R60-M0EAY0, MPN: H110M-A/M.2, MPN2: 90MB0R60-M0EAY0 |
