| Specification | |
| Revew | Asus PRIME B560M-AAsus PRIME B560M-A - memory type DDR4, cpu socket LGA1200, chipset B560. Suited for building a PC or upgrading the platform. The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade. Key specifications
What it is forThis product is intended for building a PC or upgrading the platform. Product identificationManufacturer part number: PRIME B560M-A. Use it to confirm that accessories and spare parts match. |
| Review | |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | PRIME B560M-A, 90MB17A0-M0EAY0 |
| Model | PRIME B560M-A |
| Condition | New |
| Manufacturer | Asus |
| Audio | ALC887/897 - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers |

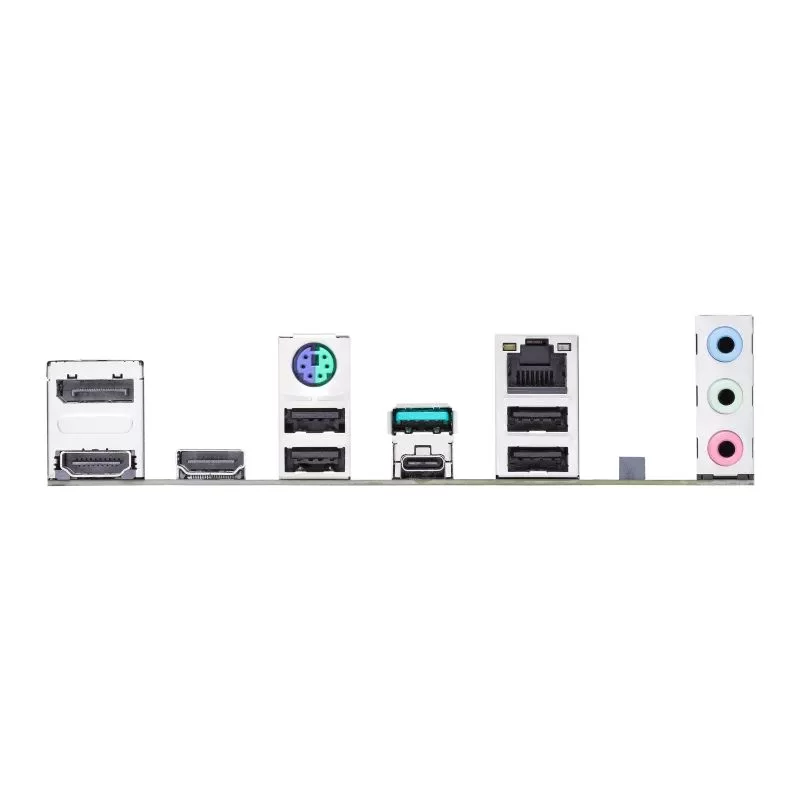

| Back Panel Connectors | 2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 2 x HDMI™ port 1 x Intel® I219-V 1Gb Ethernet port 1 x V-M.2 slot (Key E) 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Chipset | B560 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | Micro ATX |
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Memory | DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. |
| Memory Type | DDR4 |
| Socket | LGA1200 |
| Storage | upports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th&Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th&Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports |
| Wired Communication | 1 x Intel I219-V 1Gb Ethernet port |

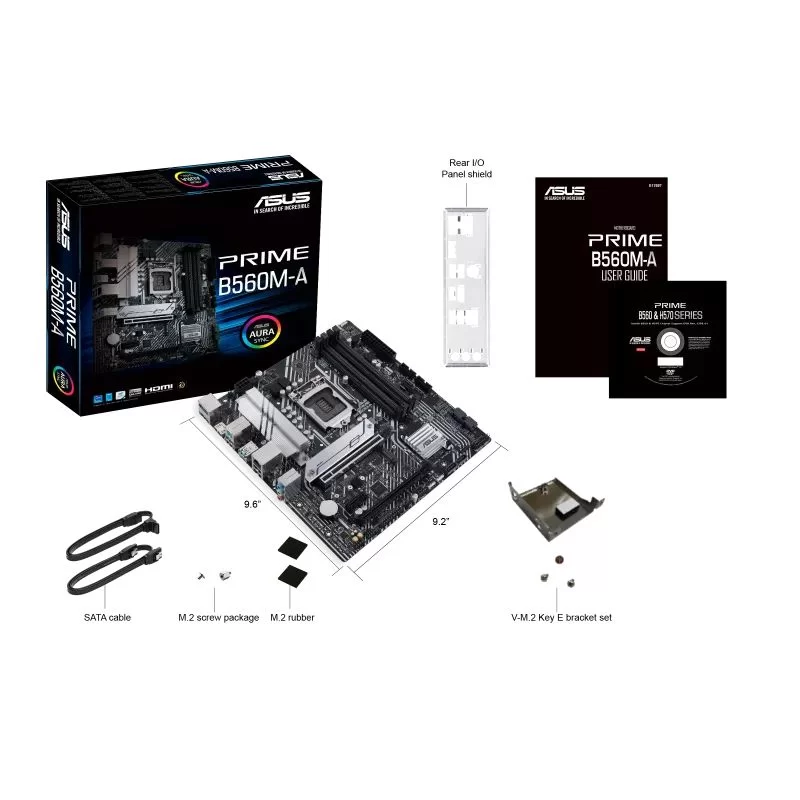

| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x Vertical M.2 Key E bracket set Installation Media 1 x Support DVD Documentation 1 x User manual |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard Asus PRIME B560M-A DDR4 LGA1200 |
| Matching SKUs | ID:~47383~, NEW, OC: 26269, EASX: 90MB17A0-M0EAY0, VSL: PRIME B560M-A, MPN: PRIME B560M-A, MPN2: 90MB17A0-M0EAY0 |
