| Specification | |
| Revew | Asus PRIME H510M-AAsus PRIME H510M-A - memory type DDR4, cpu socket LGA1200, chipset H510. Suited for building a PC or upgrading the platform. The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade. Key specifications
What it is forThis product is intended for building a PC or upgrading the platform. Product identificationManufacturer part number: PRIME H510M-A. Use it to confirm that accessories and spare parts match. |
| Review | |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | PRIME H510M-A, 90MB17C0-M0EAY0 |
| Model | PRIME H510M-A |
| Condition | New |
| Manufacturer | Asus |
| Audio | ALC887/897 Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

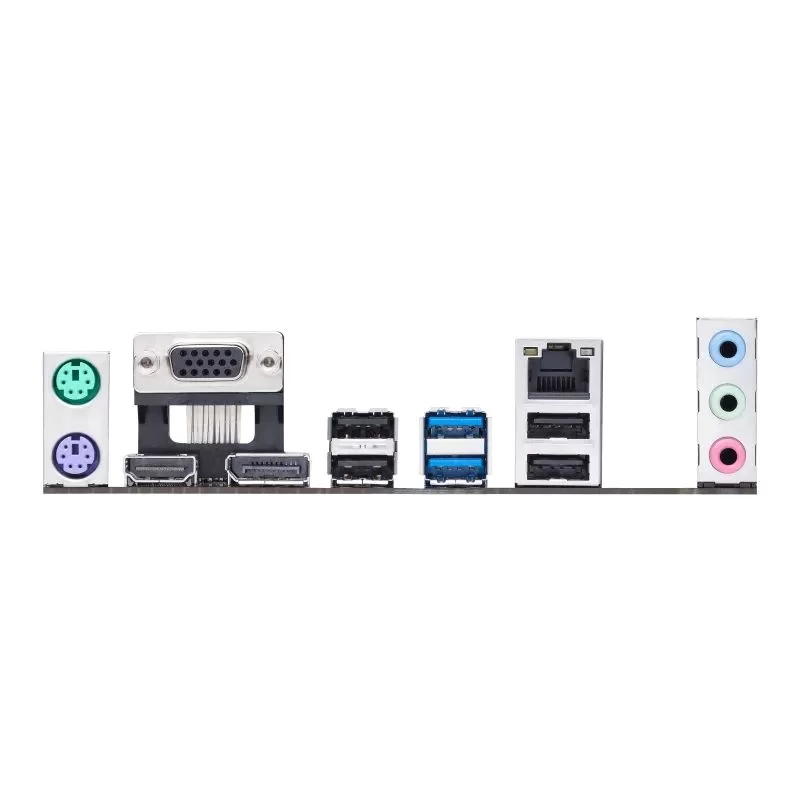

| Back Panel Connectors | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI™ port 1 x Intel® I219-V 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Chipset | H510 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | Micro ATX |
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Memory | DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. |
| Memory Type | DDR4 |
| Socket | LGA1200 |
| Storage | Intel® H510 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used. |
| Wired Communication | Intel I219-V 1Gb Ethernet port |

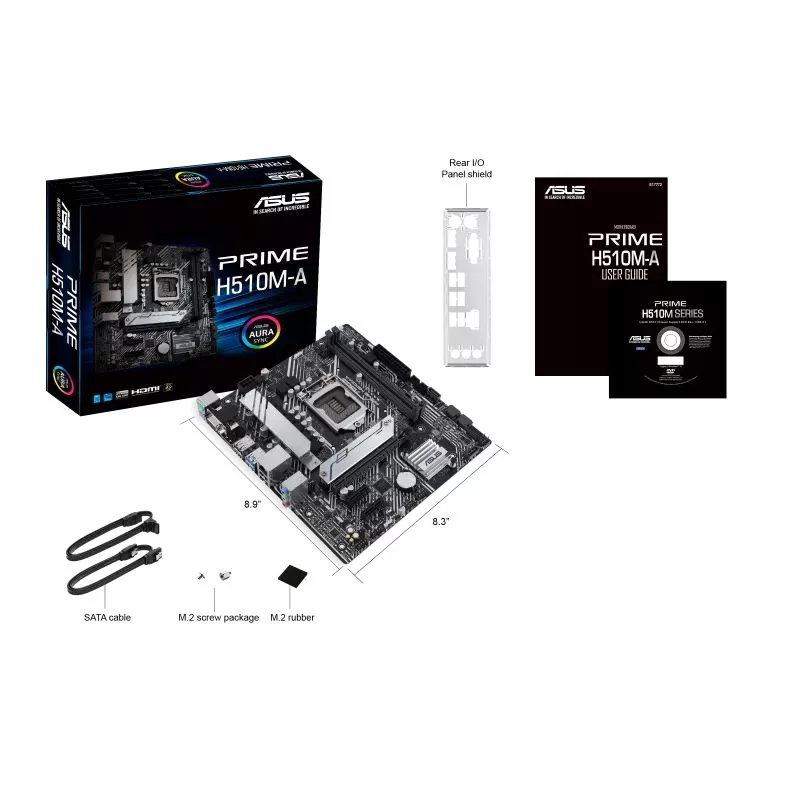

| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual |
| Link To The Manufacturer'S Website | |

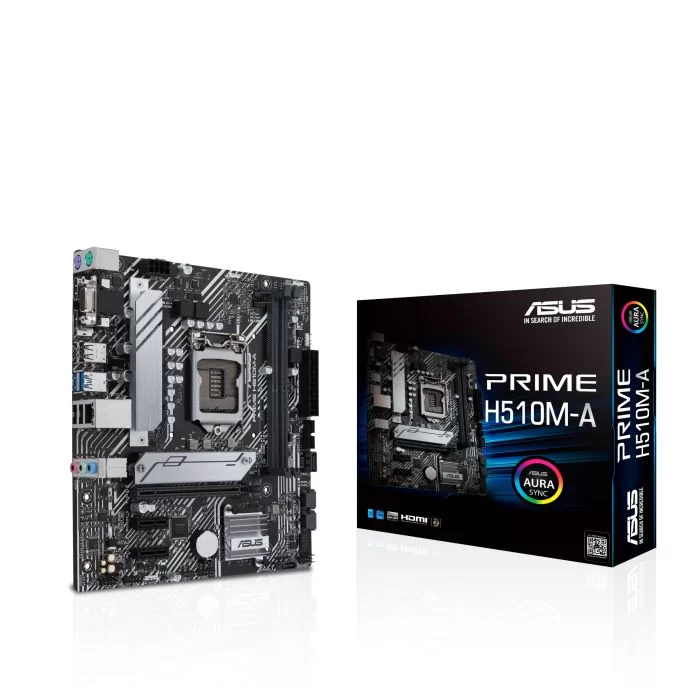

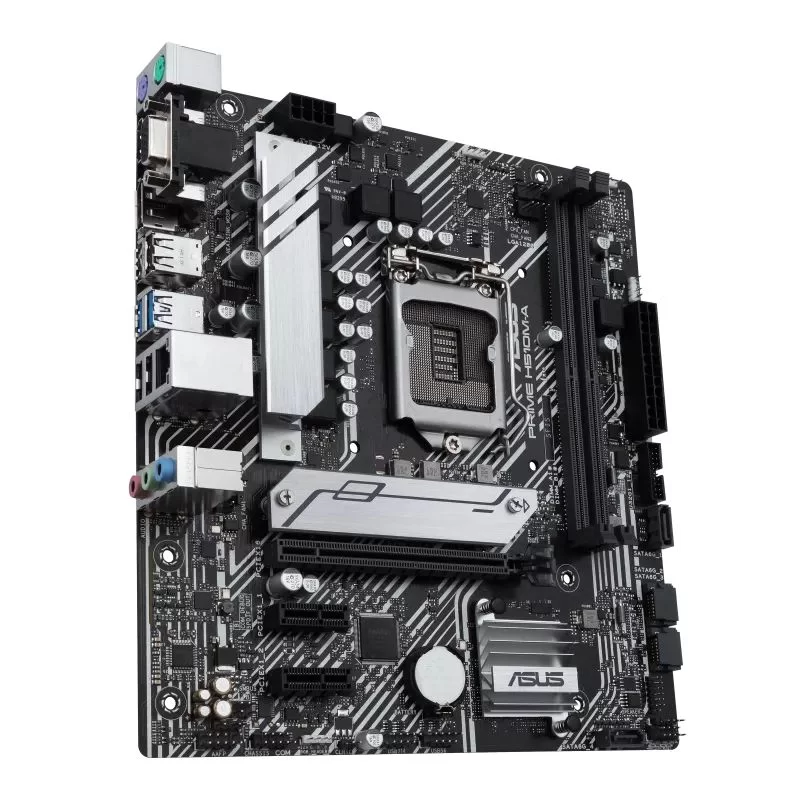

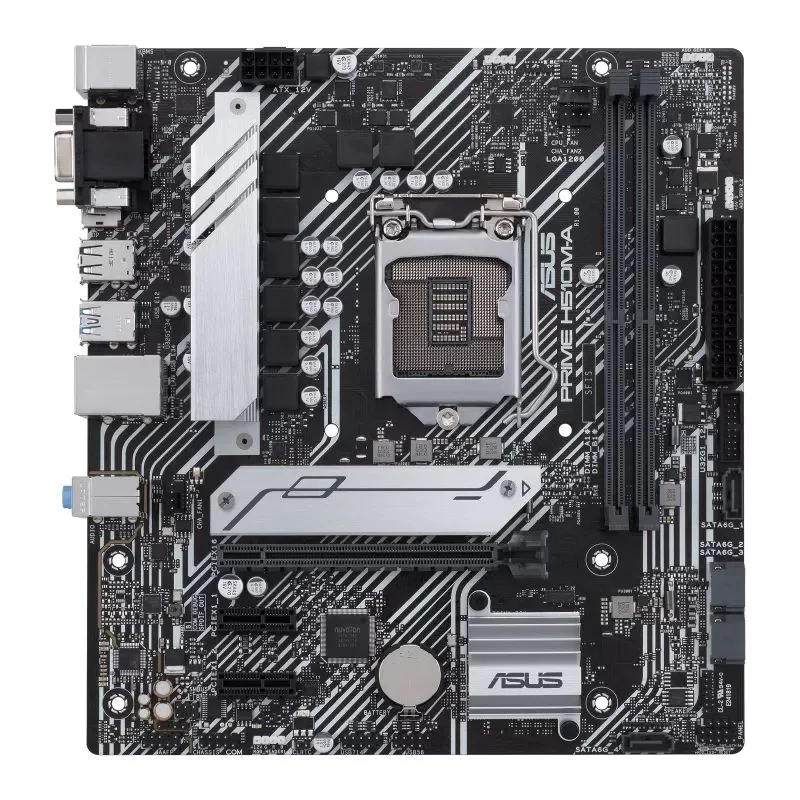

| Product Link | Motherboard Asus PRIME H510M-A DDR4 LGA1200 |
| Matching SKUs | ID:~47374~, NEW, OC: 33703, EASX: 90MB17C0-M0EAY0, VSL: 90MB17C0-M0EAY0, MPN: PRIME H510M-A, MPN2: 90MB17C0-M0EAY0 |
