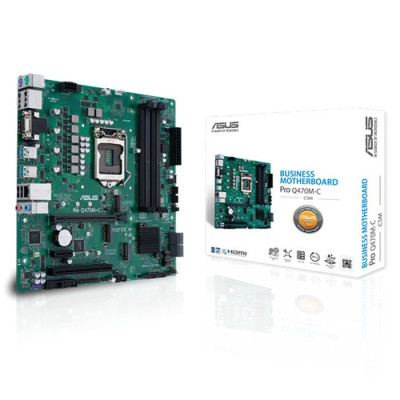

* The picture is for illustration only
Pick up and delivery options:
- Collection from the Ashdod branch - 0₪
- PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
- Home delivery - 45 shekels - over 2999₪ - Free Delivery
- Self-collection from the importer - 0₪ - contact us for pick up option
*Except for cases of abnormal size/weight
Payment options:
- Up to 6 interest-free Credit Card (7-36 with interest) payments through a website, phone, or Ashdod branch
- Bank transfer (Deferred payment not accepted), Bit, PayBox
- Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
- PayPal - Only Shipments With a Tracking Number
| Specification | |
| Revew | Asus Pro Q470M-C/CSMAsus Pro Q470M-C/CSM - memory type DDR4, cpu socket LGA1200, chipset Q470. Suited for building a PC or upgrading the platform. The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade. Key specifications
What it is forThis product is intended for building a PC or upgrading the platform. Product identificationManufacturer part number: Pro Q470M-C/CSM. Use it to confirm that accessories and spare parts match. |
| Review | |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | Pro Q470M-C/CSM, 90MB1380-M0EAYC |
| Model | Pro Q470M-C/CSM |
| Condition | New |
| Manufacturer | Asus |
| 1. 2xDDR4 DIMM sockets supporting up to 32GB of system memory | 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory OptiMem * 10th Gen Intel Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC *2 - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| Back Panel Connectors | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 2 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 2 (teal blue) 2 x USB 2.0 3 x Audio jack(s) |
| Chipset | Q470 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | mATX |
| Internal Ports / Inputs | 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x MONO out header 1 x USB 3.2 Gen 1 front panel TypeC connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x LPT header 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x DIS ME jumper 1 x System panel connector 2 x COM port header 1 x LPC Debug header 1 x Speaker connector |
| Memory Frequency | 2933MHz |
| Memory Type | DDR4 DIMM |
| Socket | LGA1200 |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel Q470 Chipset : 1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)*1 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
| Wired Communication | Intel I219-LM ASUS LANGuard |
| What'S In The Box? | User´s manual 1 x ACC Express Activation Key Card I/O Shield 2 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard Asus Pro Q470M-C/CSM DDR4 DIMM LGA1200 |
| Matching SKUs | ID:~43073~, NEW, OC: 33582, CD: 90MB1380-M0EAYC, MPN: Pro Q470M-C/CSM, MPN2: 90MB1380-M0EAYC |
