Short review: Asus ProArt B760-CREATOR WIFI - memory 192GB, memory type DDR5, cpu socket LGA1700, chipset B760. Suited for building a PC or upgrading the platform., Manufacturer: Asus, Socket: LGA1700, Chipset: B760, Memory Volume: 192GB, Memory Type: DDR5 DIMM, Condition: New, SKU: 56600

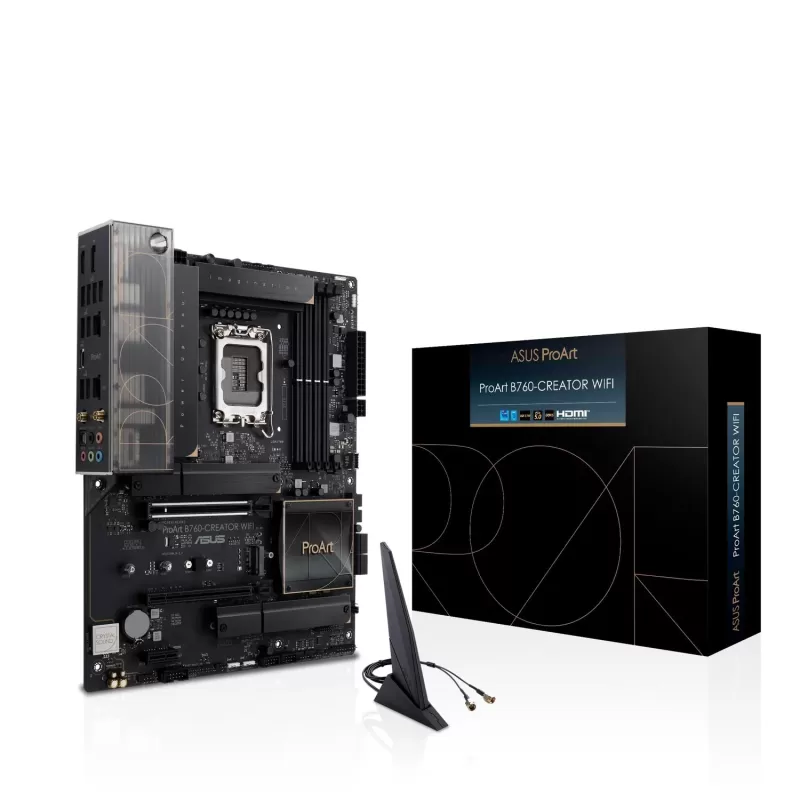

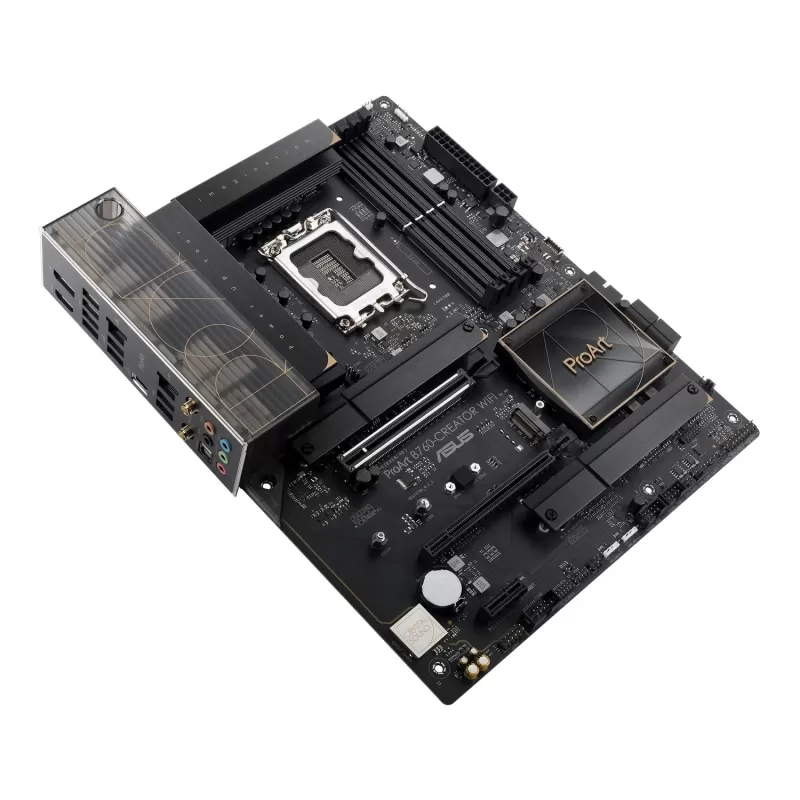

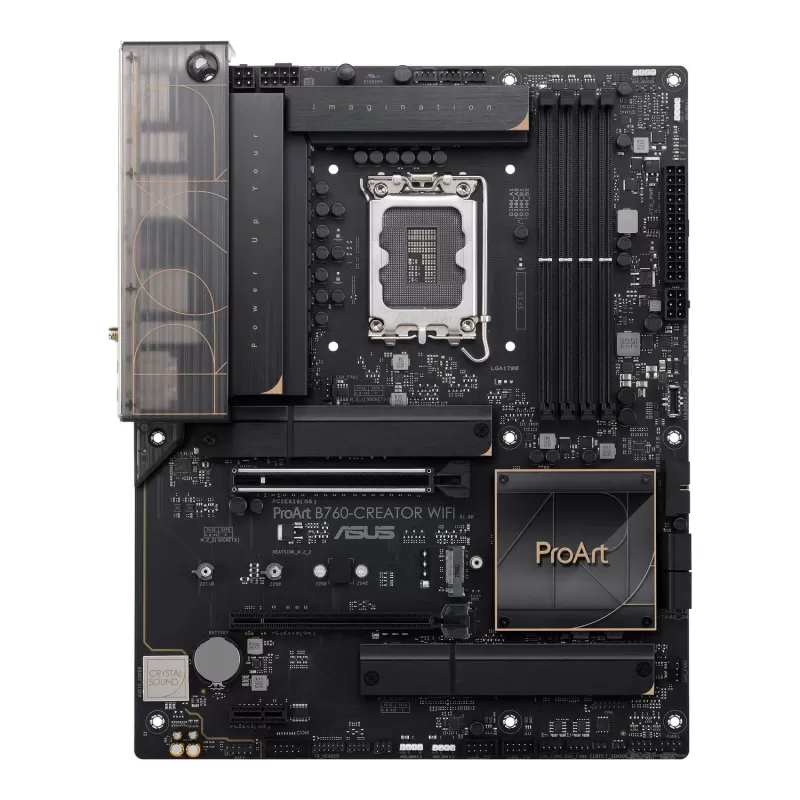

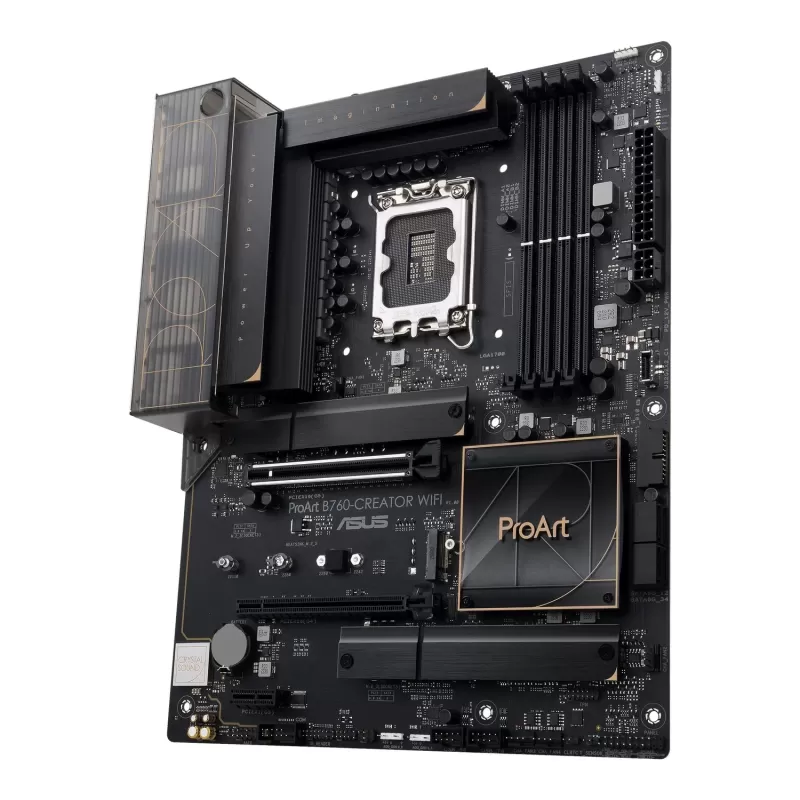

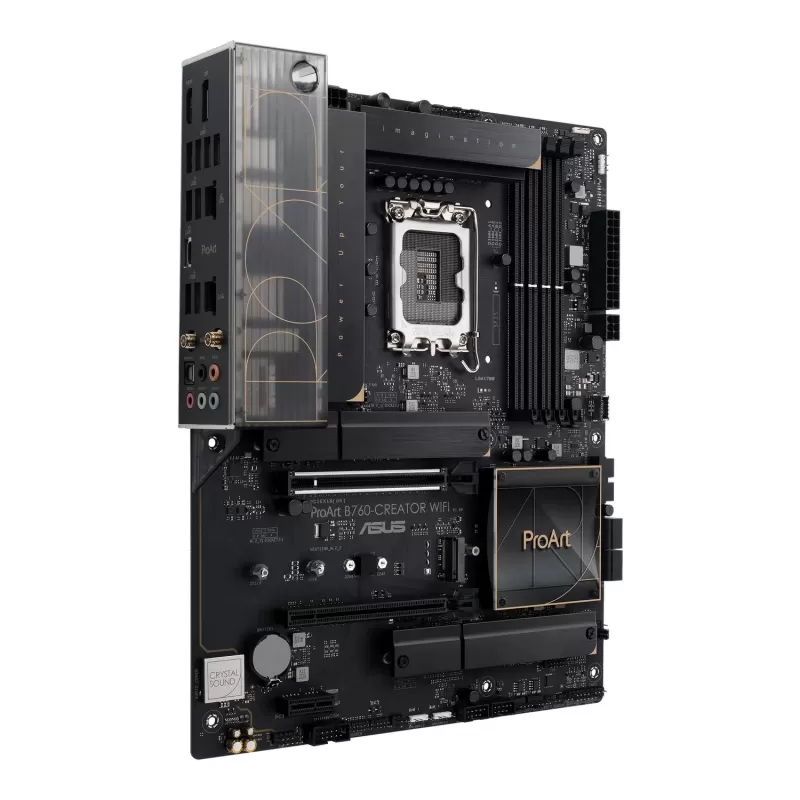

Motherboard Asus ProArt B760-CREATOR WIFI DDR5 DIMM LGA1700
Pick up and delivery options:
- Collection from the Ashdod branch - 0₪
- PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
- Home delivery - 45 shekels - over 2999₪ - Free Delivery
- Self-collection from the importer - 0₪ - contact us for pick up option
*Except for cases of abnormal size/weight
Payment options:
- Up to 6 interest-free Credit Card (7-36 with interest) payments through a website, phone, or Ashdod branch
- Bank transfer (Deferred payment not accepted), Bit, PayBox
- Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
- PayPal - Only Shipments With a Tracking Number
| Specification | |
| Revew | Asus ProArt B760-CREATOR WIFIAsus ProArt B760-CREATOR WIFI - memory 192GB, memory type DDR5, cpu socket LGA1700, chipset B760. Suited for building a PC or upgrading the platform. The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade. Key specifications
What it is forThis product is intended for building a PC or upgrading the platform. Product identificationManufacturer part number: 90MB1FY0-M0EAY0. Use it to confirm that accessories and spare parts match. |
| Review | |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | ProArt B760-CREATOR WIFI, 90MB1FY0-M0EAY0 |
| Model | ProArt B760-CREATOR WIFI |
| Condition | New |
| Manufacturer | Asus |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |

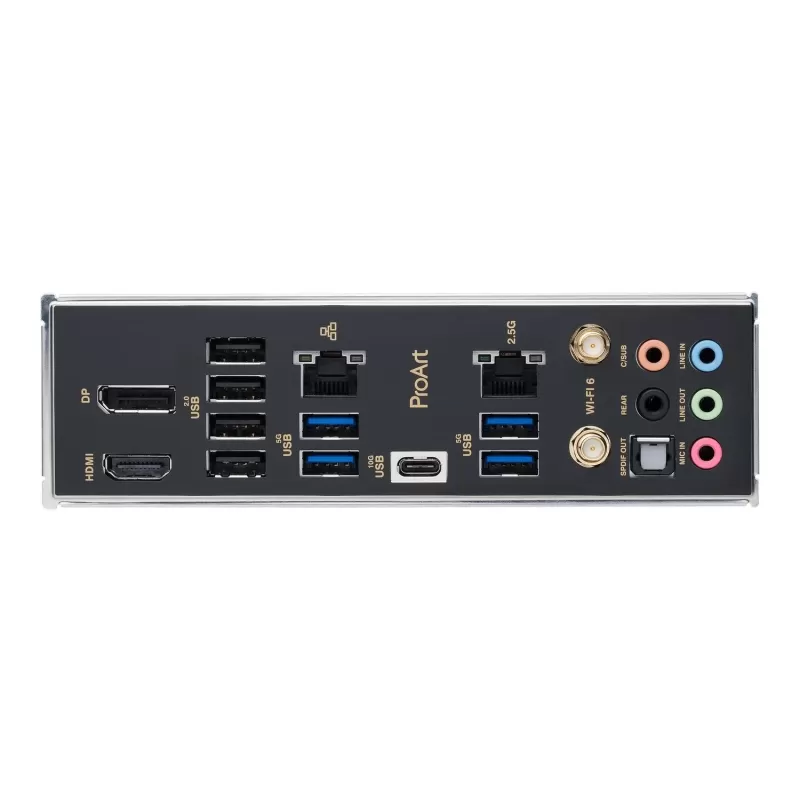

| Back Panel Connectors | 1 x USB 3.2 Gen 2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM&port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 1 x Intel®&1Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Chipset | B760 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | ATX |
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PD_12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C®&with 60W PD/QC4+) 1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ header |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel®&Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ |
| Memory Type | DDR5 DIMM |
| Memory Volume | 192GB |
| Socket | LGA1700 |
| Storage | Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports* Intel®&13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel®&13th & 12th Gen processors support PCIe 4.0 x4 mode. Intel®&B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel®&Rapid Storage Technology supports SATA RAID 0/1/5/10. ** M.2_2 slot shares bandwidth with PCIe X1 and WiFi module and will run at PCIe 3.0 x2 by default. You need to set M.2_2 running at PCIe 3.0 x4 by manually enabled in BIOS. |
| Wired Communication | 1 x Realtek 2.5Gb Ethernet 1 x Intel®&1Gb Ethernet ASUS LANGuard |
| Wireless network | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |

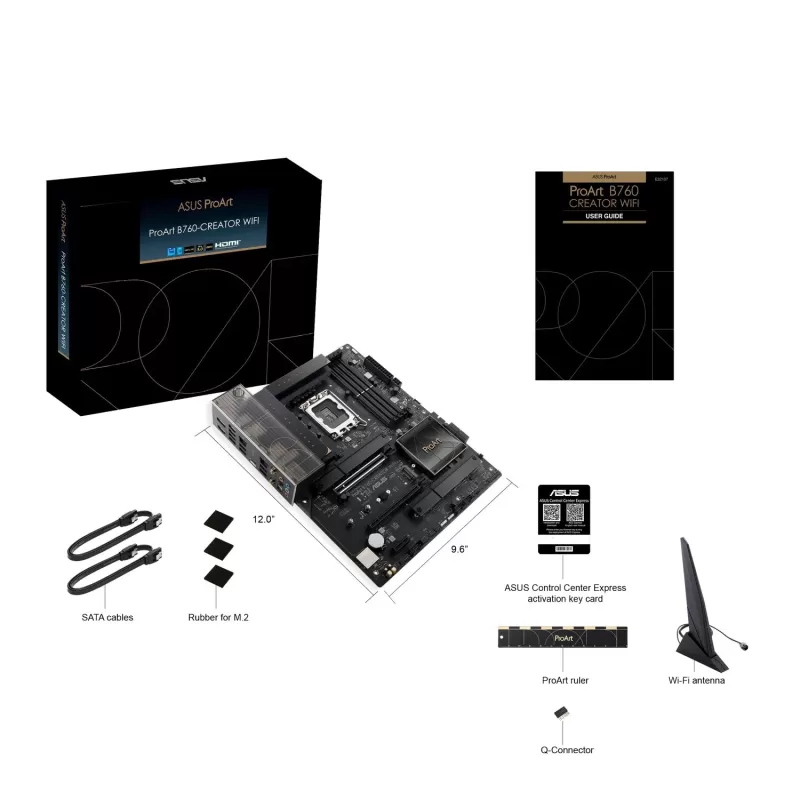

| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 2 x M.2 Rubber packages 1 x ProArt ruler 1 x Q-connector Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard Asus ProArt B760-CREATOR WIFI DDR5 DIMM LGA1700 |
| Matching SKUs | ID:~56600~, NEW, OC: 36423, VSL: 90MB1FY0-M0EAY0, MPN: ProArt B760-CREATOR WIFI, MPN2: 90MB1FY0-M0EAY0 |
