Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700

Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Out of stock
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700

* The picture is for illustration only

Short review: Asus ProArt Z690-CREATOR WIFI - memory 128GB, memory type DDR5, cpu socket LGA1700, chipset Z690. Suited for building a PC or upgrading the platform., Manufacturer: Asus, Socket: LGA1700, Chipset: Z690, Memory Volume: 128GB, Memory Type: DDR5, Condition: New, SKU: 48181
Motherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: Out of stock
    • Print:
    • Brand: Asus
    • SKU: 48181
    • MPN: ProArt Z690-CREATOR WIFI
    Specification
    Revew

    Asus ProArt Z690-CREATOR WIFI

    Asus ProArt Z690-CREATOR WIFI - memory 128GB, memory type DDR5, cpu socket LGA1700, chipset Z690. Suited for building a PC or upgrading the platform.

    The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade.

    Key specifications

    • Memory: 128GB
    • Memory type: DDR5
    • CPU socket: LGA1700
    • Chipset: Z690

    What it is for

    This product is intended for building a PC or upgrading the platform.

    Product identification

    Manufacturer part number: ProArt Z690-CREATOR WIFI. Use it to confirm that accessories and spare parts match.

    Review
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberProArt Z690-CREATOR WIFI, 90MB19H0-M0EAY0
    ModelProArt Z690-CREATOR WIFI
    ConditionNew
    ManufacturerAsus
    Audio

    Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

    - Impedance sense for front and rear headphone outputs

    - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

    - Supports up to 32-Bit/192 kHz playback*"

    Audio Features

    - Power pre-regulator reduces power input noise to ensure consistent performance

    - Premium Japanese audio capacitors

    - Dedicated audio PCB layers

    - Audio cover

    - Unique de-pop circuit

    * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

    ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

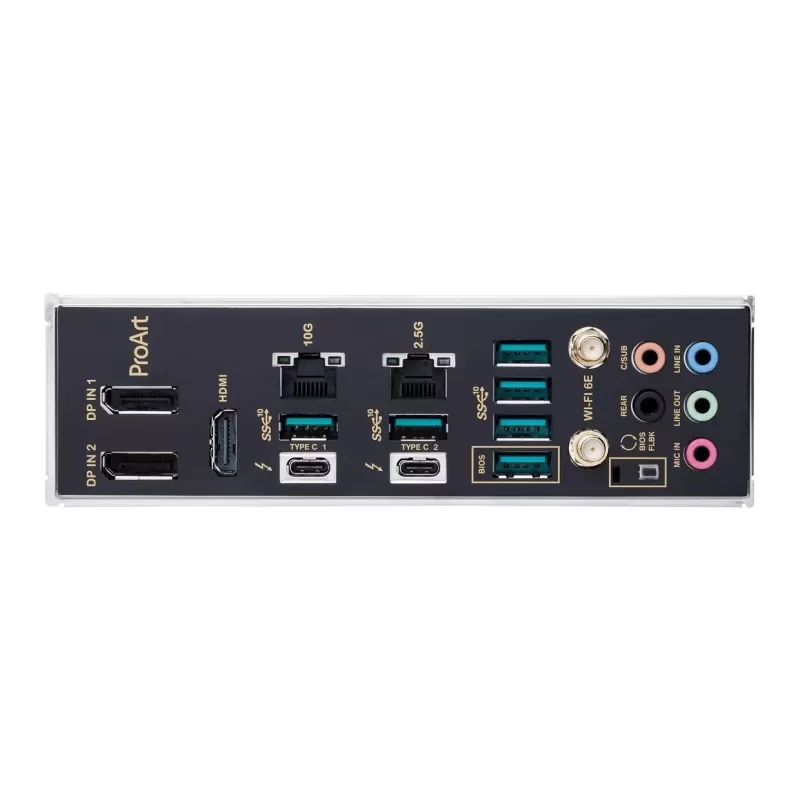

    Back Panel Connectors

    2 x Thunderbolt™ 4 USB Type-C® port(s)

    6 x USB 3.2 Gen 2 port(s) (6 x Type-A)

    2 x DisplayPort (Input only)

    1 x HDMI® port

    1 x ASUS Wi-Fi Module

    1 x Marvell® AQtion 10Gb Ethernet port

    1 x Intel® 2.5Gb Ethernet port

    5 x Audio jacks

    1 x BIOS FlashBack™ button

    ChipsetZ690
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationATX
    Internal Ports / Inputs

    Fan and Cooling related

    1 x 4-pin CPU Fan header(s)

    1 x 4-pin CPU OPT Fan header(s)

    1 x 4-pin AIO Pump header(s)

    5 x 4-pin Chassis Fan header(s)

    Power related

    1 x 24-pin Main Power connector

    1 x 8-pin +12V Power connector

    1 x 4-pin +12V Power connector

    Storage related

    4 x M.2 slots (Key M)

    8 x SATA 6Gb/s ports

    USB

    1 x USB 3.2 Gen 2x2 (support(s) USB Type-C®)

    1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

    2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

    Miscellaneous

    3 x Addressable Gen 2 header(s)

    1 x AURA RGB header(s)

    1 x Clear CMOS header

    1 x COM Port header

    1 x CPU Over Voltage jumper

    1 x Front Panel Audio header (AAFP)

    1 x M.2 slot (Key E)

    1 x Speaker header

    1 x SPI TPM header (14-1pin)

    1 x 20-3 pin System Panel header with Chassis intrude function

    1 x RTC Battery header

    1 x Thermal Sensor header

    Memory

    4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MT/s Non-ECC, Un-buffered Memory*

    Dual Channel Memory Architecture

    Supports Intel® Extreme Memory Profile (XMP)

    OptiMem II

    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

    Memory TypeDDR5
    Memory Volume128GB
    SocketLGA1700
    Storage

    Supports 4 x M.2 slots and 8 x SATA 6Gb/s ports

    Intel® 12th Gen Processors

    M.2_1 slot (Key M), type 2242/2260/2280/22110

    - Intel® 12th Gen processors support PCIe 4.0 x4 mode.

    Intel® Z690 Chipset**

    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)***

    8 x SATA 6Gb/s ports***

    * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

    ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

    *** M.2_4 slot shares bandwidth with SATA6G_5~8. SATA6G5~8 will be suspended once either a SATA or NVMe device is detected at M.2_4.

    Wired Communication

    1 x Intel® 2.5Gb Ethernet
    1 x Marvell® 10Gb Ethernet

    ASUS LANGuard

    Wireless network

    Wi-Fi 6E

    2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

    Supports 2.4/5/6GHz frequency band*

    Bluetooth v5.2 hardware ready**

    * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

    ** Bluetooth v5.2 function will be ready in Windows 11 or later.

    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Asus ProArt Z690-CREATOR WIFI DDR5 LGA1700
    Matching SKUsID:~48181~, NEW, OC: 33631, VSL: 90MB19H0-M0EAY0, MPN: ProArt Z690-CREATOR WIFI, MPN2: 90MB19H0-M0EAY0
