| Specification | |
| Revew | Asus Q87M-EAsus Q87M-E - memory type DDR3, cpu socket LGA1150, chipset Q87. Suited for building a PC or upgrading the platform. The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade. Key specifications
What it is forThis product is intended for building a PC or upgrading the platform. Product identificationManufacturer part number: Q87M-E. Use it to confirm that accessories and spare parts match. |
| Review | |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | Q87M-E, 90MB0FS0-M0ECY5 |
| Model | Q87M-E |
| Condition | New |
| Manufacturer | Asus |
| 1. 2xDDR4 DIMM sockets supporting up to 32GB of system memory | 4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Audio | Realtek ALC887-VD 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function |
| Back Panel Connectors | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 4 x USB 2.0 3 x Audio jack(s) |
| Chipset | Q87 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | mATX |
| Internal Ports / Inputs | 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x LPT1 header 2 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) |
| Memory Frequency | 1600MHz |
| Memory Type | DDR3 DIMM |
| Socket | LGA1150 |
| Storage | Intel Q87 chipset : 6 x SATA 6Gb/s port(s), yellow Support Raid 0, 1, 5, 10 |
| Wired Communication | Intel I217LM, 1 x Gigabit LAN Controller(s) |
| What'S In The Box? | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) |
| Link To The Manufacturer'S Website | |

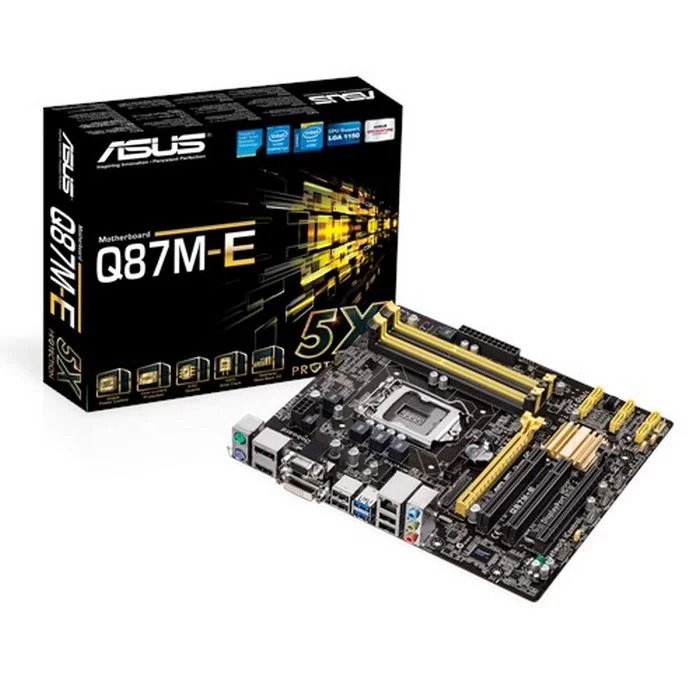

| Product Link | Motherboard Asus Q87M-E DDR3 DIMM LGA1150 |
| Matching SKUs | ID:~43076~, NEW, OC: 33583, CD: 90MB0FS0-M0ECY5, MPN: Q87M-E, MPN2: 90MB0FS0-M0ECY5 |
