Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200

Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200
Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200
Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200
Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200
Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200
Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200
Out of stock
Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200
Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200
Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200
Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200
Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200
Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200

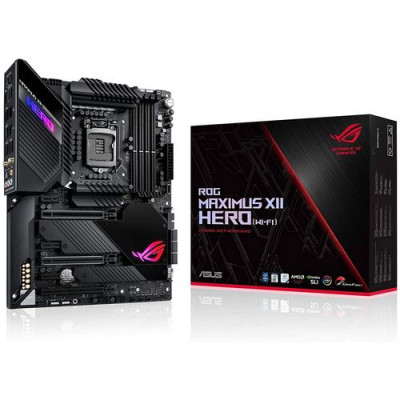

* The picture is for illustration only

Short review: Asus ROG MAXIMUS XII HERO (WI-FI) - memory type DDR4, cpu socket LGA1200, chipset Z490. Suited for building a PC or upgrading the platform., Manufacturer: Asus, Memory Frequency: 4800MHz, Socket: LGA1200, Chipset: Z490, Memory Type: DDR4, Condition: New, SKU: 38176
Motherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: Out of stock
    • Print:
    • Brand: Asus
    • SKU: 38176
    • MPN: ROG MAXIMUS XII HERO (WI-FI)
    Specification
    Revew

    Asus ROG MAXIMUS XII HERO (WI-FI)

    Asus ROG MAXIMUS XII HERO (WI-FI) - memory type DDR4, cpu socket LGA1200, chipset Z490. Suited for building a PC or upgrading the platform.

    The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade.

    Key specifications

    • Memory type: DDR4
    • CPU socket: LGA1200
    • Chipset: Z490

    What it is for

    This product is intended for building a PC or upgrading the platform.

    Product identification

    Manufacturer part number: ROG MAXIMUS XII HERO (WI-FI). Use it to confirm that accessories and spare parts match.

    Review
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberROG MAXIMUS XII HERO (WI-FI), 90MB12R0-M0EAY0
    ModelROG MAXIMUS XII HERO (WI-FI)
    ConditionNew
    ManufacturerAsus
    Audio
    ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220*6
    - Impedance sense for front and rear headphone outputs
    - Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - ESS ES9023 DAC + RC4580 OP AMP
    - Supports up to 32-Bit/192kHz playback
    Audio Feature :
    - SupremeFX Shielding Technology
    - Gold-plated jacks
    - Optical S/PDIF out port(s) at back panel
    - Premium Japanese audio capacitors
    - Audio Cover

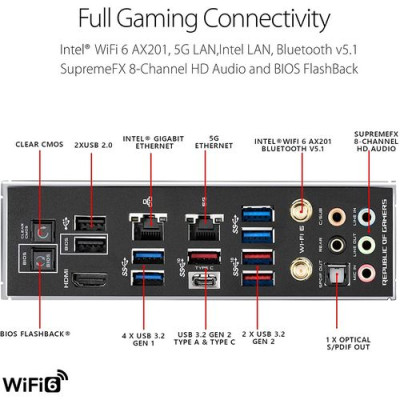

    Back Panel Connectors
    1 x Marvell AQtion AQC111C 5Gb Ethernet
    1 x Intel I219-V 1Gb Ethernet
    1 x HDMI
    4 x USB 3.2 Gen 2
    4 x USB 3.2 Gen 1
    2 x USB 2.0
    1 x Optical S/PDIF out
    1 x Clear CMOS button(s)
    1 x USB BIOS FlashBack Button(s)
    1 x ASUS Wi-Fi Module
    5 x Gold-plated audio jacks
    ChipsetZ490
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationATX
    InterfaceDDR4: 4, SATA3: 6
    Internal Ports / Inputs

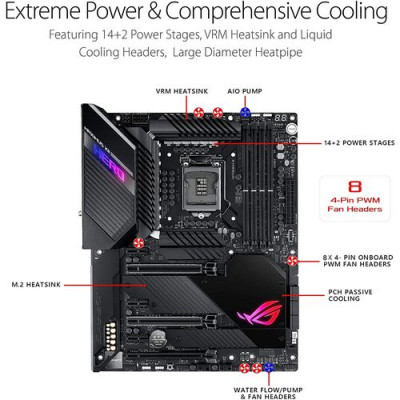

    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x H_AMP fan connector
    1 x W_PUMP+ connector
    1 x W_IN header
    1 x W_OUT header
    1 x W_FLOW header
    1 x AAFP connector

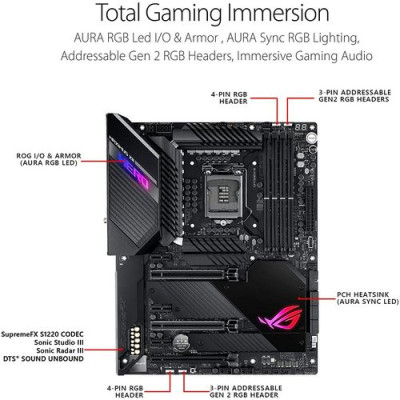

    2 x Aura RGB Strip Headers
    2 x Addressable Gen 2 header(s)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    3 x M.2 Socket 3
    6 x SATA 6Gb/s connector(s)
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Thermal sensor connector(s)
    1 x ReTry button
    1 x System panel connector
    1 x USB 3.2 Gen 2 front panel connector
    1 x Speaker connector
    1 x Start button
    1 x FlexKey button
    Memory Frequency4800MHz
    Memory TypeDDR4
    SocketLGA1200

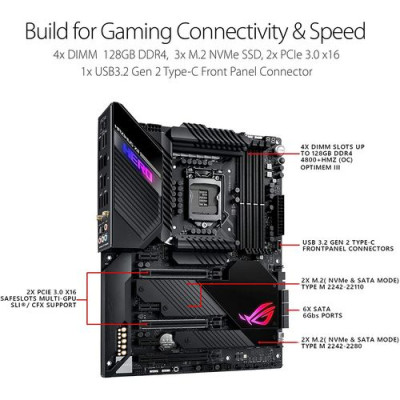

    Storage
    Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel Z490 Chipset :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*4
    1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 5, 10
    Intel Optane Memory Ready
    Wired Communication
    Intel I219-V 1Gb Ethernet
    Marvell AQtion AQC111C 5Gb Ethernet
    ASUS LANGuard
    Wireless network
    Intel Wi-Fi 6 AX201
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
    Supports up to 2.4Gbps max data rate
    Supports dual band frequency 2.4/5 GHz
    Supports channel bandwidth: HT20/HT40/HT80/HT160
    Supports CNVI interface

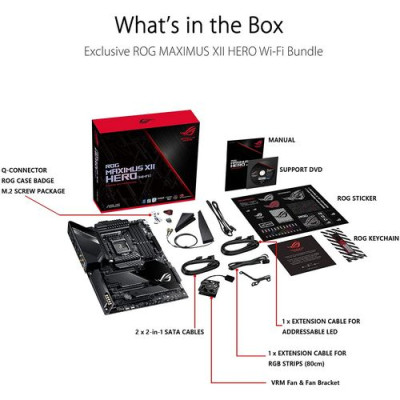

    What'S In The Box?
    User's manual
    Addressable LED extension cable
    1 x ROG logo plate sticker
    4 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
    1 x ROG big sticker
    1 x Q-Connector
    1 x Wi-Fi Antenna(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x ROG Thank you card
    2 x M.2 SSD screw package(s)
    2 x M.2 Rubber Package(s)
    1 ROG key chain
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Asus ROG MAXIMUS XII HERO (WI-FI) DDR4 LGA1200
    Matching SKUsID:~38176~, NEW, OC: 33611, EASX: 90MB12R0-M0EAY0, VSL: MAXIMUS XII HERO WIFI, CD: 90MB12R0-M0EAY0, MPN: ROG MAXIMUS XII HERO (WI-FI), MPN2: 90MB12R0-M0EAY0
