Short review: Asus ROG STRIX Z490-H GAMING - memory type DDR4, cpu socket LGA1200, chipset Z490. Suited for building a PC or upgrading the platform., Manufacturer: Asus, Memory Frequency: 4600MHz, Socket: LGA1200, Chipset: Z490, Memory Type: DDR4, Condition: New, SKU: 38200

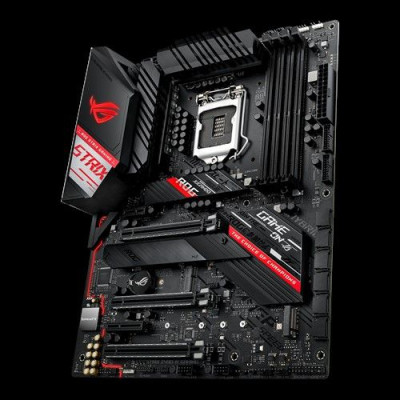

Motherboard Asus ROG STRIX Z490-H GAMING DDR4 LGA1200
Pick up and delivery options:
- Collection from the Ashdod branch - 0₪
- PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
- Home delivery - 45 shekels - over 2999₪ - Free Delivery
- Self-collection from the importer - 0₪ - contact us for pick up option
*Except for cases of abnormal size/weight
Payment options:
- Up to 6 interest-free Credit Card (7-36 with interest) payments through a website, phone, or Ashdod branch
- Bank transfer (Deferred payment not accepted), Bit, PayBox
- Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
- PayPal - Only Shipments With a Tracking Number
| Specification | |
| Revew | Asus ROG STRIX Z490-H GAMINGAsus ROG STRIX Z490-H GAMING - memory type DDR4, cpu socket LGA1200, chipset Z490. Suited for building a PC or upgrading the platform. The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade. Key specifications
What it is forThis product is intended for building a PC or upgrading the platform. Product identificationManufacturer part number: ROG STRIX Z490-H GAMING. Use it to confirm that accessories and spare parts match. |
| Review | |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | ROG STRIX Z490-H GAMING, 90MB12S0-M0EAY0 |
| Model | ROG STRIX Z490-H GAMING |
| Condition | New |
| Manufacturer | Asus |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - SupremeFX Shielding Technology - Gold-plated jacks - Optical S/PDIF in port(s) at back panel - LED-lit Audio Shielding - Premium Japanese audio capacitors - Audio Cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |

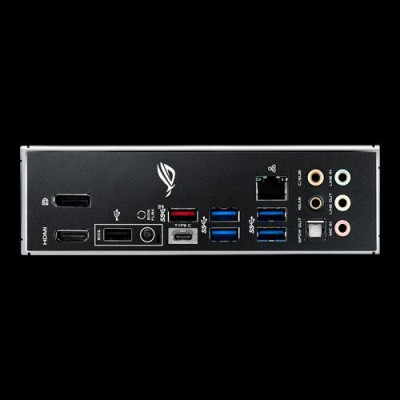

| Back Panel Connectors | 1 x Intel I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (1 x Type-A + USB Type-CTM) 4 x USB 3.2 Gen 1 Type-A 1 x USB 2.0 (one port can be switched to USB BIOS FlashBack) 1 x Optical S/PDIF out 1 x USB BIOS FlashBack Button(s) 5 x Gold-plated audio jacks |
| Chipset | Z490 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | ATX |
| Interface | DDR4: 4, SATA3: 6 |
| Internal Ports / Inputs | 1 x M.2_FAN connector 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Addressable RGB header 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper 1 x VRM_HS_FAN Header |
| Memory Frequency | 4600MHz |
| Memory Type | DDR4 |
| Socket | LGA1200 |
| Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Optane Memory Ready |
| Wired Communication | Intel I225-V 2.5Gb Ethernet ASUS LANGuard |
| Wireless network | Intel I225-V 2.5Gb Ethernet ASUS LANGuard |

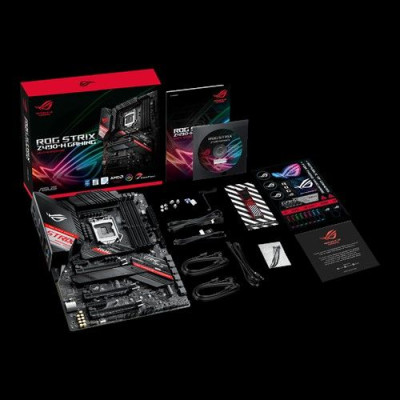

| What'S In The Box? | User's manual 1 x ASUS Fan Holder 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card 1 x 2-in-1 Rubber pad 1 M.2 SSD screw package(s) 1 M.2 Key E screw package(s) 1 ROG key chain |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard Asus ROG STRIX Z490-H GAMING DDR4 LGA1200 |
| Matching SKUs | ID:~38200~, NEW, OC: 33619, EASX: 90MB12S0-M0EAY0, VSL: ROG STRIX Z490-H, CD: 90MB12S0-M0EAY0, MPN: ROG STRIX Z490-H GAMING, MPN2: 90MB12S0-M0EAY0 |
