Out of stock
* The picture is for illustration only
Short review: Asus TUF GAMING B660M-PLUS WIFI D4 - memory 128GB, memory type DDR4, cpu socket LGA1700, chipset B660. Suited for building a PC or upgrading the platform., Manufacturer: Asus, Socket: LGA1700, Chipset: B660, Memory Volume: 128GB, Memory Type: DDR4 DIMM, Condition: New, SKU: 49076

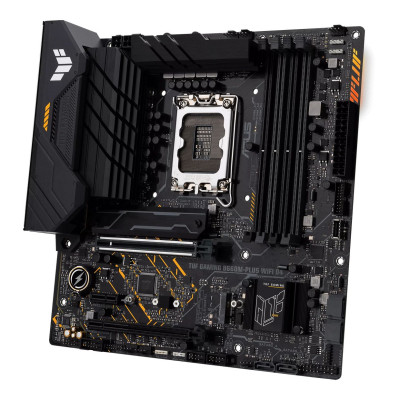

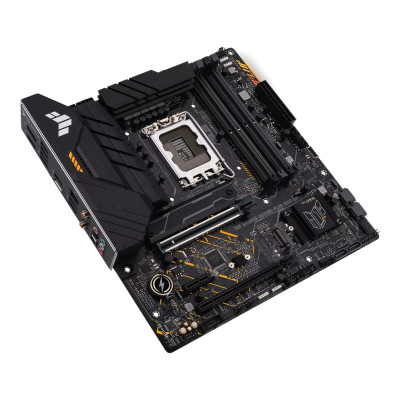

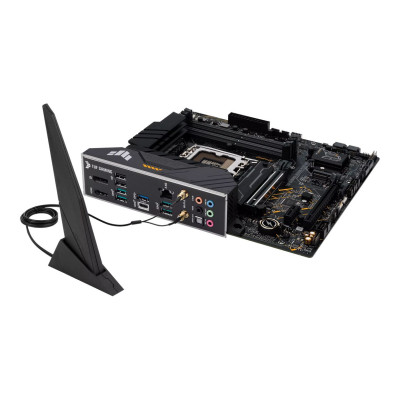

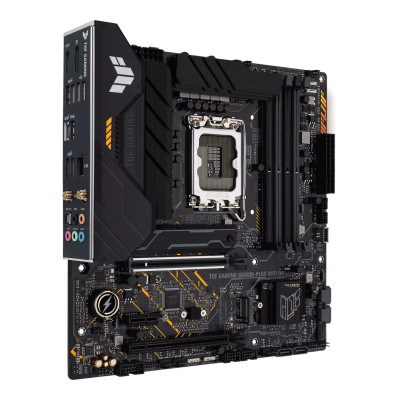

Motherboard Asus TUF GAMING B660M-PLUS WIFI D4 DDR4 DIMM LGA1700
Pick up and delivery options:
- Collection from the Ashdod branch - 0₪
- PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
- Home delivery - 45 shekels - over 2999₪ - Free Delivery
- Self-collection from the importer - 0₪ - contact us for pick up option
*Except for cases of abnormal size/weight
Payment options:
- Up to 6 interest-free Credit Card (7-36 with interest) payments through a website, phone, or Ashdod branch
- Bank transfer (Deferred payment not accepted), Bit, PayBox
- Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
- PayPal - Only Shipments With a Tracking Number
| Specification | |
| Revew | Asus TUF GAMING B660M-PLUS WIFI D4Asus TUF GAMING B660M-PLUS WIFI D4 - memory 128GB, memory type DDR4, cpu socket LGA1700, chipset B660. Suited for building a PC or upgrading the platform. The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade. Key specifications
What it is forThis product is intended for building a PC or upgrading the platform. Product identificationManufacturer part number: TUF GAMING B660M-PLUS WIFI D4. Use it to confirm that accessories and spare parts match. |
| Review | |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | TUF GAMING B660M-PLUS WIFI D4, 90MB1930-M0EAY0 |
| Model | TUF GAMING B660M-PLUS WIFI D4 |
| Condition | New |
| Manufacturer | Asus |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback - Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers |

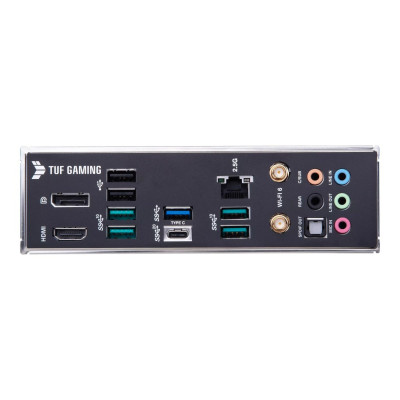

| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Chipset | B660 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | Micro ATX |
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Memory Type | DDR4 DIMM |
| Memory Volume | 128GB |
| Socket | LGA1700 |
| Storage | >Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*& Intel®&12th&Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel®&12th&Gen processors support PCIe 4.0 x4 mode. Intel®&B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel®&Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel®&Rapid Storage Technology supports Intel®&Optane Memory H Series on PCH attached M.2 slots. |
| Wired Communication | TUF LANGuard 1 x Realtek 2.5Gb Ethernet &TUF LANGuard |
| Wireless network | Intel® Wi-Fi 6& 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2* *Bluetooth v5.2 function will be ready in Windows 11 or later. |
| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard Asus TUF GAMING B660M-PLUS WIFI D4 DDR4 DIMM LGA1700 |
| Matching SKUs | ID:~49076~, NEW, OC: 33713, EASX: 90MB1930-M0EAY0, VSL: 90MB1930-M0EAY0, MPN: TUF GAMING B660M-PLUS WIFI D4, MPN2: 90MB1930-M0EAY0 |
