Motherboard Asus TUF GAMING B760-PLUS WIFI DDR5 LGA1700 Box

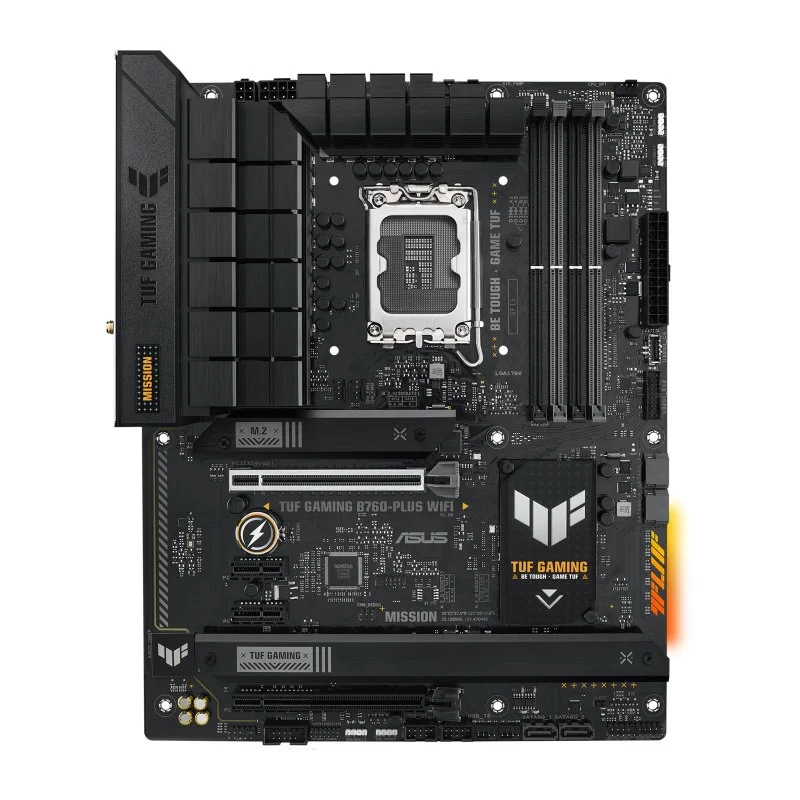

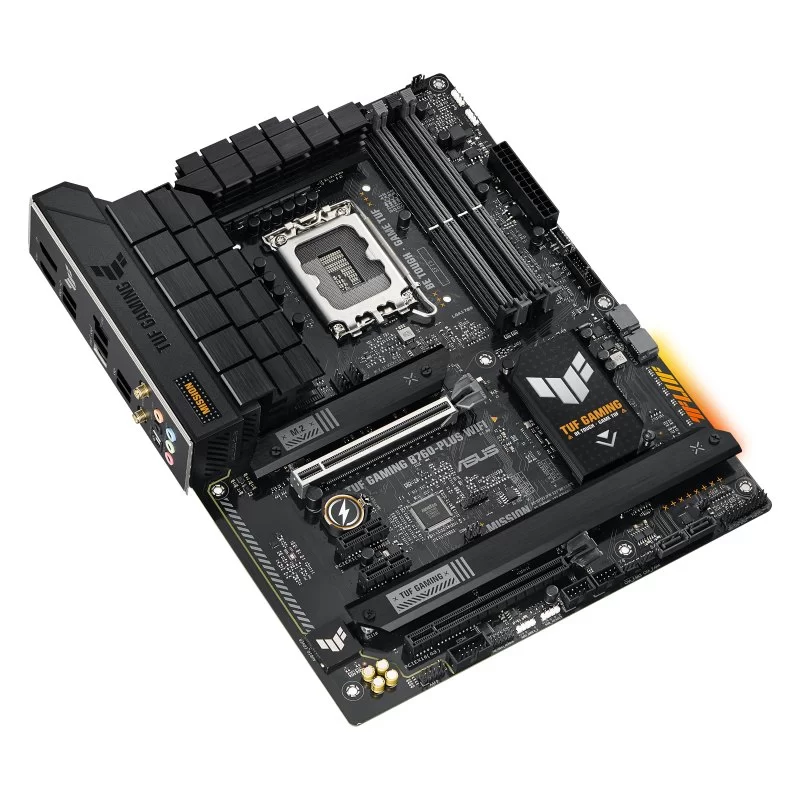

Asus TUF GAMING B760-PLUS WIFI Motherboard

The Asus TUF GAMING B760-PLUS WIFI is an ATX motherboard for the LGA1700 socket, built for 12th, 13th and 14th Gen Intel Core processors as well as Pentium Gold and Celeron. It is based on the Intel B760 chipset, supports DDR5 memory in four slots at up to 7200 MT/s (OC) and offers a PCIe 5.0 x16 slot for the graphics card.

According to the manufacturer, the TUF GAMING series is built with military-grade components and passes rigorous endurance testing. The board has 12+1+1 power stages with enlarged heatsinks, a six-layer PCB, three PCIe 4.0 M.2 slots, Realtek 2.5Gb LAN, Wi-Fi 6 and a 20Gb/s USB-C port on the rear panel.

Key features

• Durable power design - Twelve 50A power stages plus one 60A stage (12+1+1) with enlarged VRM heatsinks and 8+4-pin ProCool CPU power connectors keep the system stable under sustained load.
• PCIe 5.0 for graphics - A reinforced PCIe 5.0 x16 slot (SafeSlot Core+) with PCIe Q-Release for easy graphics card removal, plus a PCIe 3.0 x16 slot (x4 mode) and two PCIe 3.0 x1 slots.
• Three M.2 slots - Three PCIe 4.0 x4 M.2 slots, one wired directly to the CPU and one that also takes 22110 drives, with a heatsink and M.2 Q-Latch. There are also four SATA 6Gb/s ports with RAID 0, 1, 5 and 10.
• DDR5 memory - Four dual-channel DDR5 slots, up to 192GB and up to 7200 MT/s (OC), with Intel XMP profiles and OptiMem II.
• Network and audio - Realtek 2.5Gb Ethernet with TUF LANGuard, 2x2 Wi-Fi 6 with Bluetooth 5.2, a 7.1-channel Realtek codec with audio cover and shielding, an optical S/PDIF output and Two-Way AI Noise Cancelation.
• Connectivity and assembly - Six rear USB ports including a 20Gb/s USB-C, a 10Gb/s front USB-C header, a header for a Thunderbolt or USB4 card, a pre-mounted I/O shield and Q-LED diagnostic lights.

Specifications

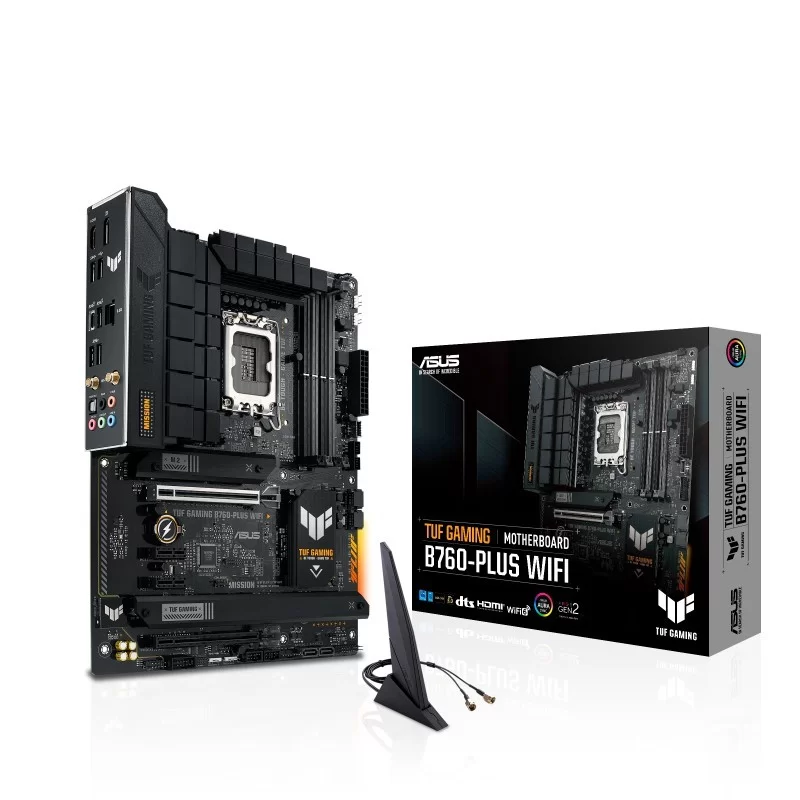

In the box

• Asus TUF GAMING B760-PLUS WIFI motherboard
• 2 x SATA 6Gb/s cables
• Wi-Fi antenna
• 2 x M.2 rubber packages and M.2 screw package
• TUF GAMING sticker and TUF certification card
• User guide
