In the importer's stock
* The picture is for illustration only
A short description
Manufacturer: Asus, Socket: LGA1700, Chipset: B760, Memory Type: DDR4, Warranty: 3 years, Condition: New, SKU: 56591

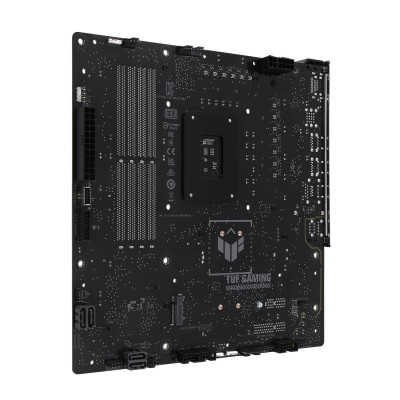

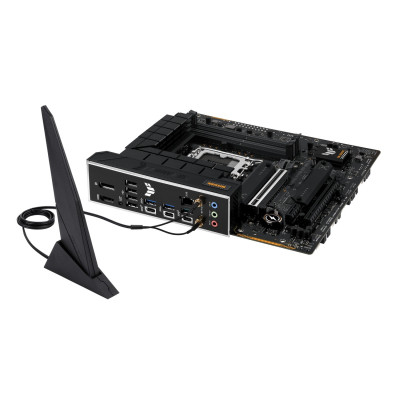

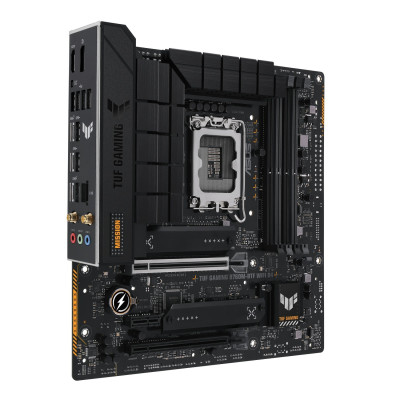

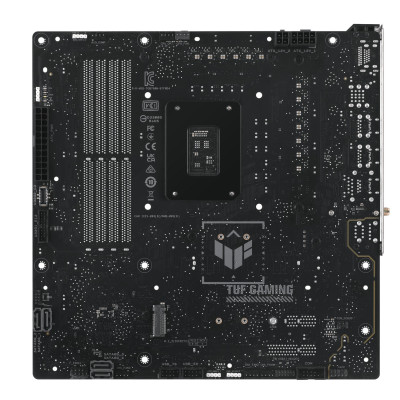

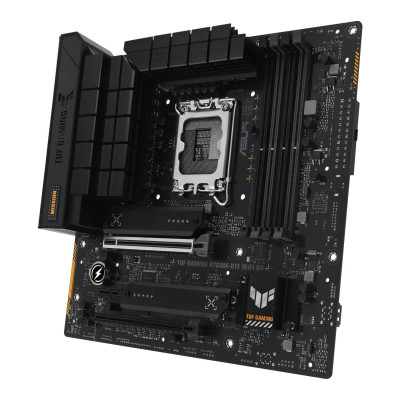

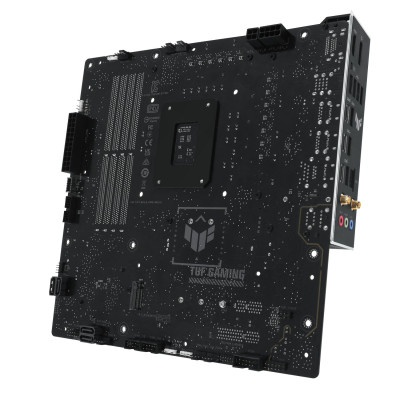

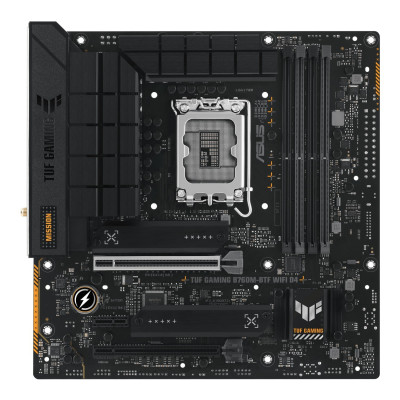

Motherboard Asus TUF GAMING B760M-BTF WIFI D4 DDR4 LGA1700
Pick up and delivery options:
- Collection from the Ashdod branch - 0₪
- PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
- Home delivery - 45 shekels - over 2999₪ - Free Delivery
- Self-collection from the importer - 0₪ - contact us for pick up option
*Except for cases of abnormal size/weight
Payment options:
- Up to 6 interest-free Credit Card (7-36 with interest) payments through a website, phone, or Ashdod branch
- Bank transfer (Deferred payment not accepted), Bit, PayBox
- Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
- PayPal - Only Shipments With a Tracking Number
₪951
| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | 90MB1E50-M0EAY0, TUF GAMING B760M-BTF WIFI D4 |
| Model | TUF GAMING B760M-BTF WIFI D4 |
| Color | Does not apply |
| Condition | New |
| Manufacturer | Asus |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

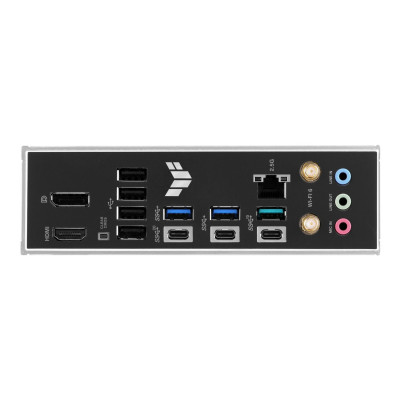

| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x USB Type-C®) 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMITM&port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x Clear CMOS button |
| Chipset | B760 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | micro-ATX |
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®&) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 10-1 pin System Panel header 1 x Thunderbolt™ (USB4®) header |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 566(OC)/5(OC)/48(OC)/46(OC)/44(OC)/4266(OC)/4(OC)/3733(OC)/36(OC)/3466(OC)/34(OC)/3333(OC)/32/3/2933/28/2666/24/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel®&Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit&https://www.asus.com/support/. |
| Socket | LGA1700 |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel®&13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel®&B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports * Intel®&Rapid Storage Technology supports SATA RAID 0/1/5/10. ** M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled. |
| Wired Communication | 1 x Realtek 2.5Gb Ethernet |
| Wireless network | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth®&v5.2* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| סוג הזיכרון | DDR4 |
| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF Gaming sticker 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x User guide |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard Asus TUF GAMING B760M-BTF WIFI D4 DDR4 LGA1700 |
| Matching SKUs | ID: 56591, OC: 36420-05, VSL: 90MB1E50-M0EAY0, MPN: 90MB1E50-M0EAY0, MPN2: TUF GAMING B760M-BTF WIFI D4 |
