Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700

Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700
Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700
Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700
Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700
Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700
Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700
In the importer's stock
Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700
Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700
Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700
Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700
Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700
Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700

* The picture is for illustration only

A short description

Manufacturer: Gigabyte, Color: black, Socket: LGA1700, Chipset: B760, Memory Type: DDR5
Motherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 12 interest-free Credit Card (13-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted)Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Stock: In the importer's stock (delivery to the branch up to 3 working days)
    • Print:
    • SKU: 55978
    • MPN: B760M DS3H AX
    ₪694
    Review
    Warranty3 years
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberB760M DS3H AX
    ModelB760M DS3H AX
    Colorblack
    ConditionNew
    ManufacturerGigabyte
    Audio
    1. Realtek®&Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out

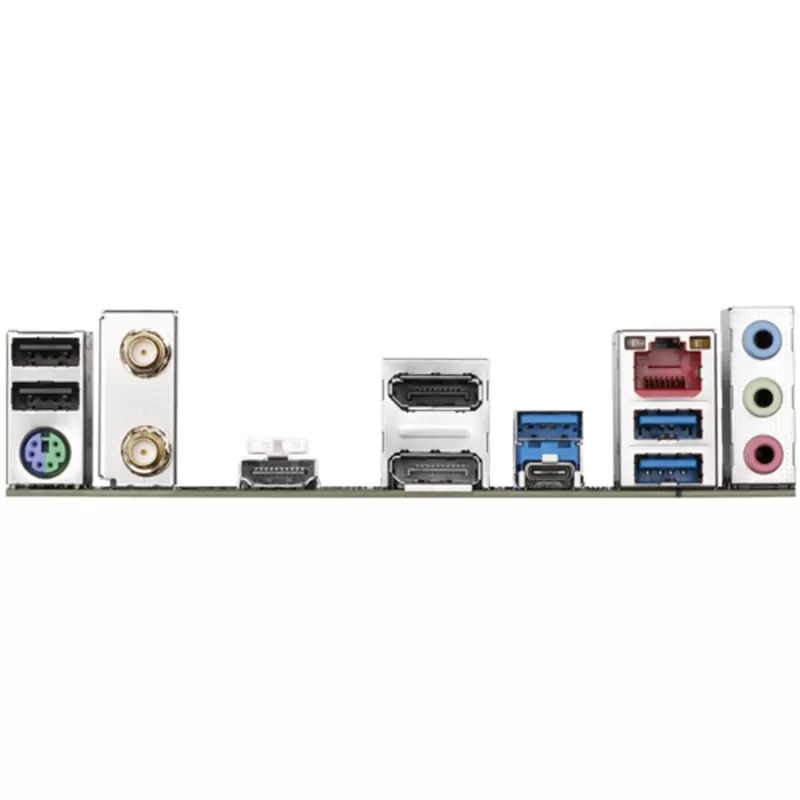

    Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 2 x SMA antenna connectors (2T2R)
    4. 1 x HDMI port
    5. 2 x DisplayPorts
    6. 3 x USB 3.2 Gen 1 ports
    7. 1 x USB Type-C®&port, with USB 3.2 Gen 2 support
    8. 1 x RJ-45 port
    9. 3 x audio jacks
    ChipsetB760
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationMicro ATX
    DimensionsMicro ATX Form Factor; 24.4cm x 24.4cm
    Internal Ports / Inputs
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB 3.2 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    14. 1 x S/PDIF Out header
    15. 1 x Q-Flash Plus button
    16. 1 x reset jumper
    17. 1 x Clear CMOS jumper
    Memory
    • Support for DDR5 76(O.C.) /74(O.C.) /72(O.C.) /7(O.C.) /68(O.C.) /66(O.C.) / 64(O.C.) / 62(O.C.) / 6(O.C.) / 58(O.C.) / 56(O.C.) / 54(O.C.) / 52(O.C.) / 48 / 4 MT/s memory modules
    • 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules
    SocketLGA1700
    Storage
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    2. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Wired CommunicationRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless network
    AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
    Intel®&Wi-Fi 6E AX210 (For PCB rev. 1.1)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Intel®&Wi-Fi 6E AX211 (For PCB rev. 1.2)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Realtek®&Wi-Fi 6E RTL8852CE (For PCB rev. 1.3)
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)
    סוג הזיכרוןDDR5
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Gigabyte B760M DS3H AX DDR5 Micro ATX LGA1700
