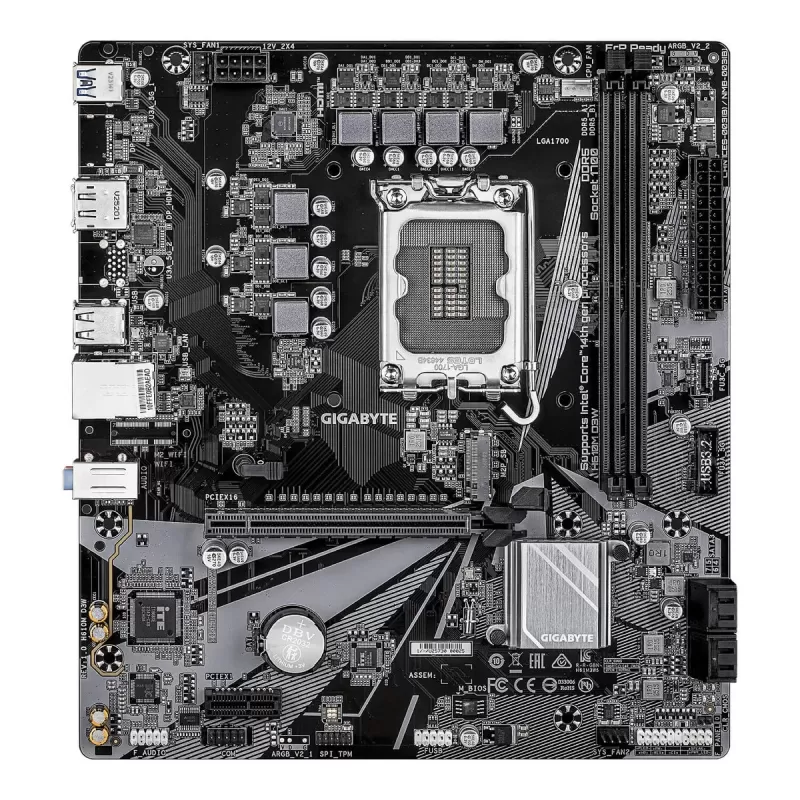

Motherboard Gigabyte GH610MD3W DDR5 LGA1700

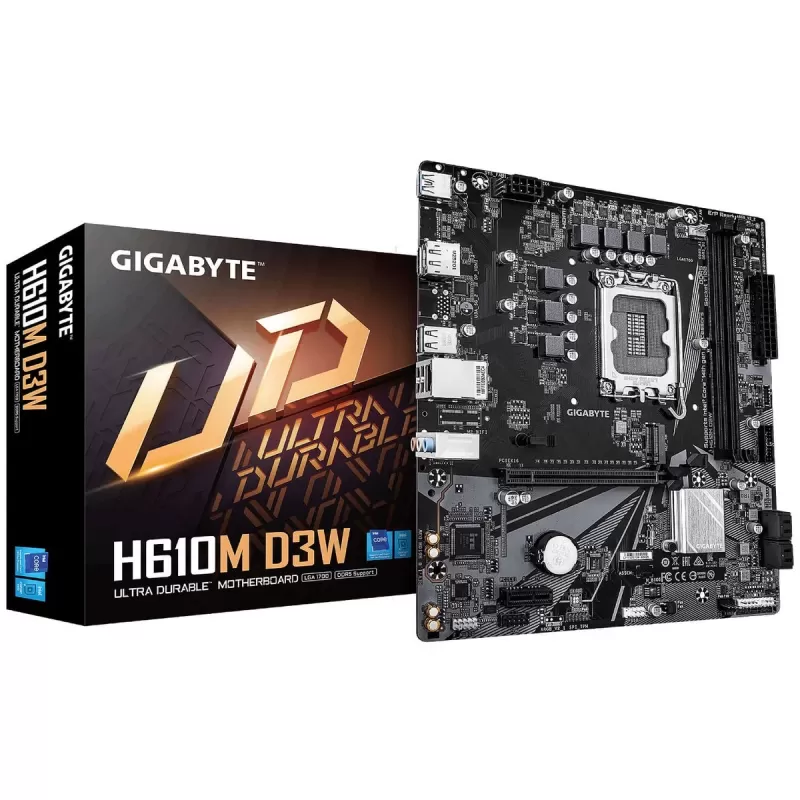

Gigabyte H610M D3W Intel DDR5 Micro ATX Motherboard

The Gigabyte H610M D3W is a dependable entry-level Micro ATX board aimed at common Intel home and office systems. It pairs support for fast DDR5 memory with a hybrid VRM design and tidy audio and network solutions, making it a comfortable foundation for everyday builds.

Platform & chipset

The board is based on the Intel H610 chipset and supports Intel Core processors from the 12th, 13th and 14th generations. An Anti-Sulfur resistor design helps prolong component life in environments with sulfur contamination, and the GIGABYTE Control Center keeps managing the board's settings simple.

Memory & expansion

Two DIMM slots in a dual-channel arrangement accept Non-ECC Unbuffered DDR5 memory, letting you assemble a modern kit that runs in parallel. Fast storage is served by an M.2 slot rated for NVMe PCIe 3.0 x4, while a PCIe 4.0 design handles the graphics card, giving both the GPU and the SSD a wide data path.

Power, cooling & connectivity

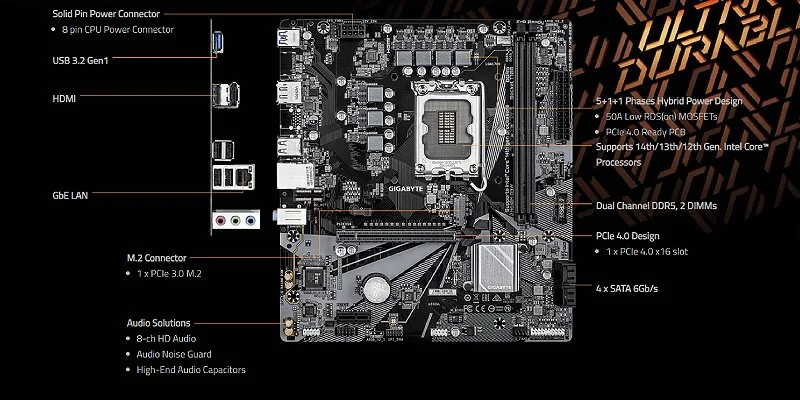

Power delivery follows a 5+1+1 phase hybrid digital VRM design for steady feeding of the processor. The Smart Fan 6 system provides multiple temperature sensors and hybrid fan headers with a FAN STOP function for cooling control. Connectivity offers GbE LAN, DisplayPort and HDMI for dual display, USB 2.0, 3.2 and Type-C ports, and high-quality audio with dedicated capacitors and noise guarding.

• Socket: LGA1700 · Intel Core 12/13/14th gen
• Chipset: Intel H610
• Form factor: Micro ATX
• Memory: DDR5 · 2 slots · dual-channel
• Storage: M.2 NVMe PCIe 3.0 x4 · SATA3
• Power: 5+1+1 phases · hybrid digital VRM
• Connectivity: GbE LAN · DisplayPort · HDMI · USB Type-C
