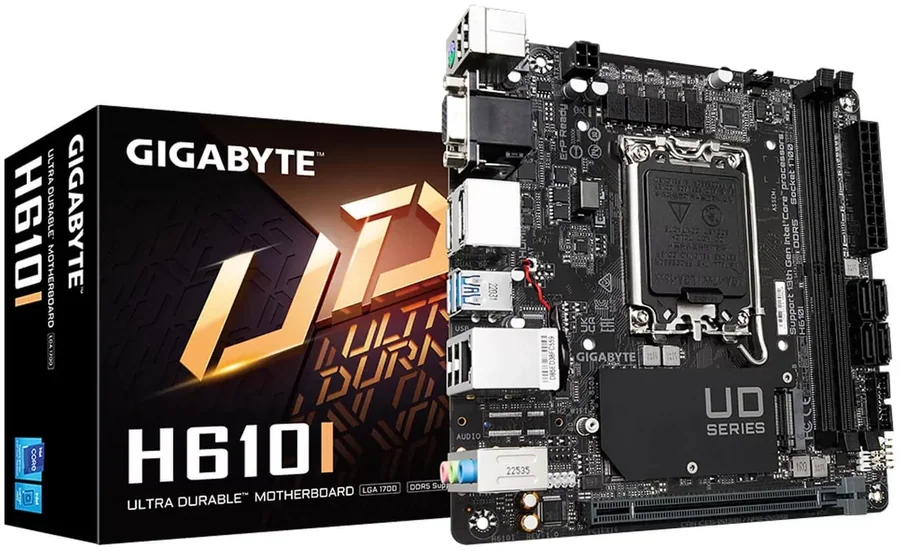

Gigabyte H610I Motherboard

The Gigabyte H610I is a compact Mini-ITX motherboard (17 x 17 cm) for socket LGA1700 based on the Intel H610 chipset. It supports 12th, 13th and 14th Gen Intel Core processors as well as Pentium Gold and Celeron, works with DDR5 memory and suits a small office, home or living-room PC.

The board has two DDR5 slots, a PCIe x16 slot that conforms to PCIe 4.0, an M.2 slot for a PCIe 3.0 x4 NVMe drive and four SATA ports. The rear panel offers D-Sub, HDMI and two DisplayPort outputs for up to three displays, Intel GbE networking and six USB ports.

Key features

• Compact Mini-ITX size - A 17 x 17 cm board for small cases that still includes a PCIe x16 slot for a graphics card, M.2 and four SATA ports.
• 4+1+1 hybrid VRM - A 4+1+1 phase hybrid digital VRM design for stable power delivery to Intel Core processors.
• DDR5 memory - Two dual-channel DDR5 slots for up to 128GB (up to 64GB per module), with XMP profile support. With 13th Gen Core i9 and i7 processors the board supports up to 5600 MT/s, with other processors up to 4800 MT/s.
• Up to three displays - D-Sub, HDMI (up to 4096x2160@60Hz) and two DisplayPort outputs (up to 4096x2304@60Hz) for the processor's integrated graphics.
• Intel LAN and quality audio - An Intel GbE network controller, high-quality audio capacitors and Audio Noise Guard, which separates the audio circuit from electrical noise.
• Smart Fan 6 and durability - Multiple temperature sensors and hybrid fan headers with FAN STOP, plus anti-sulfur resistors.
