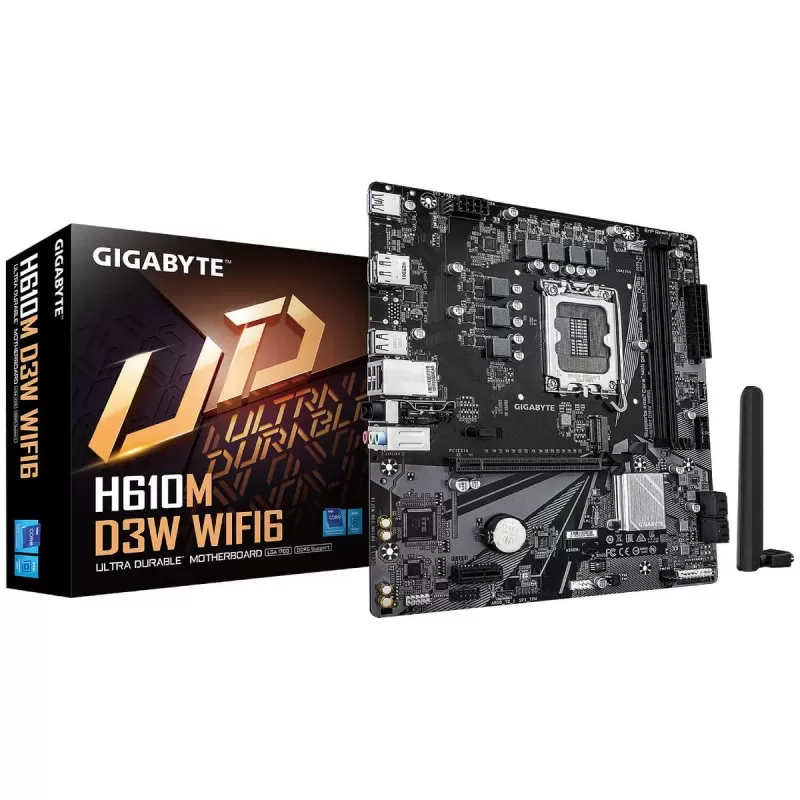

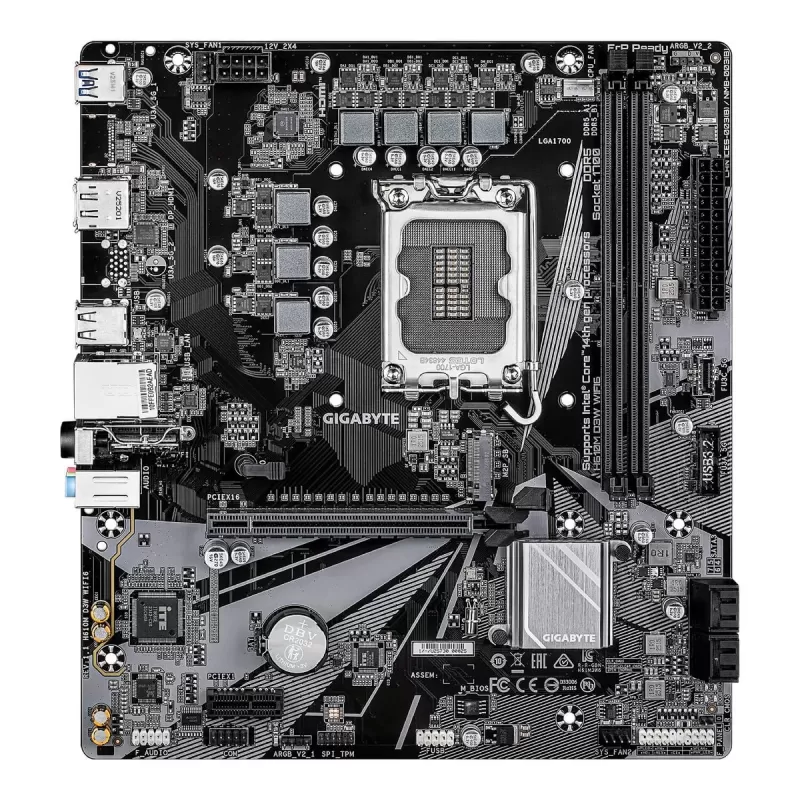

Motherboard Gigabyte H610M D3W WiFi6 DDR5 LGA1700

Gigabyte H610M D3W WiFi6 Intel DDR5 Micro ATX Motherboard

The Gigabyte H610M D3W WiFi6 is a Micro ATX board for the Intel platform that adds Wi-Fi 6 wireless to a dependable DDR5 base. It targets builders putting together a clean home or office system, with onboard wireless networking and tidy audio and cooling solutions.

Platform & chipset

The board is based on the Intel H610 chipset and supports Intel Core processors from the 12th, 13th and 14th generations. An Anti-Sulfur resistor design helps prolong component life in environments with sulfur contamination, and the GIGABYTE Control Center keeps managing the board's settings simple for convenient operation.

Memory & expansion

Two DIMM slots in a dual-channel arrangement accept Non-ECC Unbuffered DDR5 memory for assembling a modern kit that runs in parallel. Fast storage is served by an M.2 slot rated for NVMe PCIe 3.0 x4, while a PCIe 4.0 design handles the graphics card, so both the GPU and the SSD receive a wide data path.

Power, cooling & connectivity

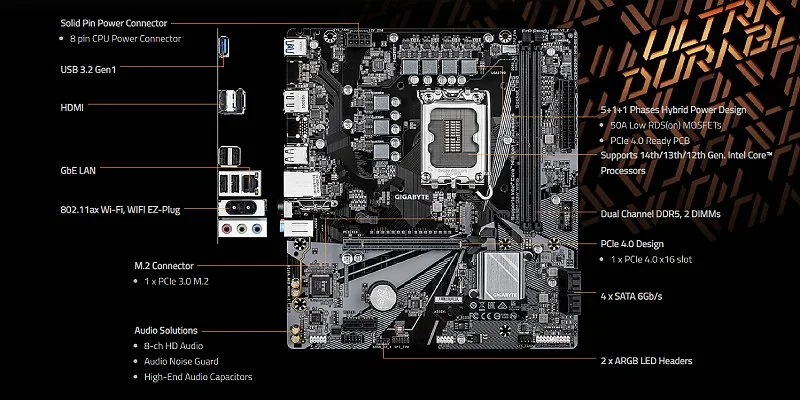

Power delivery follows a 5+1+1 phase hybrid digital VRM design for steady feeding of the processor. The Smart Fan 6 system provides multiple temperature sensors and hybrid fan headers with a FAN STOP function. Connectivity includes Wi-Fi 6 networking on the 802.11ax standard alongside GbE LAN, DisplayPort and HDMI outputs for display, USB 2.0, 3.2 and Type-C ports, and high-quality audio with noise guarding.

• Socket: LGA1700 · Intel Core 12/13/14th gen
• Chipset: Intel H610
• Form factor: Micro ATX
• Memory: DDR5 · 2 slots · dual-channel
• Storage: M.2 NVMe PCIe 3.0 x4 · SATA3
• Wireless: Wi-Fi 6 802.11ax · GbE LAN
• Connectivity: DisplayPort · HDMI · USB Type-C · 5+1+1 phase power
