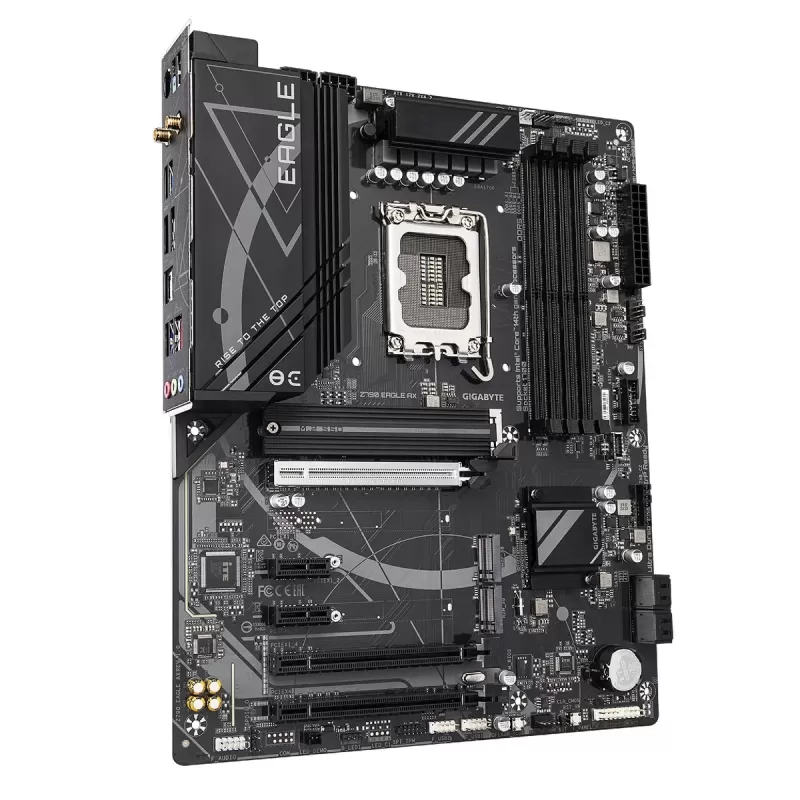

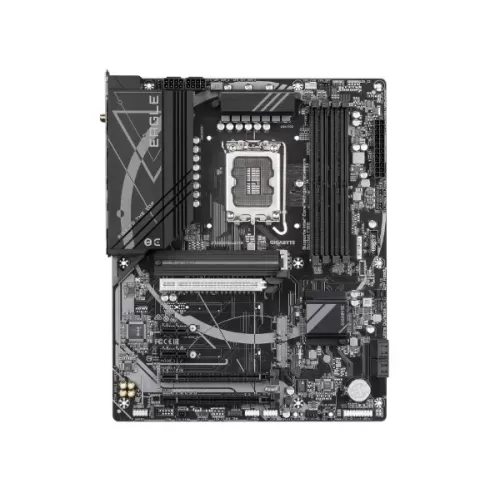

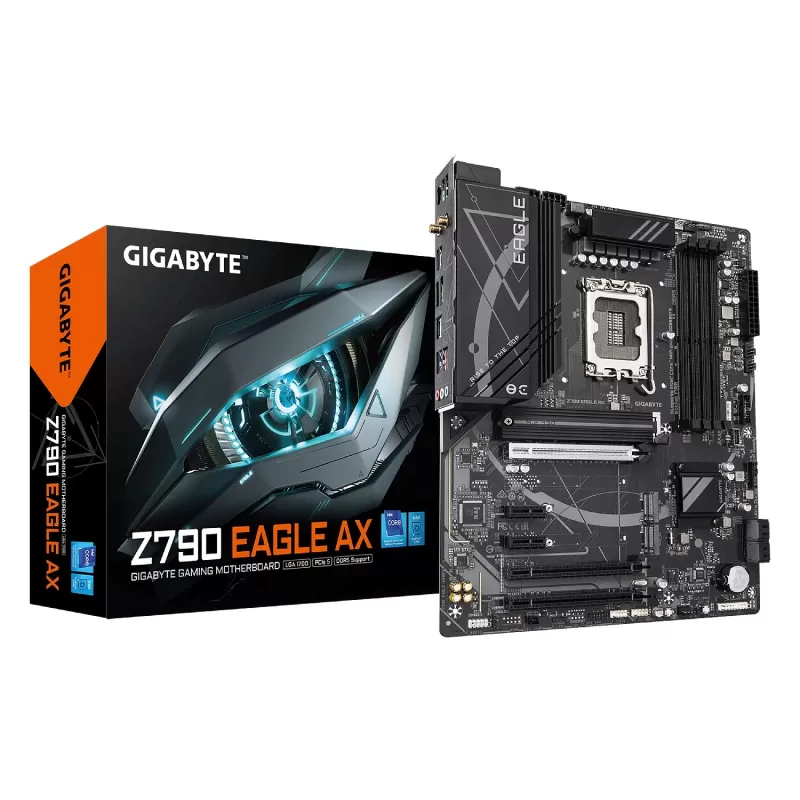

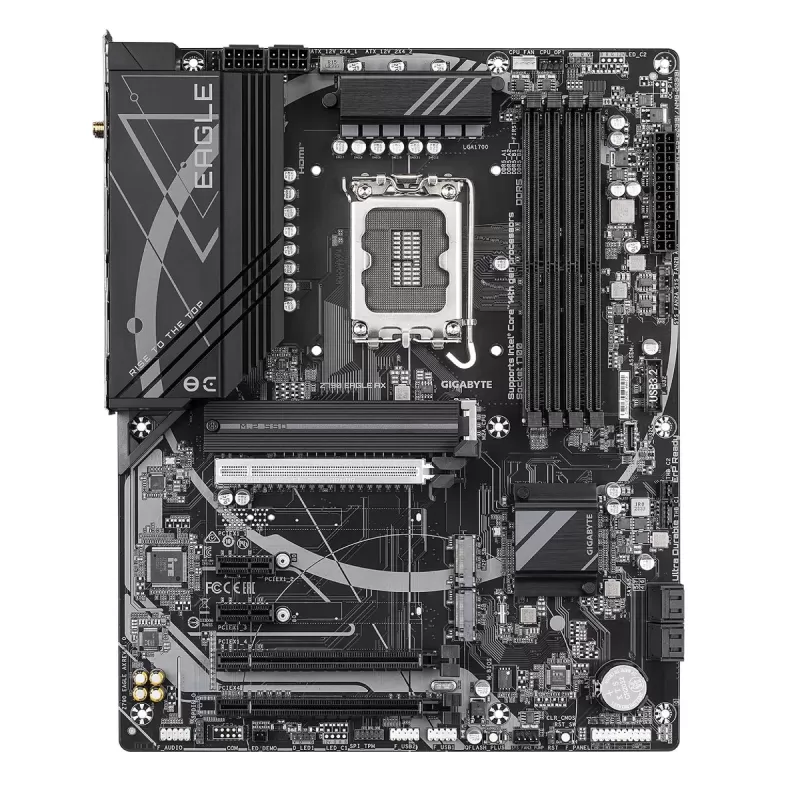

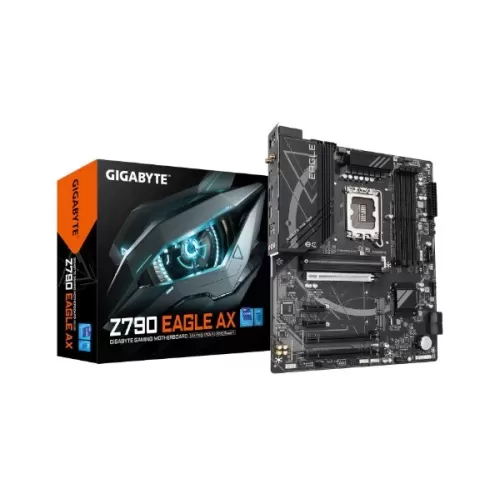

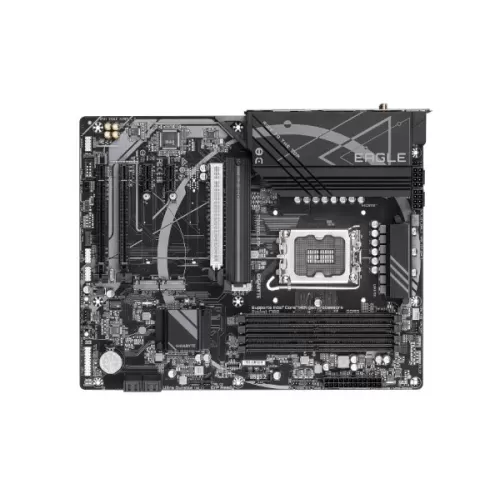

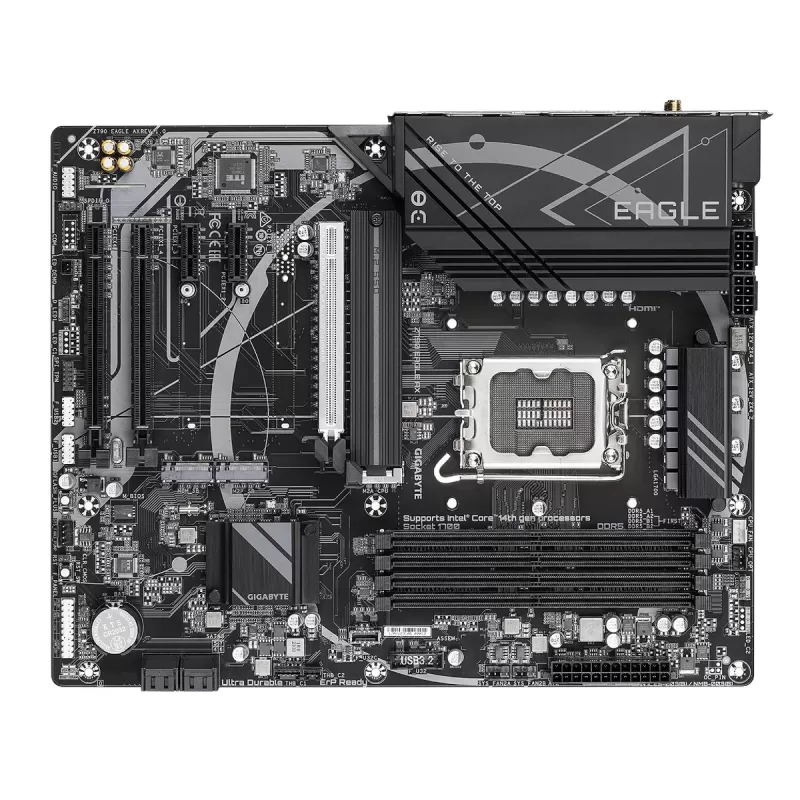

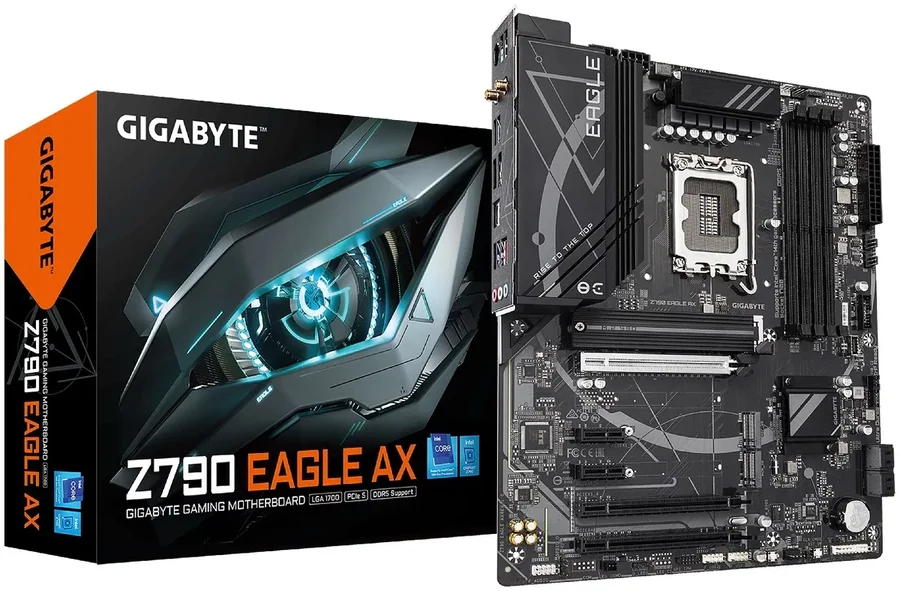

Gigabyte Z790 EAGLE AX Motherboard

The Gigabyte Z790 EAGLE AX is an ATX motherboard for the LGA1700 socket, built for 12th, 13th and 14th Gen Intel Core processors. It is based on the Intel Z790 chipset and supports DDR5 memory in four slots, up to 256GB, and up to 7600 MT/s (OC) with 13th and 14th Gen Core i7 and i9 processors.

According to the manufacturer, the board uses a Twin 12+1+1 digital VRM, a 6-layer 2X Copper PCB and an enlarged MOSFET heatsink. It offers an armored PCIe 5.0 x16 slot, three PCIe 4.0 x4 M.2 slots with a heatsink, 2.5GbE LAN, Wi-Fi 6E with Bluetooth 5.3 and a 10Gb/s rear USB-C port.

Key features

• Digital power - A Twin 12+1+1 digital VRM (6+6 parallel design) with low RDS(on) MOSFETs, a 6-layer 2X Copper PCB and 8+8-pin solid-pin power connectors.
• DDR5 up to 7600 MT/s - Four dual-channel DDR5 slots take up to 256GB. With 13th and 14th Gen Core i7 and i9 processors memory runs at up to 7600 MT/s (OC) with XMP, and up to 4800 MT/s with other CPUs.
• PCIe 5.0 for graphics - An SMD PCIe 5.0 x16 slot with Ultra Durable armor and PCIe EZ-Latch quick release, plus one PCIe 4.0 x4 slot and three PCIe 3.0 x1 slots.
• Three M.2 slots - Three PCIe 4.0 x4 M.2 slots with an M.2 Thermal Guard heatsink (one also supports SATA), and four SATA 6Gb/s ports with RAID 0, 1, 5 and 10.
• Networking and ports - Realtek 2.5GbE, Wi-Fi 6E with Bluetooth 5.3, a 10Gb/s USB-C port, USB 3.2 Gen 2, four USB 3.2 Gen 1 ports, HDMI and DisplayPort on the rear panel, plus a front USB-C header.
• Convenience and maintenance - Smart Fan 6 with temperature sensors and fan stop, two ARGB headers, a Multi-Key button with BIOS-defined functions and a Q-Flash Plus button that updates the BIOS without a CPU, memory or graphics card.
