Motherboard Gigabyte Z890 EAGLE WIFI7 PLUS DDR5 LGA1851

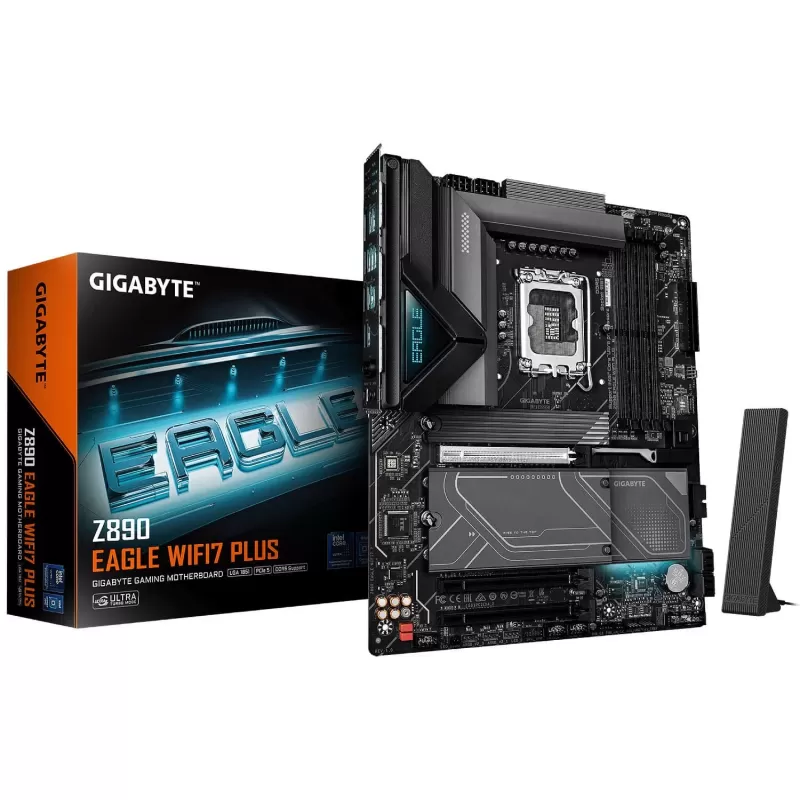

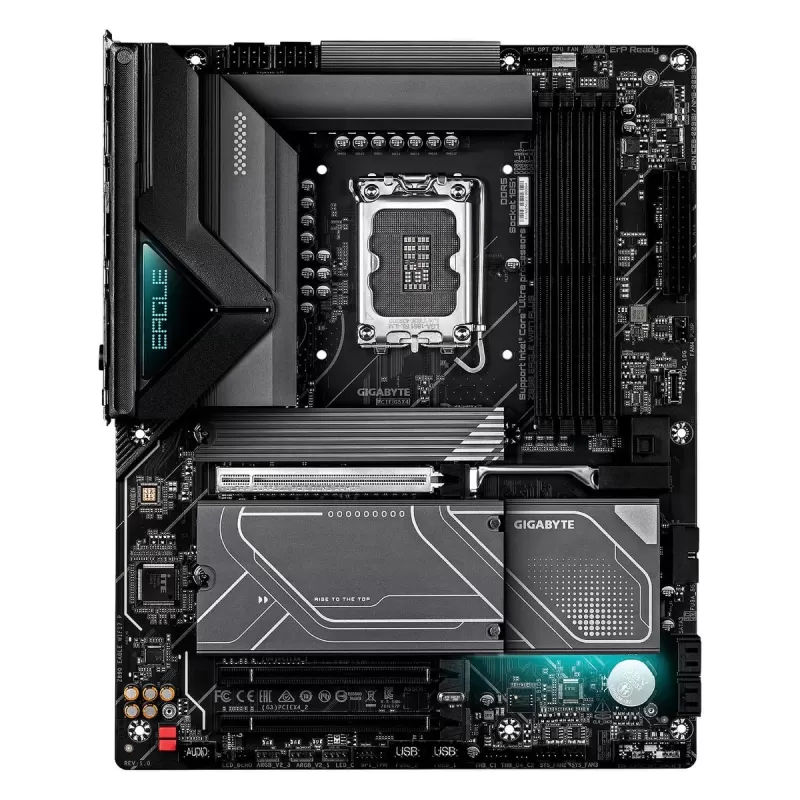

Gigabyte Z890 EAGLE WIFI7 PLUS LGA1851 ATX Motherboard

The Z890 EAGLE WIFI7 PLUS is an ATX board on Intel's top-tier Z890 chipset, with an emphasis on next-generation connectivity. It carries Wi-Fi 7, a USB4 port and a strong power array, aimed at builders who want an advanced, future-ready Core Ultra platform.

Platform & chipset

The board uses the LGA1851 socket and supports Intel Core Ultra Series 2 processors on the Z890 chipset. An Ultra Turbo mode is designed to unlock extra performance, while AI Perfdrive supplies an optimal, user-tailored BIOS profile. The friendly BIOS includes multiple themes, AIO fan control and Q-Flash Auto Scan, joined by a new HWinfo power monitor for real-time tracking of the CPU phases.

Memory & expansion

Four DDR5 slots support XMP profiles, and D5 Bionic Corsa technology is meant to improve memory performance. EZ-Latch Plus mechanisms allow quick, screwless release of the PCIe and M.2 slots, while EZ-Latch Click extends the screwless design to the M.2 heatsinks as well. The result is a flexible expansion layout that eases installing and upgrading graphics cards and storage drives.

Power, cooling & connectivity

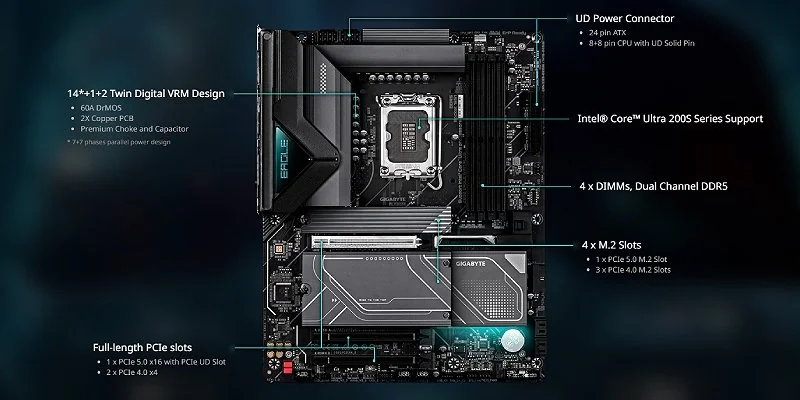

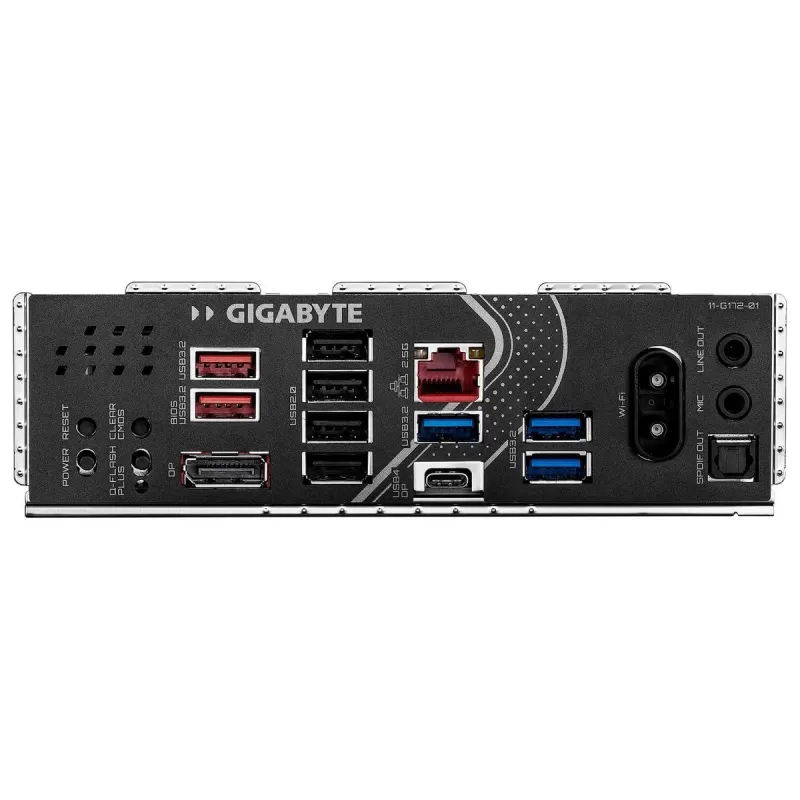

A digital 14+1+2 phase power array gives a strong voltage base for current-generation processors, and the VRM Thermal Armor Advanced together with an M.2 Thermal Guard disperses heat. On the network front, Wi-Fi 7 with a directional high-gain antenna stands out alongside a 2.5GbE wired LAN, and WiFi EZ-Plug simplifies antenna attachment. Extended connectivity includes USB4 Type-C with DP-Alt support and a DisplayPort output, while audio is based on an ALC1220 codec with audiophile-grade WIMA capacitors.

• Socket: LGA1851 · Intel Core Ultra Series 2
• Chipset: Intel Z890
• Form factor: ATX
• Memory: 4 DDR5 slots · XMP support
• Power: digital 14+1+2 phase VRM
• Network: Wi-Fi 7 · 2.5GbE LAN
• I/O: USB4 Type-C · DisplayPort · ALC1220 audio
