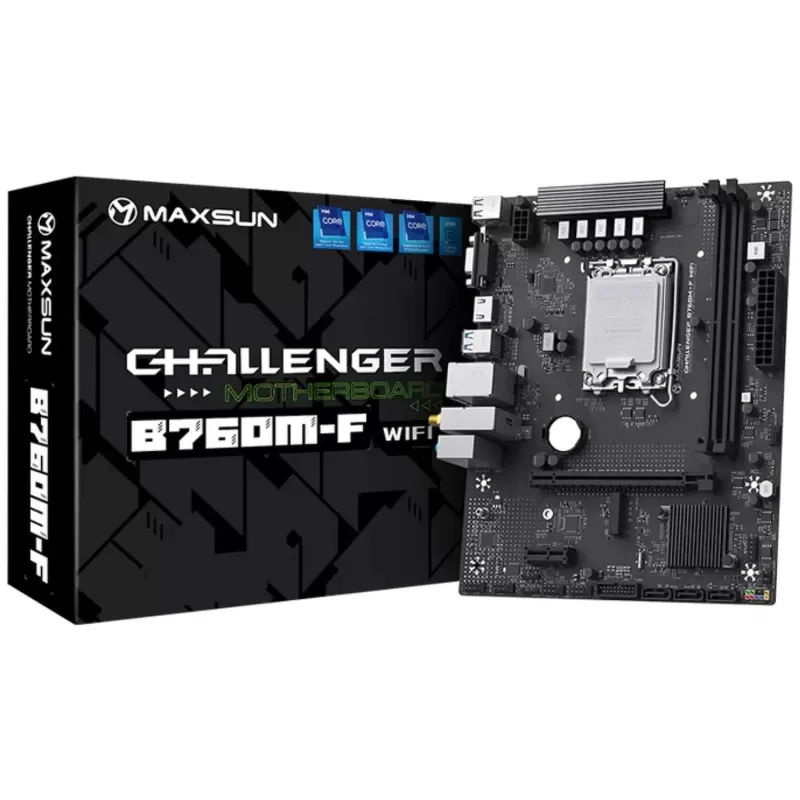

Motherboard MAXSUN Challenger B760M-F WiFi DDR4 LGA1700

Motherboard MAXSUN Challenger B760M-F WiFi

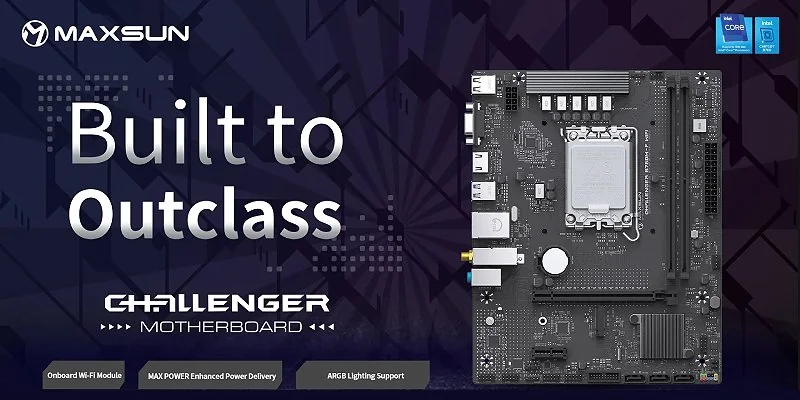

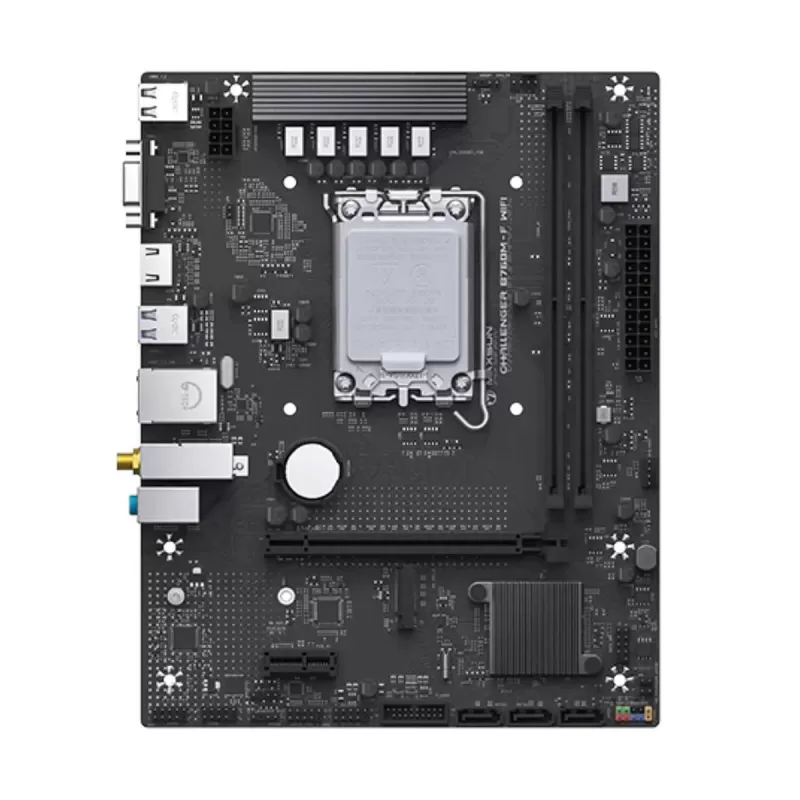

The MAXSUN MS-Challenger B760M-F WIFI is a Micro-ATX motherboard (22.5x18 cm) with the Intel B760 chipset and LGA1700 socket, for Intel processors with a TDP of up to 75W. It uses dual-channel DDR4 memory in two slots, up to 64GB at DDR4-3200 with Intel XMP support.

It is aimed at a home, office or entry-level gaming PC with an efficient Intel Core processor, including compact builds. The onboard Wi-Fi card with Bluetooth saves a separate network card, and the PCIe 4.0 x16 slot suits a modern graphics card. HDMI and VGA outputs serve the integrated graphics.

The MAX POWER 4+1+1 all-digital power design with 50A Dr.MOS and a reinforced 8-pin connector, a full-speed M.2 slot for an NVMe SSD, Realtek Gigabit LAN, Realtek ALC897 audio and two 5V ARGB headers controlled by Maxsun SYNC complete a well-balanced package.

Key features

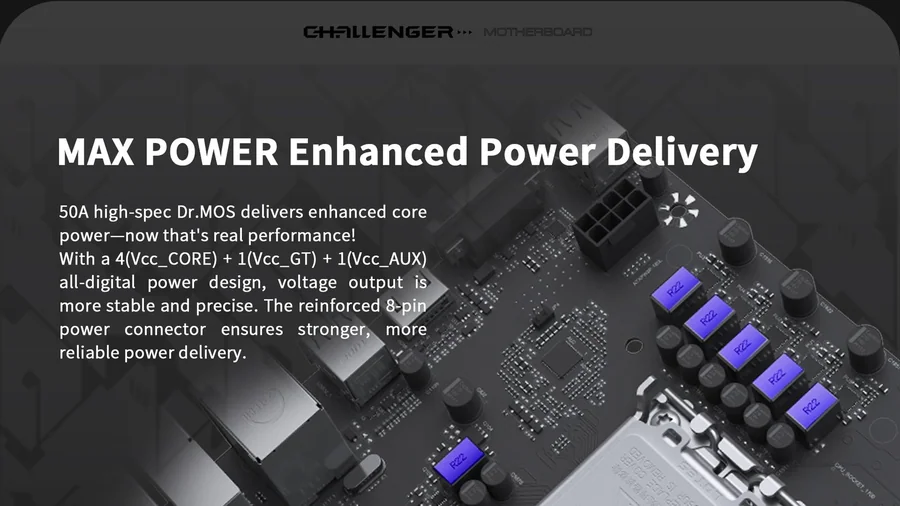

• MAX POWER enhanced power delivery - 50A high-spec Dr.MOS in an all-digital 4 (Vcc_CORE) + 1 (Vcc_GT) + 1 (Vcc_AUX) design delivers stable and precise CPU voltage, and the reinforced 8-pin power connector ensures reliable power delivery.

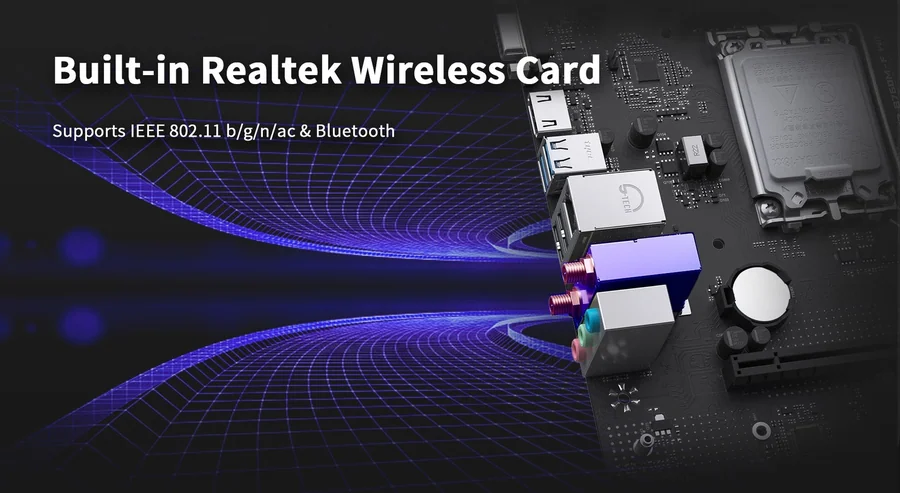

• Onboard Wi-Fi and Bluetooth - The built-in Realtek 8821CE wireless card supports IEEE 802.11 b/g/n/ac (Wi-Fi 5) and Bluetooth, with antenna connectors on the rear panel, so no extra network card is needed.

• Full-speed M.2 NVMe - A PCIe 4.0 x4 M.2 slot for 2242 and 2280 NVMe SSDs gives faster boot-up and loading, alongside 3 SATA 6Gb/s ports for additional drives.
• Dual-channel DDR4 - Two dual-channel DDR4 slots support up to 64GB at DDR4-3200, with Intel XMP profiles to enable the rated memory speed quickly.

• ARGB lighting with Maxsun SYNC - 2 5V ARGB headers and one 12V RGB header for lit strips and fans, controlled by Maxsun SYNC software with preset effects such as Breath, ColorCycle, Rainbow and Comet.
• Network, audio and USB - Realtek RTL8111M Gigabit LAN, a multi-channel Realtek ALC897 codec, 2 USB 5Gbps and 4 USB 2.0 ports on the rear, plus internal headers for 2 USB 5Gbps and 2 USB 2.0 front-panel ports.
