Motherboard MAXSUN Challenger H610M-D DDR4 LGA1700

MAXSUN Challenger H610M-D Motherboard

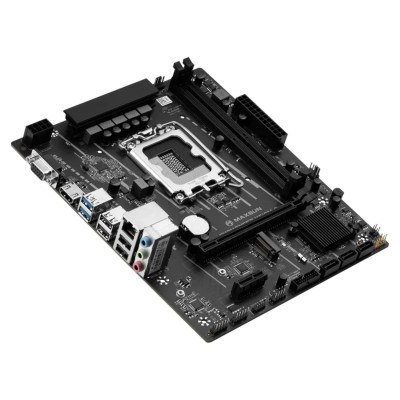

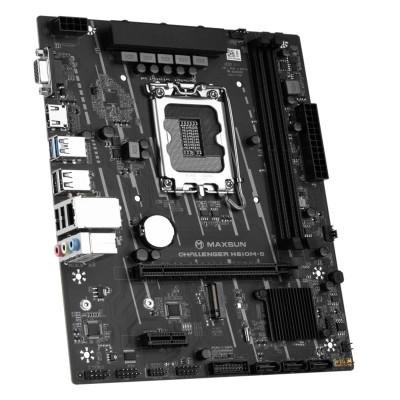

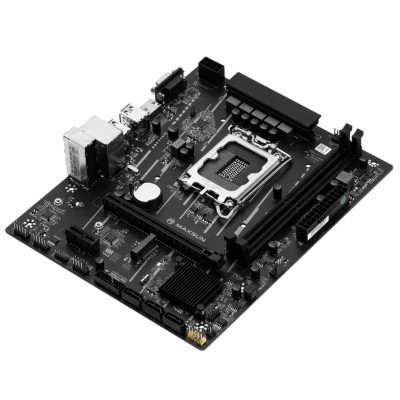

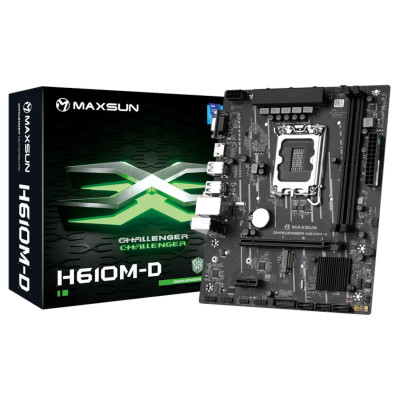

The MAXSUN Challenger H610M-D is a Micro ATX motherboard for the LGA1700 socket, built for 12th and 13th Gen Intel Core processors as well as Pentium Gold and Celeron. It is based on the Intel H610 chipset and supports DDR4 memory in two slots, up to 64GB and up to 3200MHz with Intel XMP 2.0.

The board offers a PCIe 4.0 x16 slot for a graphics card, an M.2 slot for a PCIe 3.0 x4 NVMe drive, three SATA ports, Realtek Gigabit LAN and HDMI and VGA outputs. Four debug LEDs help find problems during assembly, and it suits an office PC, a home PC or light gaming.

Key features

• 12th and 13th Gen Intel - The LGA1700 socket supports 12th and 13th Gen Intel Core processors as well as Pentium Gold and Celeron, with an 8-pin CPU power connector.
• Dual-channel DDR4 - Two DDR4 slots for up to 64GB at 2400 to 3200MHz (OC), with Intel XMP 2.0 profiles and dual-channel mode.
• PCIe 4.0 and NVMe - A PCIe 4.0 x16 slot for a graphics card, a PCIe 3.0 x1 slot for an expansion card and an M.2 (Key M) slot for 2242 or 2280 PCIe 3.0 x4 drives. Three SATA 6Gb/s ports are also included.
• Ten USB ports - Two USB 3.2 Gen 1 and four USB 2.0 ports on the rear, and internal headers for two more USB 3.2 Gen 1 and two USB 2.0 ports on the front of the case.
• Video, network and audio - An HDMI output up to 4K at 30Hz and a VGA output for integrated graphics, Realtek RTL8111H 1Gb LAN and 5.1-channel audio.
• Debug LEDs - Four side-by-side debug LEDs help locate a fault on the very first power-on. The board also has a serial port (COM) header and a buzzer header.

Specifications
