| Specification | |

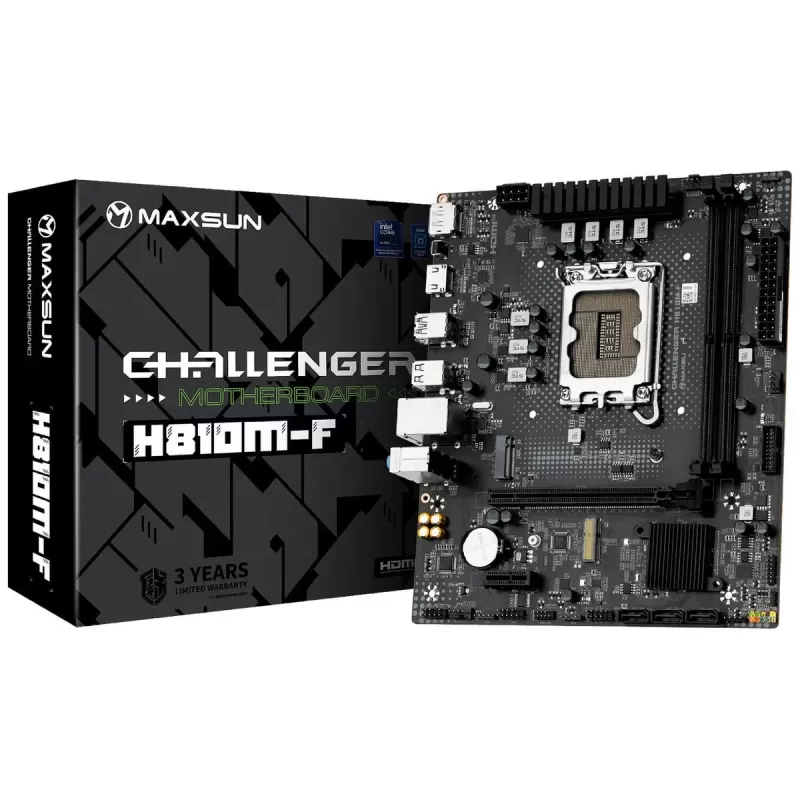

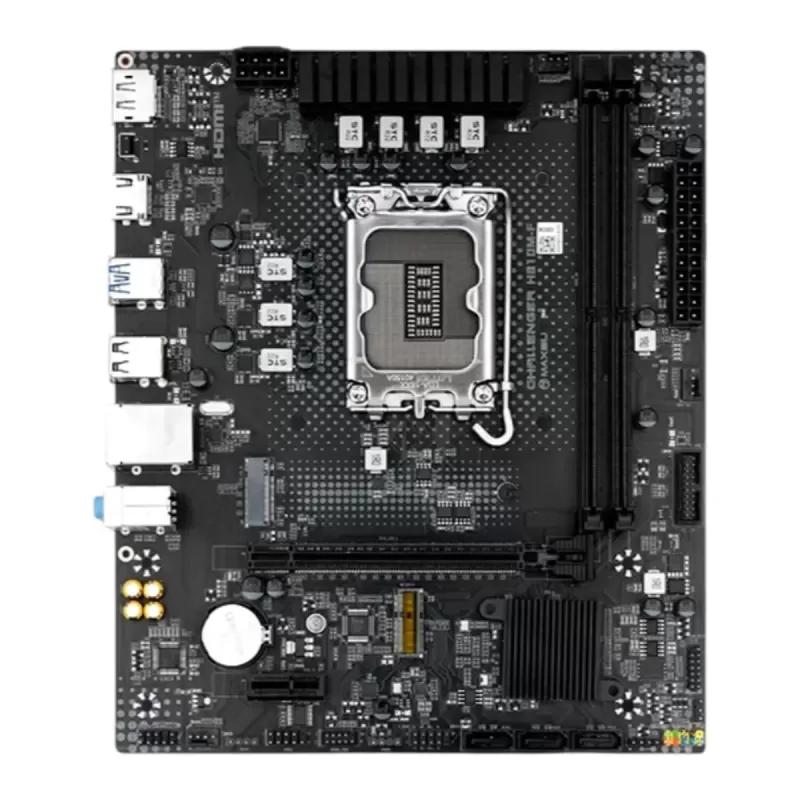

| Revew | MAXSUN Challenger H810M-F Motherboard - Intel LGA1851, DDR5, Micro ATXThe MAXSUN Challenger H810M-F is a compact Micro ATX board for the Intel LGA1851 platform, suited to desktop builds based on Core Ultra processors. It combines Dr.MOS-based power delivery, fast DDR5 memory and a PCIe 5.0 slot for the graphics card. Platform & chipsetThe board is based on the Intel H810 chipset and supports Intel Core Ultra 200S processors on the LGA1851 socket. A 4+1+1 phase power design with 50A Dr.MOS components provides steady power to the CPU, within a compact board footprint of 225 x 190 mm.

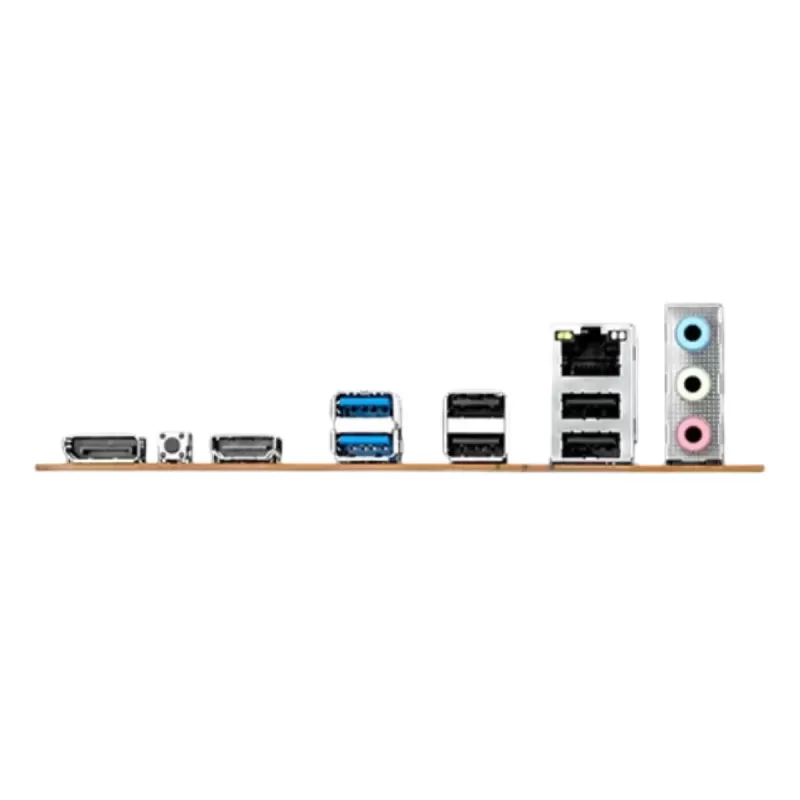

Memory & expansionTwo DIMM slots support DDR5 memory at speeds up to 6400MHz. For expansion there is a PCIe 5.0 x16 slot for the graphics card and a PCIe 4.0 x1 slot for an additional card, allowing a modern, high-bandwidth system. Power, cooling & connectivityThe front panel provides two USB 5G ports and two USB 2.0 ports, while the rear panel offers two USB 5G ports and four USB 2.0 ports. The board supports MAXSUN Sync software for lighting synchronisation and provides SATA3 connectivity for additional storage when needed.
|
| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | Challenger H810M-F |
| Model | Challenger H810M-F |
| Condition | New |
| Video Card | HDMI / DisplayPort |
| Manufacturer | Maxsun |
| Audio | 3 port |
| Chipset | H810 |
| Compatibility for computer assembly | Hardware and Software |
| Configuration | Micro ATX |
| Free Memory Slots | 2 |
| Interface | USB 2.0 / USB 3.2 |
| Memory Interface | SATA3 / M.2 PCIe |
| Memory Type | DDR5 |
| Socket | LGA1851 |
| Wired Communication | LAN 1 Gb/s |
