| Specification | |

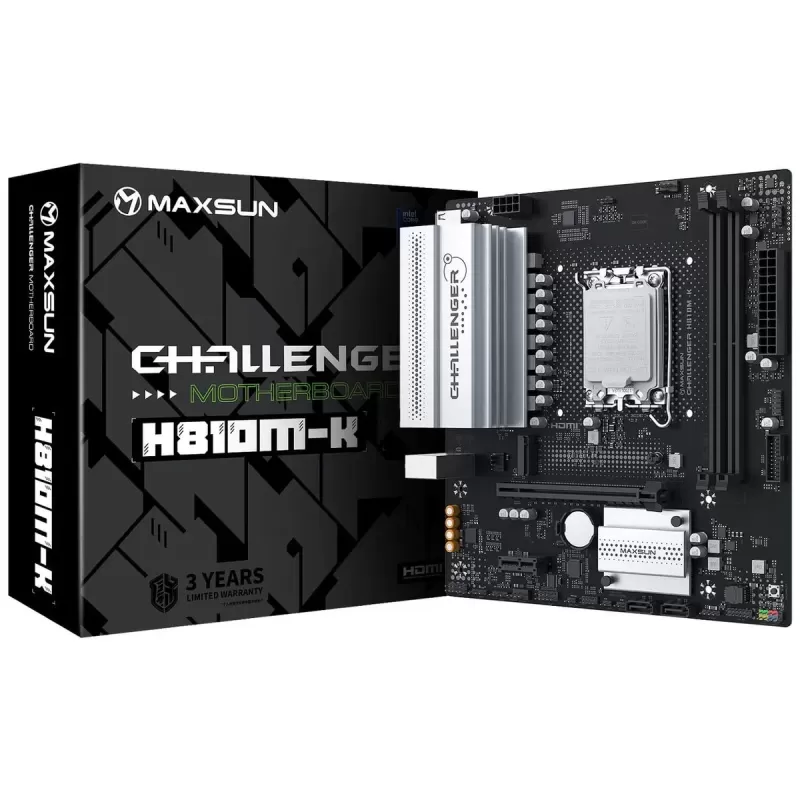

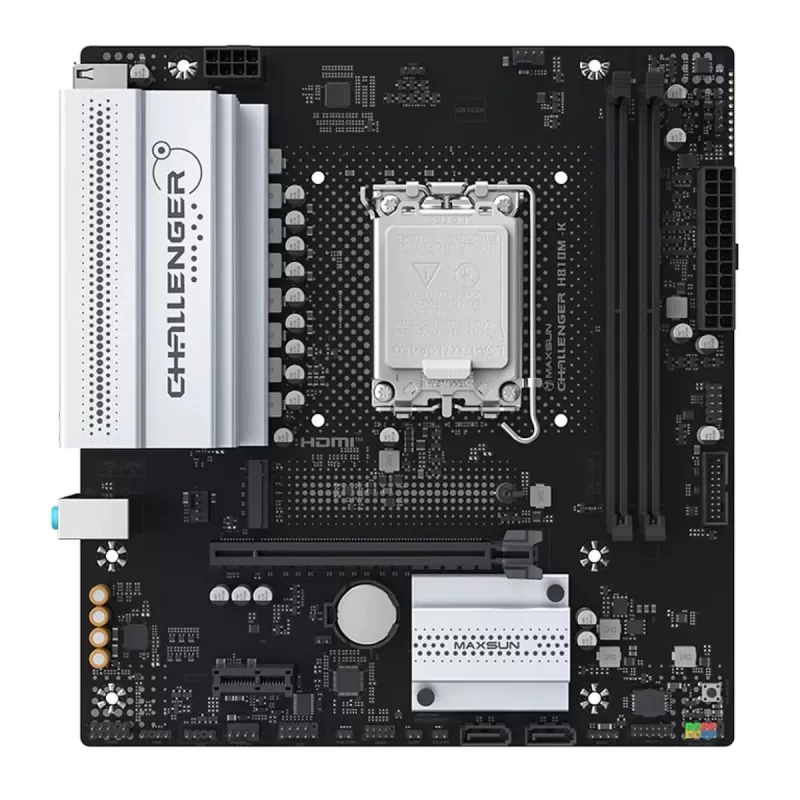

| Revew | MAXSUN Challenger H810M-K Motherboard - Intel LGA1851, DDR5, Micro ATXThe MAXSUN Challenger H810M-K is a Micro ATX board for the Intel LGA1851 platform, aimed at Core Ultra desktop builds with an emphasis on rich expansion and a user-friendly layout. It offers strong power delivery and PCIe 5.0 support. Platform & chipsetThe board is based on the Intel H810 chipset and supports Intel Core Ultra 200S processors on the LGA1851 socket. A 5+1+1 phase power design with 50A Dr.MOS components provides steady voltage to the CPU, within a compact board footprint of 225 x 205 mm.

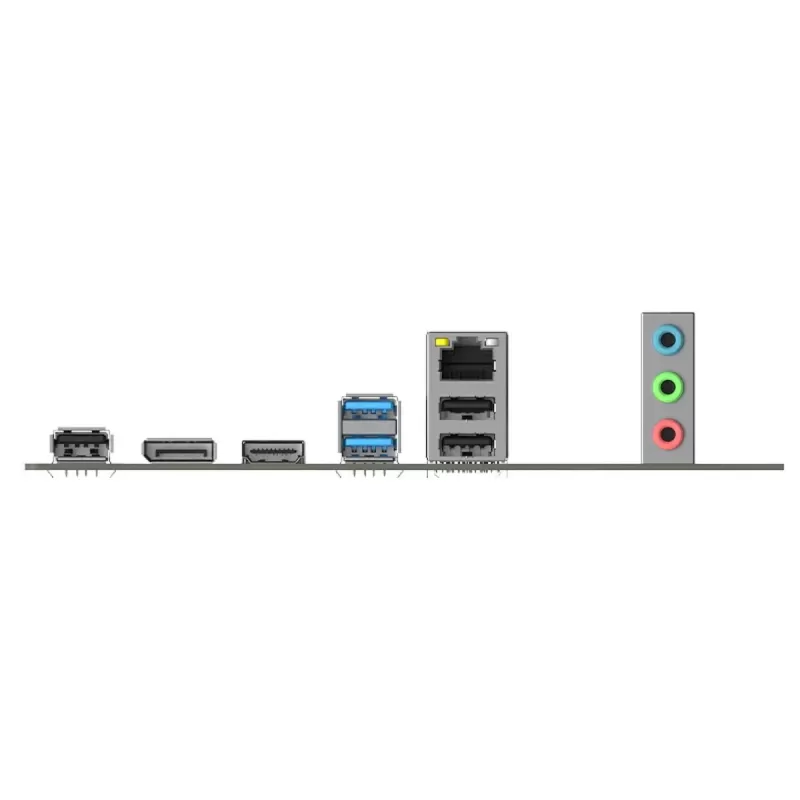

Memory & expansionThe board runs DDR5 memory and offers rich expansion: a PCIe 5.0 x16 slot for the graphics card, a PCIe x1 slot for an additional card and two SATA ports for storage. An M.2 slot with a PCIe interface is also available for fast storage. Power, cooling & connectivityA user-friendly design includes a Debug LED for quick diagnostics and a CLR_CMOS function button for resetting settings. The board supports MAXSUN Sync software for lighting synchronisation, and the I/O includes USB 2.0 and USB 3.2 ports for connecting peripherals.
|
| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | Challenger H810M-K |
| Model | Challenger H810M-K |
| Condition | New |
| Video Card | HDMI / DisplayPort |
| Manufacturer | Maxsun |
| Audio | 3 port |
| Chipset | H810 |
| Compatibility for computer assembly | Hardware and Software |
| Configuration | Micro ATX |
| Free Memory Slots | 2 |
| Interface | USB 2.0 / USB 3.2 |
| Memory Interface | SATA3 / M.2 PCIe |
| Memory Type | DDR5 |
| Socket | LGA1851 |
| Wired Communication | LAN 1 Gb/s |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard MAXSUN Challenger H810M-K DDR5 LGA1851 |
| Matching SKUs | ID:~82361~, NEW, OC: 43752, CD: MS-CHA-H810M-K, MPN: Challenger H810M-K |
