| Specification | |

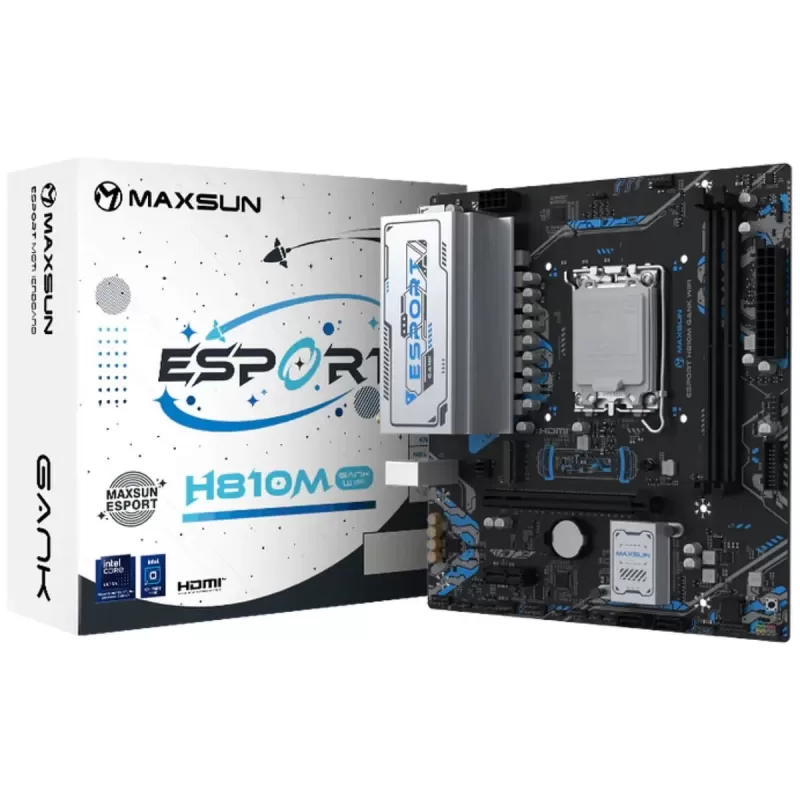

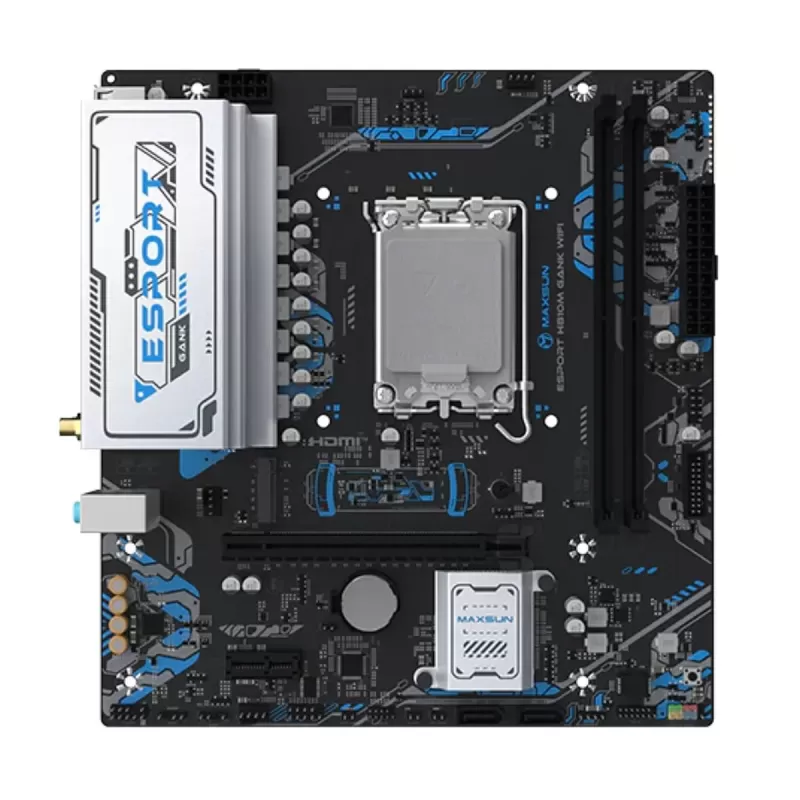

| Revew | MAXSUN eSport H810M GANK WiFi Motherboard - LGA1851 DDR5 Micro ATXThe MAXSUN eSport H810M GANK WiFi is a Micro ATX board built around Intel's fresh LGA1851 platform. It targets builders who want a current-generation foundation with DDR5 memory, integrated wireless and an orderly power layout for a compact gaming or home machine. Platform & chipsetThis board uses the Intel H810 chipset on the LGA1851 socket and supports Intel Core Ultra 200S processors. Its firmware ships with the new PTM UI BIOS, designed for a flow-state experience that keeps tuning approachable even for less experienced users.
Memory & expansionTwo DIMM slots run in dual-channel mode and accept DDR5 memory at frequencies spanning 4800 through 6400MHz, so the kit can be matched to your budget and performance goals. Expansion is handled by a PCIe 5.0 x16 slot for the graphics card plus an additional PCIe x1 slot. Power, cooling & connectivityPower delivery is arranged as a 5+1+1 phase design using 50A Dr.MOS components that feed the processor a steady voltage. Wireless connectivity covers a Wi-Fi 6 card with Bluetooth 5.2, and MAXSUN Sync support lets RGB lighting be synchronised across the whole system.
|
| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | MS-eSport H810M GANK WIFI |
| Model | eSport H810M GANK WiFi |
| Condition | New |
| Video Card | HDMI / DisplayPort |
| Manufacturer | Maxsun |
| Audio | 3 port |
| Chipset | H810 |
| Compatibility for computer assembly | Hardware and Software |
| Configuration | Micro ATX |
| Free Memory Slots | 2 |
| Interface | USB 2.0 / USB 3.2 |
| Memory Interface | SATA3 / M.2 PCIe |
| Memory Type | DDR5 |
| Socket | LGA1851 |
| Wired Communication | LAN 1 Gb/s / Wi-Fi 6/6E (802.11ax) / Bluetooth 5.2 |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard MAXSUN eSport H810M GANK WiFi DDR5 LGA1851 |
| Matching SKUs | ID:~82370~, NEW, OC: 43754, CD: MS-ESP-H810MGANKWIFI, MPN: MS-eSport H810M GANK WIFI |
