- Наличие: In stock at supplier: delivery to branch within: 4 business days
- Print:
- Brand: Maxsun
- SKU: 82724
- MPN: MS-MoDT 14450HX D4 WIFI
| Specification | |

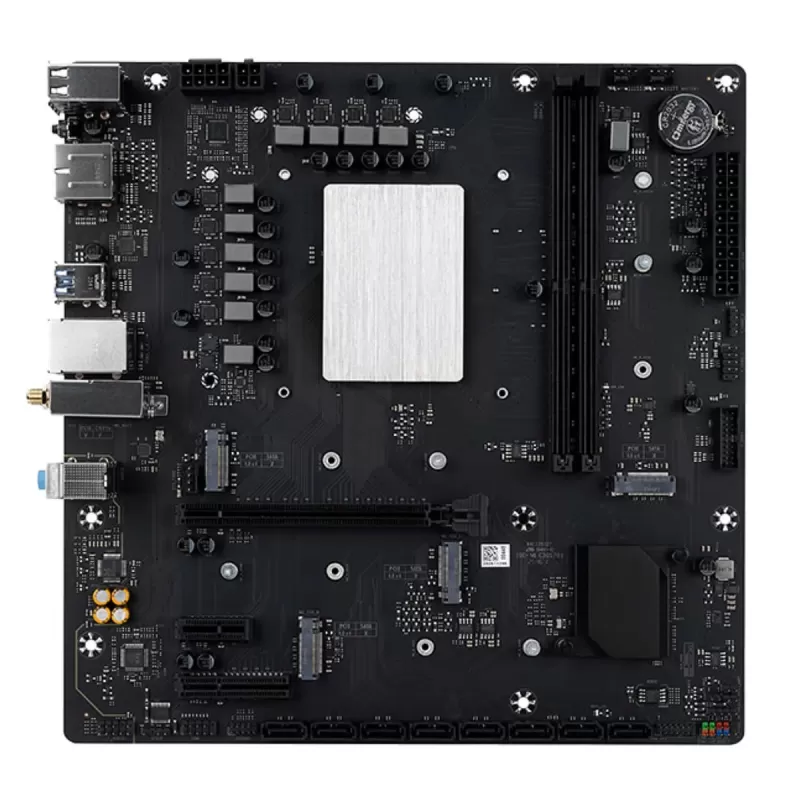

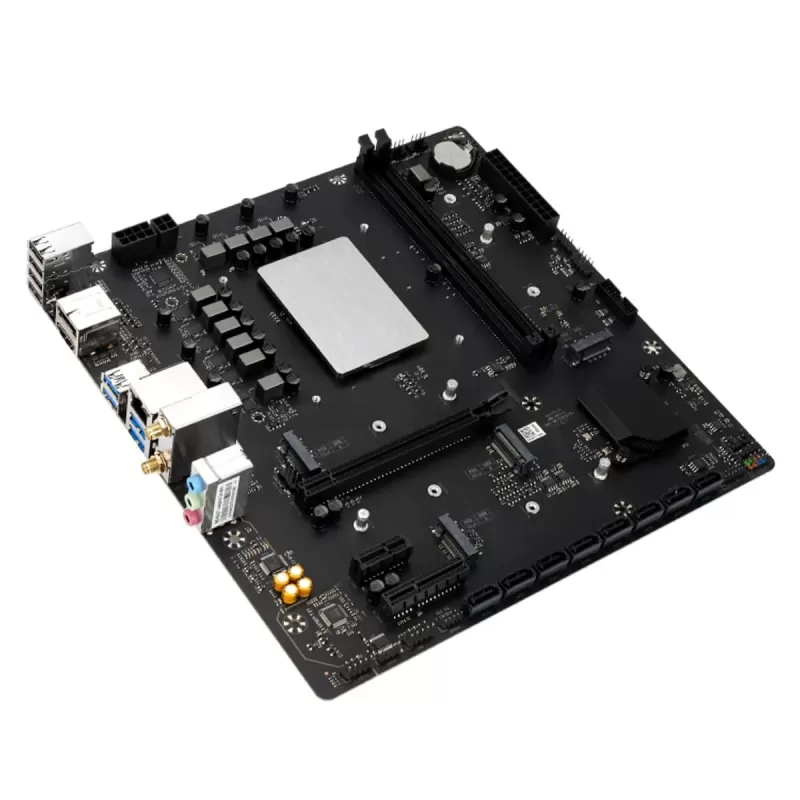

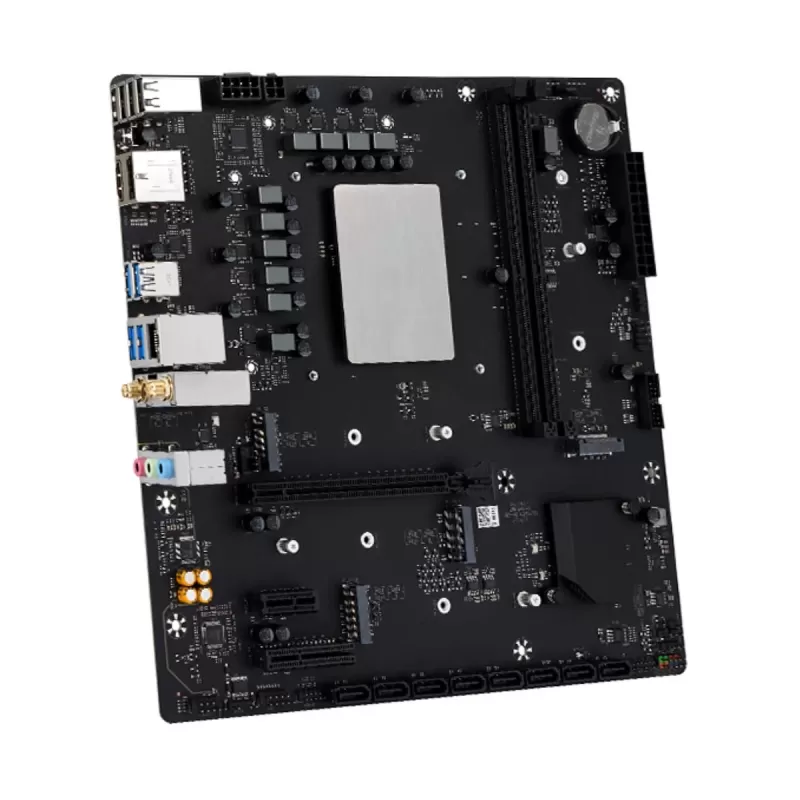

| Revew | MAXSUN MoDT 14450HX D4 WiFi Micro ATX Board with Onboard CPUThe MoDT 14450HX is a Micro ATX board of the MoDT type, meaning it integrates a mobile processor directly onto the board itself. It ships with a soldered Intel Core i5-14450HX, DDR4 memory and an unusually broad storage layout, aimed at builders who want a ready-to-run system without choosing a separate CPU. Platform & chipsetThe M-ATX board is built around the onboard Intel Core i5-14450HX processor. The MoDT approach brings a laptop-class chip into a desktop environment, producing a compact, ready-to-use platform. Power input uses a 24-pin connector plus an additional 8-pin connector, and the board comes with an instruction manual and a SATA data cable for drive connection. Memory & expansionTwo DDR4 DIMM slots support up to 64GB total in dual-channel mode, at 3200, 2933, 2666, 2400 and 2133MHz. Storage is where the board stands out: eight SATA 3.0 ports and four M-Key M.2 slots that take 2242 and 2280 drives over PCIe x4/x2 lanes. For expansion there is a PCIe 4.0 x16 slot, a PCIe 3.0 x4 slot and a PCIe 3.0 x1 slot. Power, cooling & connectivityOn the network side the board combines a Realtek 8111H Gigabit wired chip with a single RJ45 port, plus an MTK7902 Wi-Fi 6E wireless card with Bluetooth 5.3 support. The rear panel offers four USB 3.2 Gen 1 ports and four USB 2.0 ports, with internal headers for USB 3.2 Gen 1 and USB 2.0 as well. Audio is handled by a high-definition ALC897 codec, and display output is covered by DisplayPort and HDMI.
|
| Review | |
| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | MS-MoDT 14450HX D4 WIFI |
| Model | MoDT 14450HX D4 WiFi |
| Condition | New |
| Video Card | HDMI / DisplayPort |
| Manufacturer | Maxsun |
| Audio | 3 port |
| Chipset | HM770 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | Micro ATX |
| Interface | USB 2.0 / USB 3.2 / USB Type-C |
| Memory Interface | SATA3 / M.2 PCIe |
| Memory Type | DDR4 |
| Socket | without |
| Wired Communication | Wi-Fi 6/6E (802.11ax) / LAN 2.5 Gb/s / Bluetooth 5.3 |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard MAXSUN MoDT 14450HX D4 WiFi DDR4 without |
| Matching SKUs | ID:~82724~, NEW, OC: 44123, CD: MODT-14450HX-D4-WIFI, MPN: MS-MoDT 14450HX D4 WIFI |
