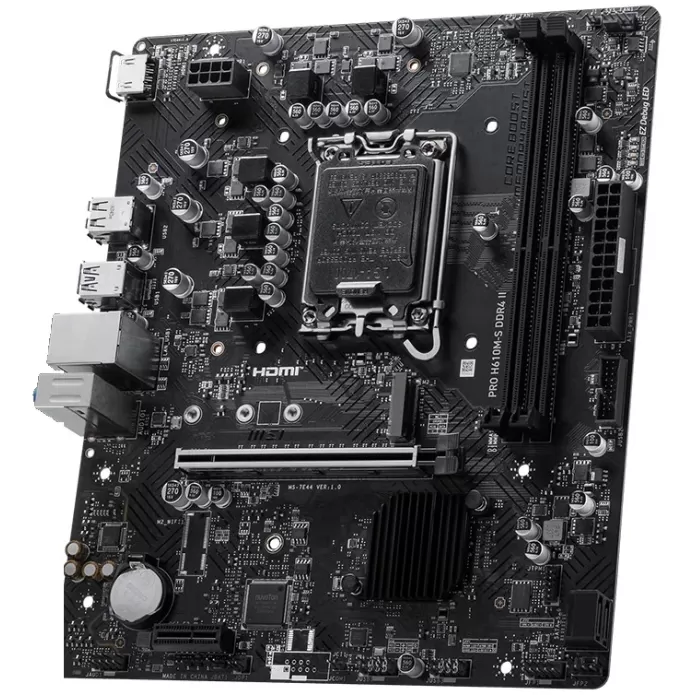

Motherboard MSI PRO H610M-S DDR4 II LGA1700

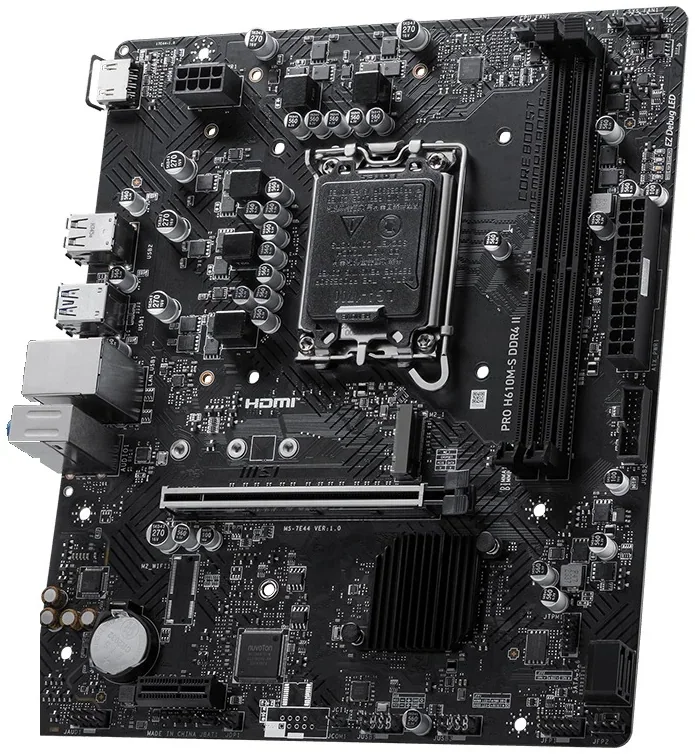

MSI PRO H610M-S DDR4 II Motherboard

The MSI PRO H610M-S DDR4 II is a Micro ATX motherboard from the PRO series, based on the Intel H610 chipset with an LGA1700 socket for 12th, 13th and 14th Gen Intel Core processors as well as Pentium Gold and Celeron. This updated version of the model has a silver-toned design and suits a budget office or home PC with DDR4 memory.

The board offers two DDR4 slots for up to 64GB at up to 3200 MHz, a Steel Armor PCIe 4.0 x16 slot, a PCIe 3.0 x4 M.2 slot, two SATA ports, Gigabit LAN and an HDMI output for the processor's integrated graphics.

Key features

• PCIe 4.0 for graphics - A PCIe 4.0 x16 slot from the CPU, up to 64GB/s, with Steel Armor that protects the graphics card against bending and interference, plus an extra PCIe 3.0 x1 slot.
• Core Boost and Memory Boost - A fully digital power design that supports multi-core processors, and an isolated DDR4 circuit for clean, stable and compatible memory signals.
• Frozr AI Cooling - Detects CPU and GPU temperatures and automatically adjusts system fan speed for a good balance between cooling and noise.
• Storage and connectivity - A PCIe 3.0 x4 M.2 slot for an NVMe drive, two SATA ports, Realtek Gigabit LAN and 7.1 audio with Audio Boost.
• Easy build and maintenance - Four EZ Debug LEDs for quick troubleshooting, solid-pin power connectors, overvoltage and overcurrent protection, and TPM 2.0 support.
