Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700

Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700
Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700
Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700
Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700
Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700
Out of stock
Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700
Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700
Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700
Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700
Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700

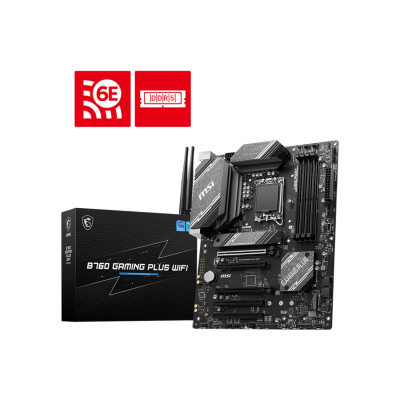

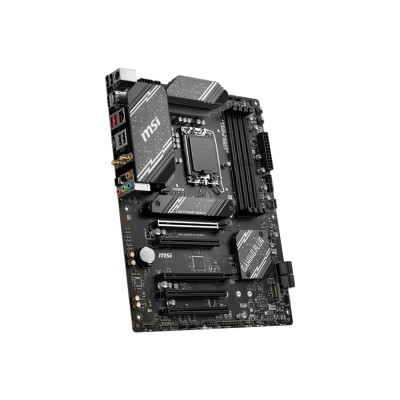

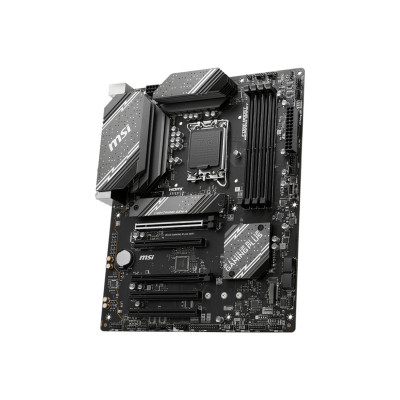

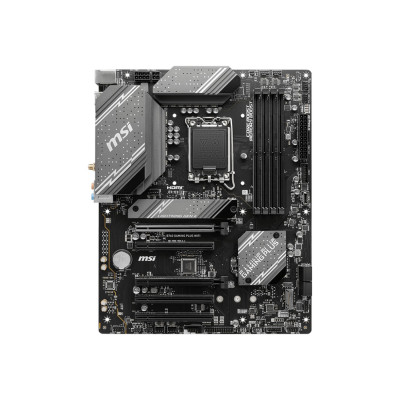

* The picture is for illustration only

A short description

Manufacturer: Msi, Socket: LGA1700, Chipset: B760, Memory Type: DDR5
Motherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 12 interest-free Credit Card (13-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted)Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Stock: Out of stock
    • Print:
    • SKU: 55075
    • MPN: B760 GAMING PLUS WIFI
    ₪863
    Review
    Warranty3 years
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberB760 GAMING PLUS WIFI
    ModelB760 GAMING PLUS WIFI
    Barcode4.71138E+12
    ConditionNew
    ManufacturerMsi
    Amtel.
    Audio

    Realtek®&ALC897 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output

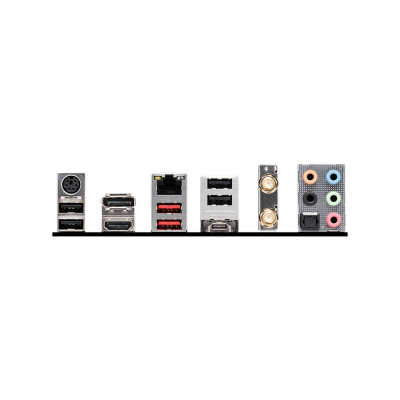

    Back Panel Connectors
    1. Keyboard / Mouse
    2. DisplayPort
    3. 2.5G LAN
    4. USB 2.0
    5. Wi-Fi / Bluetooth
    6. Audio Connectors
    7. USB 2.0
    8. HDMI™
    9. USB 3.2 Gen 2 10Gbps (Type-A)
    10. USB 3.2 Gen 2 10Gbps (Type-C)
    11. S/PDIF-OUT
    ChipsetB760
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationATX
    Dimensions243.84mmx304.8mm
    Internal Ports / Inputs

    1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    5x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Printer Port (JLPT)
    1x Com Port (JCOM)
    1x TBT connector (JTBT, supports RTD3)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen1 Type C ports

    Memory

    4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 68+(OC)/ 66(OC)/ 64(OC)/ 62(OC)/ 6(OC)/ 58(OC)/ 56(JEDEC)/ 54(JEDEC)/ 52(JEDEC)/ 5(JEDEC)/ 48(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 68+ MHz
    • 1DPC 2R Max speed up to 64+ MHz
    • 2DPC 1R Max speed up to 6+ MHz
    • 2DPC 2R Max speed up to 56+ MHz

    Supports Intel®&XMP 3. OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory

    SocketLGA1700
    Storage
    STORAGE2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
    RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Wired CommunicationRealtek RTL8125BG 2.5G LAN
    Wireless network

    Intel®&Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth®&5.3, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

    סוג הזיכרוןDDR5
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard MSI B760 GAMING PLUS WIFI DDR5 ATX LGA1700
