Motherboard MSI B860 GAMING PLUS WIFI DDR5 LGA1851

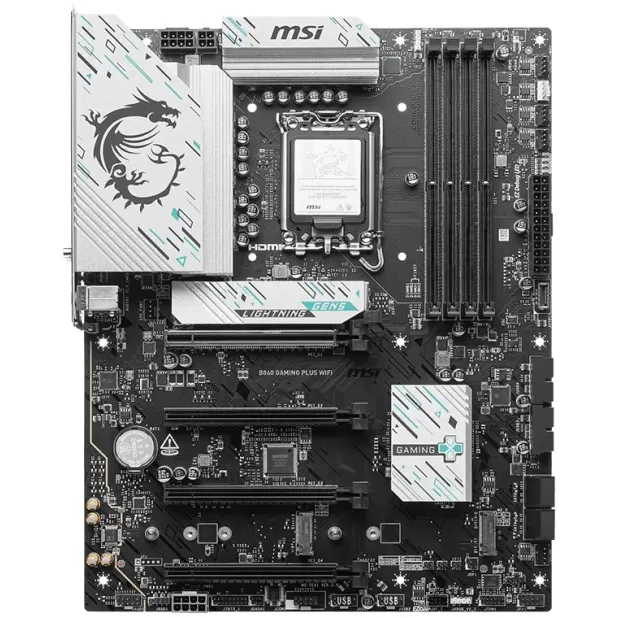

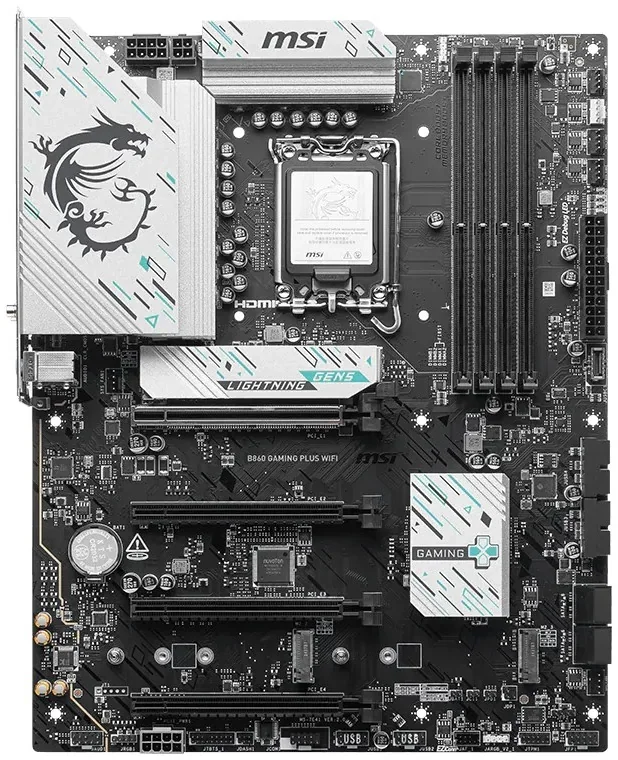

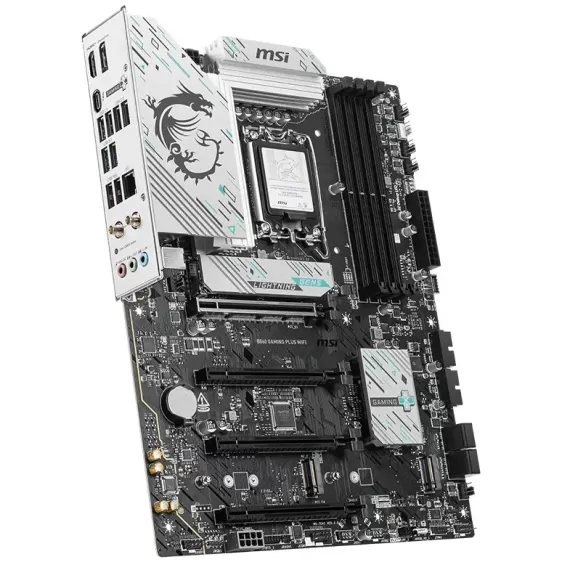

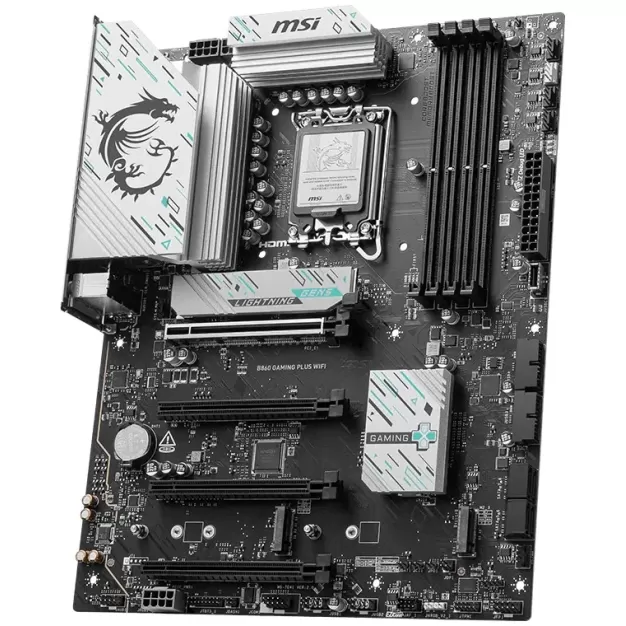

Motherboard MSI B860 GAMING PLUS WIFI

The MSI B860 GAMING PLUS WIFI is an ATX motherboard for socket LGA1851, based on the Intel B860 chipset and built for Intel Core Ultra (Series 2) processors. It takes four DDR5 modules up to 256GB at up to 8800+ MT/s and offers a PCIe 5.0 x16 slot and three M.2 slots, one of them PCIe 5.0.

Highlights include a 40Gbps Thunderbolt 4 port, Intel Killer Wi-Fi 7 and 5G wired LAN, plus EZ DIY features that make the build easier. It suits a gaming or work PC that needs advanced connectivity.

Key features

• 12+1+1+1 power design - A digital power design with 8+4-pin connectors and Core Boost, on a 6-layer server-grade PCB for stable operation.

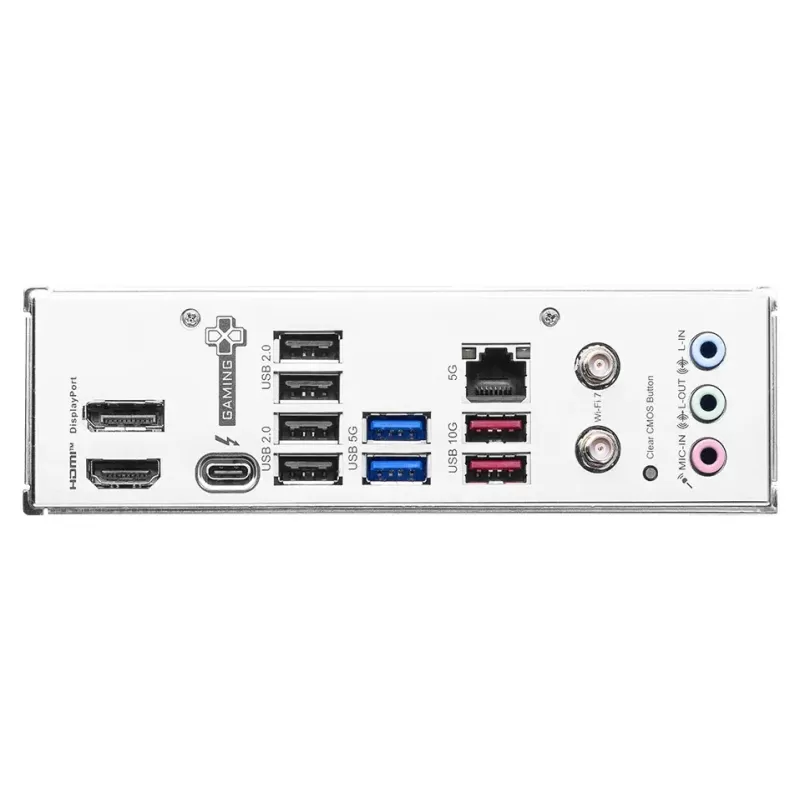

• Thunderbolt 4 - A rear Thunderbolt 4 port at up to 40Gbps, daisy-chaining up to three Thunderbolt 4 devices and carrying DisplayPort 2.1 up to 8K.
• DDR5 up to 8800+ MT/s - Four DDR5 slots up to 256GB with Intel XMP 3.0 and CUDIMM support.
• Wi-Fi 7 and Killer 5G LAN - Intel Killer BE1750x Wi-Fi 7 with 320MHz channels up to 5.8Gbps and Bluetooth 5.4, plus Intel Killer E5000 5Gbps wired LAN.
• PCIe 5.0 and three M.2 - A PCIe 5.0 x16 slot for the graphics card, three M.2 slots with M.2 Shield Frozr and a supplemental 8-pin PCIe power connector.
• EZ DIY - EZ PCIe Clip II for easy GPU release, EZ M.2 Clip II for screwless SSD installation and EZ Debug LEDs for quick troubleshooting.

Specifications
