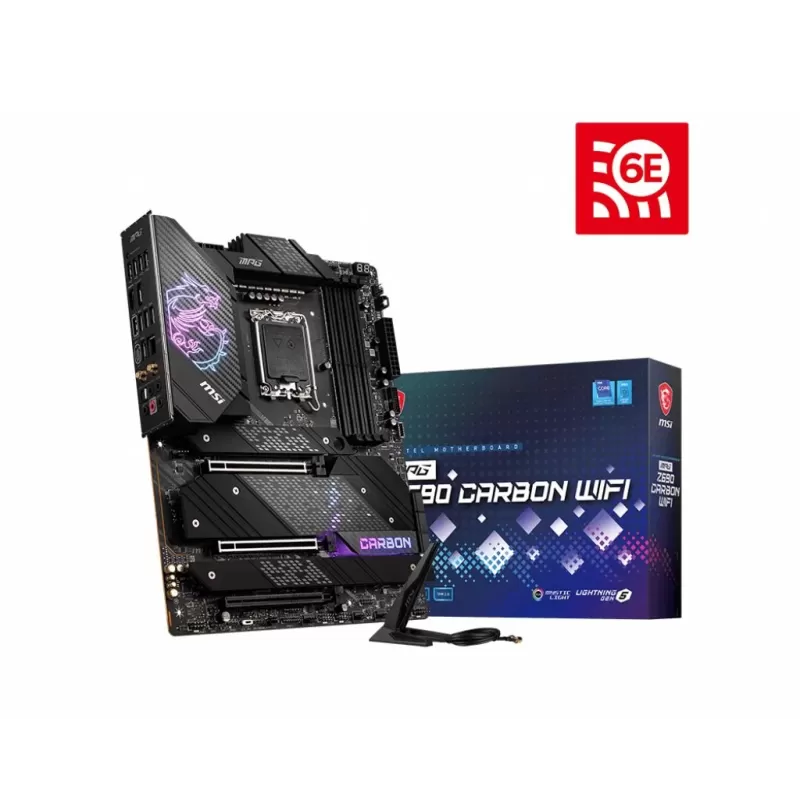

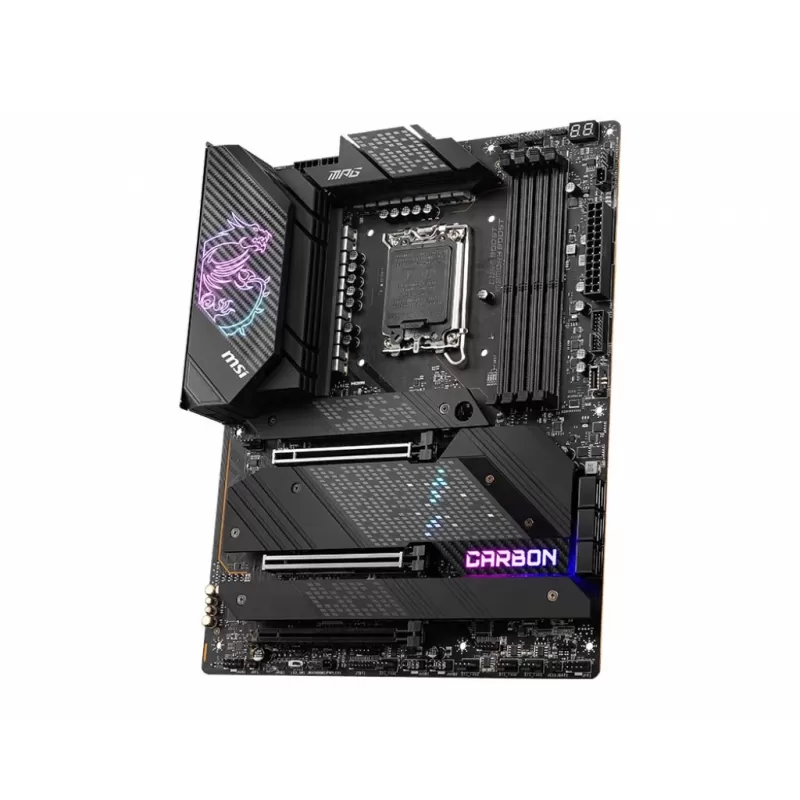

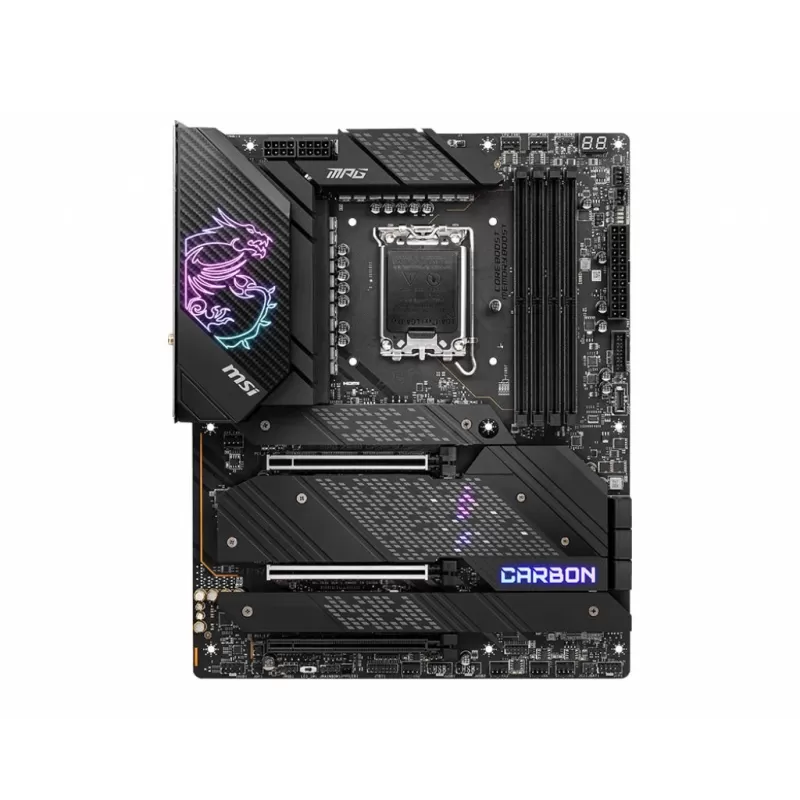

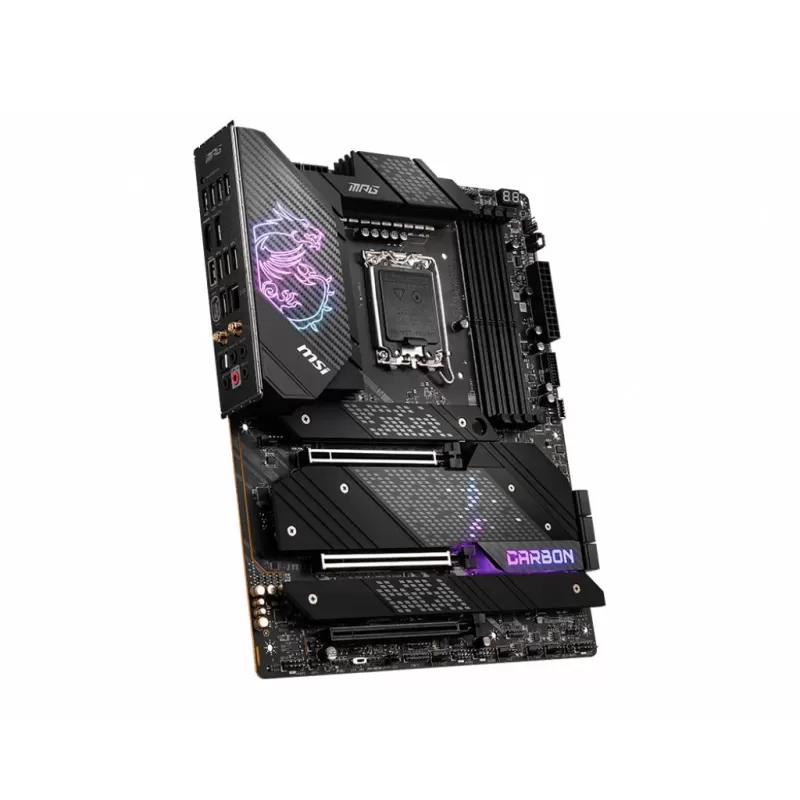

Motherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700

Motherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700
Motherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700
Motherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700
Motherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700
Motherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700
Out of stock
Motherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700
Motherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700
Motherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700
Motherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700
Motherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700

* The picture is for illustration only

Short review: MSI MPG Z690 CARBON WIFI - memory 128GB, memory type DDR5, cpu socket LGA1700, chipset Z690. Suited for building a PC or upgrading the platform., Manufacturer: Msi, Socket: LGA1700, Chipset: Z690, Memory Volume: 128GB, Memory Type: DDR5, Condition: New, SKU: 50628
Motherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: Out of stock
    • Print:
    • Brand: Msi
    • SKU: 50628
    • MPN: MPG Z690 CARBON WIFI
    Msi Msi
    Out of stock
    Add to Wish List Compare this Product
    Send us a question on WhatsApp
    Send a question about this product
    Specification
    Revew

    MSI MPG Z690 CARBON WIFI

    MSI MPG Z690 CARBON WIFI - memory 128GB, memory type DDR5, cpu socket LGA1700, chipset Z690. Suited for building a PC or upgrading the platform.

    The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade.

    Key specifications

    • Memory: 128GB
    • Memory type: DDR5
    • CPU socket: LGA1700
    • Chipset: Z690

    What it is for

    This product is intended for building a PC or upgrading the platform.

    Product identification

    Manufacturer part number: MPG Z690 CARBON WIFI. Use it to confirm that accessories and spare parts match.

    Review
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberMPG Z690 CARBON WIFI
    ModelMPG Z690 CARBON WIFI
    ConditionNew
    ManufacturerMsi
    Audio

    Realtek®&ALC4080 Codec

    • 7.1-Channel High Definition Audio
    • Supports S/PDIF output

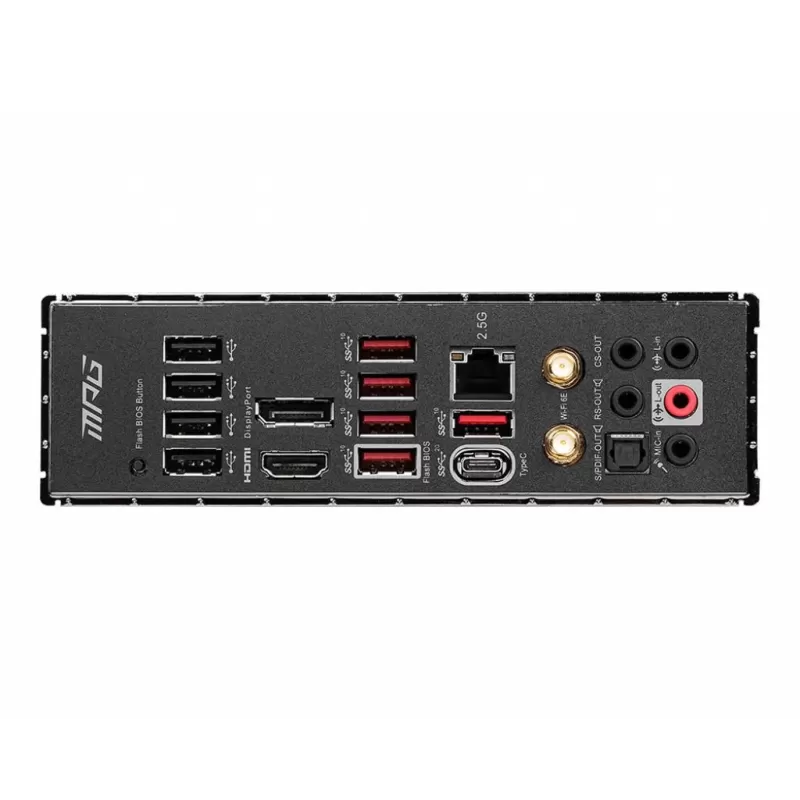

    Back Panel Connectors
    1. USB 2.0
    2. DisplayPort
    3. 2.5G LAN
    4. Wi-Fi/Bluetooth
    5. Audio Connectors
    6. Flash BIOS Button
    7. HDMI
    8. USB 3.2 Gen 2 10Gbps Type-A
    9. USB 3.2 Gen 2x2 20Gbps Type-C
    10. Optical S/PDIF Out
    ChipsetZ690
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationATX
    Internal Ports / Inputs
    • 1x 24-pin ATX main power connector
    • 2x 8-pin ATX 12V power connectors
    • 6x SATA 6Gb/s connectors
    • 5x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 2 10Gbps Type-C connector
    • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump fan connector
    • 6x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 1x Clear CMOS jumper
    • 1x TPM module connector
    • 1x TBT connector (supports RTD3)
    • 1x Tuning Controller connector
    Memory
    • 4x DDR5 memory slots, support up to 128GB1
    • Supports 1R 5600 MHz (by JEDEC & POR)
    • Max. overclocking frequency:
      • 1DPC 1R Max speed up to 6666+ MHz
      • 1DPC 2R Max speed up to 6000+ MHz
      • 2DPC 1R Max speed up to 6000+ MHz
      • 2DPC 2R Max speed up to 5600+ MHz
    • Supports Intel®&XMP 3.0 OC
    • Supports Dual Controller Dual-Channel mode
    • Supports non-ECC, un-buffered memory
    Memory TypeDDR5
    Memory Volume128GB
    SocketLGA1700
    Storage
    • 4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset)1
    • 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061)
    • 5x M.2 slots (Key M)
      • M2_1 slot (From CPU)
        • Supports PCIe 4.0 x4
        • Supports 2260/ 2280/ 22110 storage devices
      • M2_2 slot (From Z690 Chipset)
        • Supports PCIe 4.0 x4
        • Supports 2260/ 2280 storage devices
      • M2_3 slot (From Z690 Chipset)
        • Supports PCIe 4.0 x4
        • Supports 2242/ 2260/ 2280/ 22110 storage devices
      • M2_4 slot (From Z690 Chipset)1
        • Supports PCIe 3.0 x4
        • Supports SATA 6Gb/s
        • Supports 2242/ 2260/ 2280 storage devices
      • M2_5 slot (From Z690 Chipset)
        • Supports PCIe 4.0 x4
        • Supports SATA 6Gb/s
        • Supports 2260/ 2280 storage devices
      • M2_2~5 support Intel®&Optane™ Memory
    • Supports Intel®&Smart Response Technology for Intel Core™ processors
    1. SATA7 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.
    Wired Communication1x Intel I225V 2.5Gbps LAN controller
    Wireless network

    Intel®&Wi-Fi 6E module

    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz&1(160MHz) up to 2.4Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax
    • Supports Bluetooth 5.22, FIPS, FISMA
    1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11.
    2. Bluetooth 5.2 will be ready in WIN10 21H1 and Windows11.
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard MSI MPG Z690 CARBON WIFI DDR5 LGA1700
    Matching SKUsID:~50628~, NEW, OC: 33670, AMT: 4719072886530, MPN: MPG Z690 CARBON WIFI
    Tags: Msi , MPG Z690 CARBON WIFI , LGA1700 , Z690 , 128GB , DDR5
