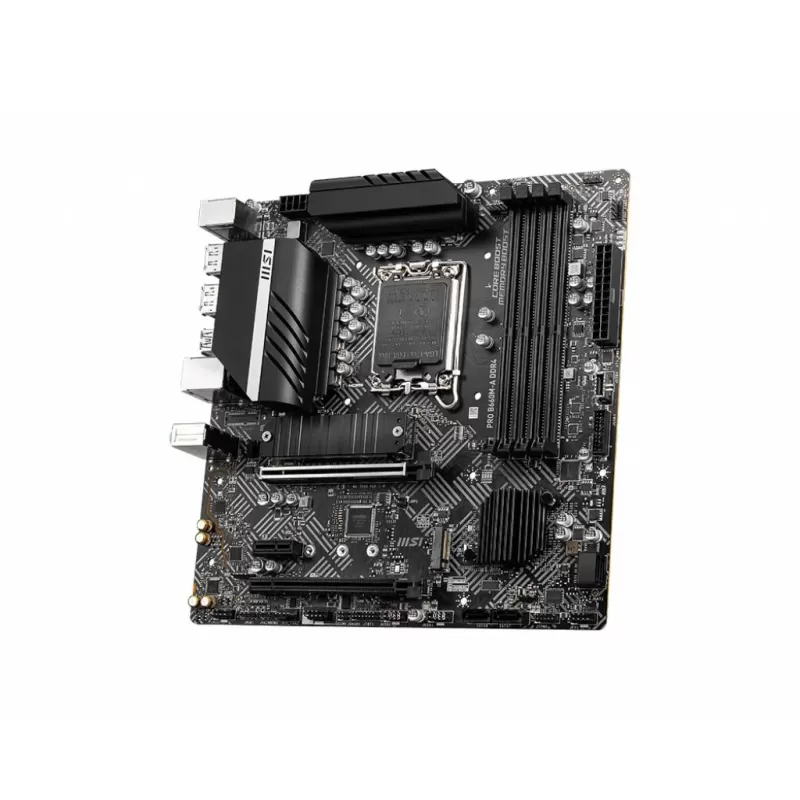

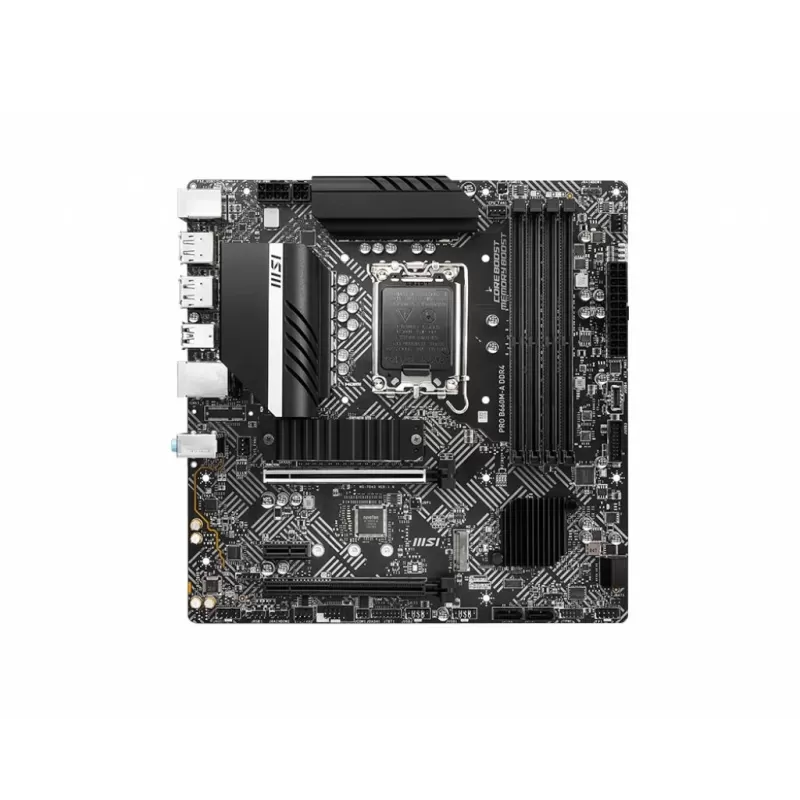

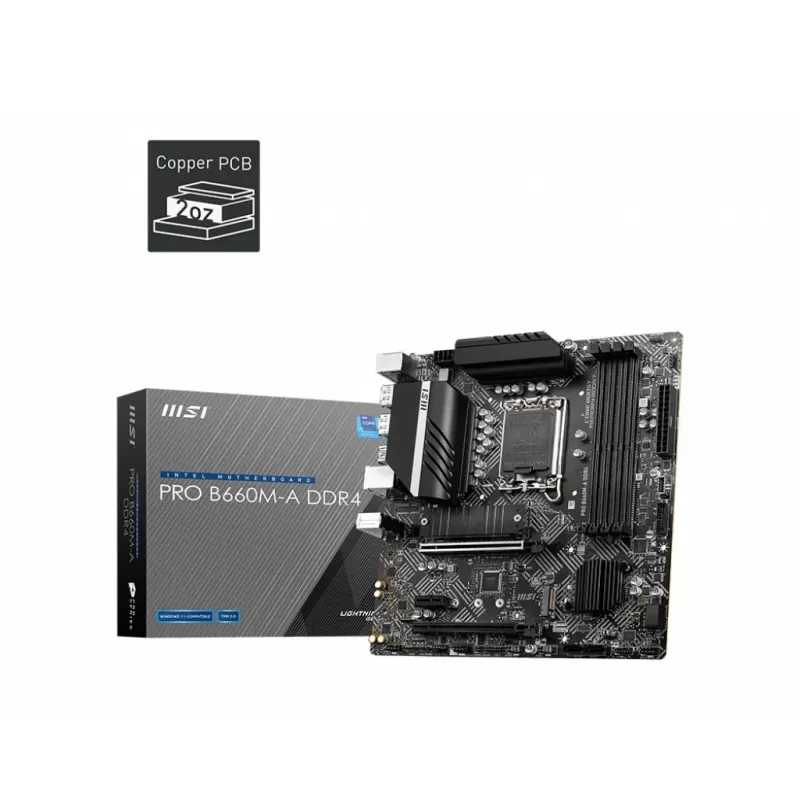

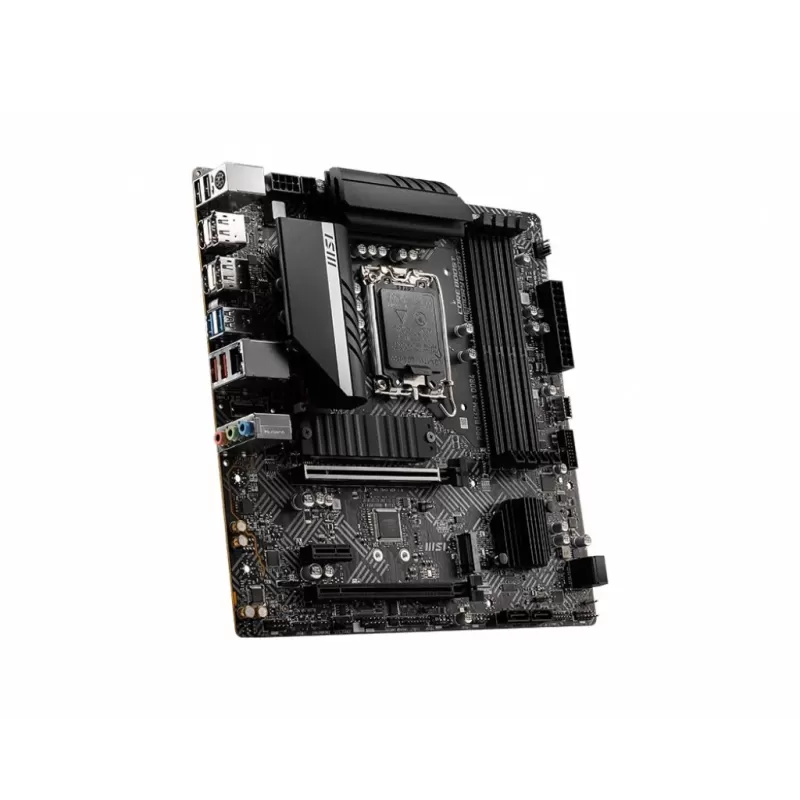

Motherboard MSI PRO B660M-A DDR4 LGA1700

Motherboard MSI PRO B660M-A DDR4 LGA1700
Motherboard MSI PRO B660M-A DDR4 LGA1700
Motherboard MSI PRO B660M-A DDR4 LGA1700
Motherboard MSI PRO B660M-A DDR4 LGA1700
Motherboard MSI PRO B660M-A DDR4 LGA1700
Out of stock
Motherboard MSI PRO B660M-A DDR4 LGA1700
Motherboard MSI PRO B660M-A DDR4 LGA1700
Motherboard MSI PRO B660M-A DDR4 LGA1700
Motherboard MSI PRO B660M-A DDR4 LGA1700
Motherboard MSI PRO B660M-A DDR4 LGA1700

* The picture is for illustration only

Short review: MSI PRO B660M-A DDR4 - memory 128GB, memory type DDR4, cpu socket LGA1700, chipset B660. Suited for building a PC or upgrading the platform., Manufacturer: Msi, Socket: LGA1700, Chipset: B660, Memory Volume: 128GB, Memory Type: DDR4, Condition: New, SKU: 50616
Motherboard MSI PRO B660M-A DDR4 LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted)Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: Out of stock
    • Print:
    • Brand: Msi
    • SKU: 50616
    • MPN: PRO B660M-A DDR4
    Specification
    Revew

    MSI PRO B660M-A DDR4

    MSI PRO B660M-A DDR4 - memory 128GB, memory type DDR4, cpu socket LGA1700, chipset B660. Suited for building a PC or upgrading the platform.

    The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade.

    Key specifications

    • Memory: 128GB
    • Memory type: DDR4
    • CPU socket: LGA1700
    • Chipset: B660

    What it is for

    This product is intended for building a PC or upgrading the platform.

    Product identification

    Manufacturer part number: PRO B660M-A DDR4. Use it to confirm that accessories and spare parts match.

    Review
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberPRO B660M-A DDR4
    ModelPRO B660M-A DDR4
    ConditionNew
    ManufacturerMsi
    Audio

    Realtek®&ALC897 Codec

    • 7.1-Channel High Definition Audio
    Back Panel Connectors
    1. Keyboard / Mouse
    2. DisplayPort
    3. USB 3.2 Gen 1 5Gbps Type-A
    4. LAN port
    5. Audio connector
    6. USB 2.0
    7. HDMI
    8. USB 3.2 Gen 2 10Gbps Type-A
    ChipsetB660
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationMicro-ATX
    Internal Ports / Inputs
    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 1x 4-pin ATX 12V power connector
    • 4x SATA 6Gb/s connectors
    • 2x M.2 slots (M-Key)
    • 1x USB 3.2 Gen 1 5Gbps Type-C port
    • 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin water-pump fan connector
    • 2x 4-pin system fan connectors
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Chassis Intrusion connector
    • 1x TPM module connector
    • 1x Clear CMOS jumper
    • 1x TBT connector (supports RTD3)
    • 1x Serial port
    • 1x Tuning Controller connector
    Memory
    • 4x DDR4 memory slots, support up to 128GB&1
    • Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
    • Max overclocking frequency:
      • 1DPC 1R Max speed up to 5333+ MHz
      • 1DPC 2R Max speed up to 4000+ MHz
      • 2DPC 1R Max speed up to 4000+ MHz
      • 2DPC 2R Max speed up to 3600+ MHz
    • Supports Dual-Channel mode
    • Supports non-ECC, un-buffered memoryy
    • Supports Intel®&Extreme Memory Profile (XMP)
    Memory TypeDDR4
    Memory Volume128GB
    SocketLGA1700
    Storage
    • 4x SATA 6Gb/s ports (From B660 chipset)
    • 2x M.2 slots (Key M)
      • M2_1 slot (From CPU)
        • Supports up to PCIe 4.0 x4
        • Supports 2242/ 2260/ 2280 storage devices
      • M2_2 slot (From B660 chipset)
        • Supports up to PCIe 4.0 x4
        • Supports up to SATA 6Gb/s
        • Supports 2242/ 2260/ 2280 storage devices
        • Supports Intel® Optane™ Memory
    • Support Intel®&Smart Response Technology for Intel Core™ processors
    Wired Communication1x Realtek RTL8125BG 2.5Gbps LAN controller
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard MSI PRO B660M-A DDR4 LGA1700
    Matching SKUsID:~50616~, NEW, OC: 33669, AMT: 4719072921460, MPN: PRO B660M-A DDR4
