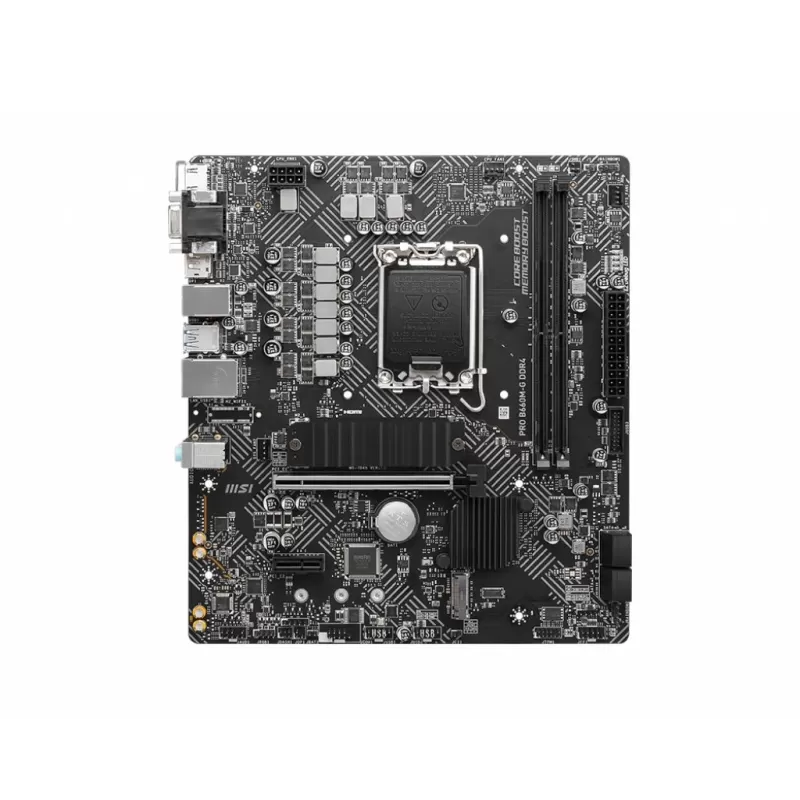

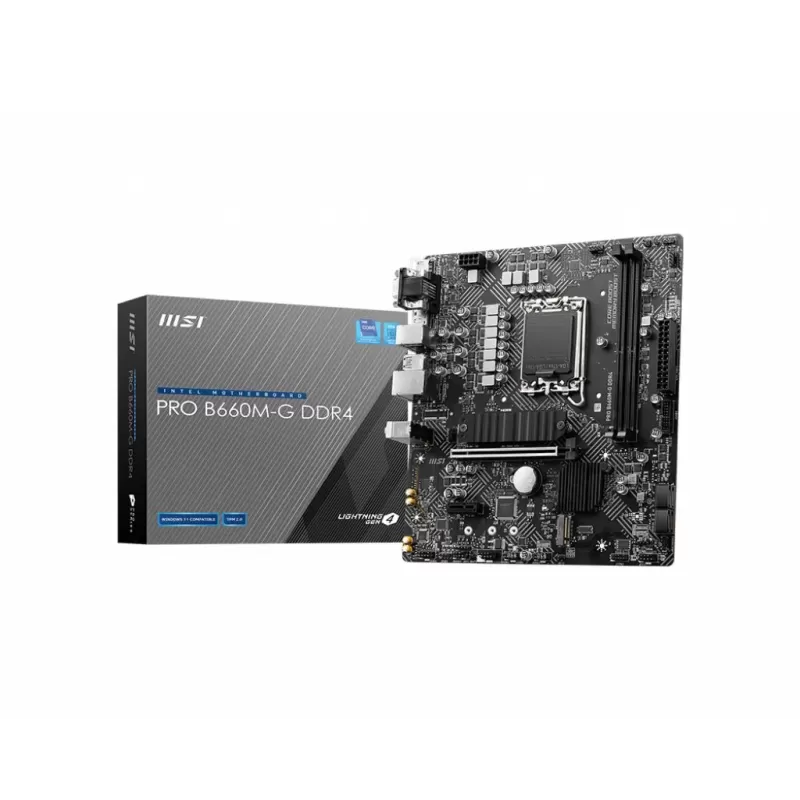

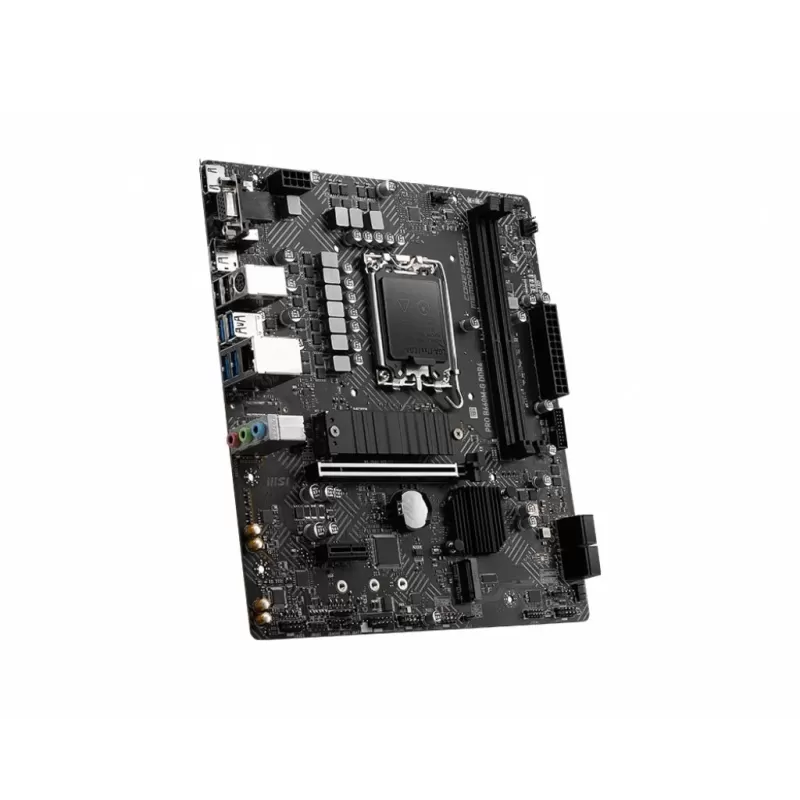

Motherboard MSI PRO B660M-G DDR4 LGA1700

Motherboard MSI PRO B660M-G DDR4 LGA1700
Motherboard MSI PRO B660M-G DDR4 LGA1700
Motherboard MSI PRO B660M-G DDR4 LGA1700
Motherboard MSI PRO B660M-G DDR4 LGA1700
Out of stock
Motherboard MSI PRO B660M-G DDR4 LGA1700
Motherboard MSI PRO B660M-G DDR4 LGA1700
Motherboard MSI PRO B660M-G DDR4 LGA1700
Motherboard MSI PRO B660M-G DDR4 LGA1700

* The picture is for illustration only

Short review: MSI PRO B660M-G DDR4 - memory 64GB, memory type DDR4, cpu socket LGA1700, chipset B660. Suited for building a PC or upgrading the platform., Manufacturer: Msi, Socket: LGA1700, Chipset: B660, Memory Volume: 64GB, Memory Type: DDR4, Condition: New, SKU: 50604
Motherboard MSI PRO B660M-G DDR4 LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: Out of stock
    • Print:
    • Brand: Msi
    • SKU: 50604
    • MPN: PRO B660M-G DDR4
    Msi Msi
    Out of stock
    Add to Wish List Compare this Product
    Send us a question on WhatsApp
    Send a question about this product
    Specification
    Revew

    MSI PRO B660M-G DDR4

    MSI PRO B660M-G DDR4 - memory 64GB, memory type DDR4, cpu socket LGA1700, chipset B660. Suited for building a PC or upgrading the platform.

    The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade.

    Key specifications

    • Memory: 64GB
    • Memory type: DDR4
    • CPU socket: LGA1700
    • Chipset: B660

    What it is for

    This product is intended for building a PC or upgrading the platform.

    Product identification

    Manufacturer part number: PRO B660M-G DDR4. Use it to confirm that accessories and spare parts match.

    Review
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberPRO B660M-G DDR4
    ModelPRO B660M-G DDR4
    ConditionNew
    ManufacturerMsi
    Audio

    Realtek®&ALC897 Codec

    • 7.1-Channel High Definition Audio

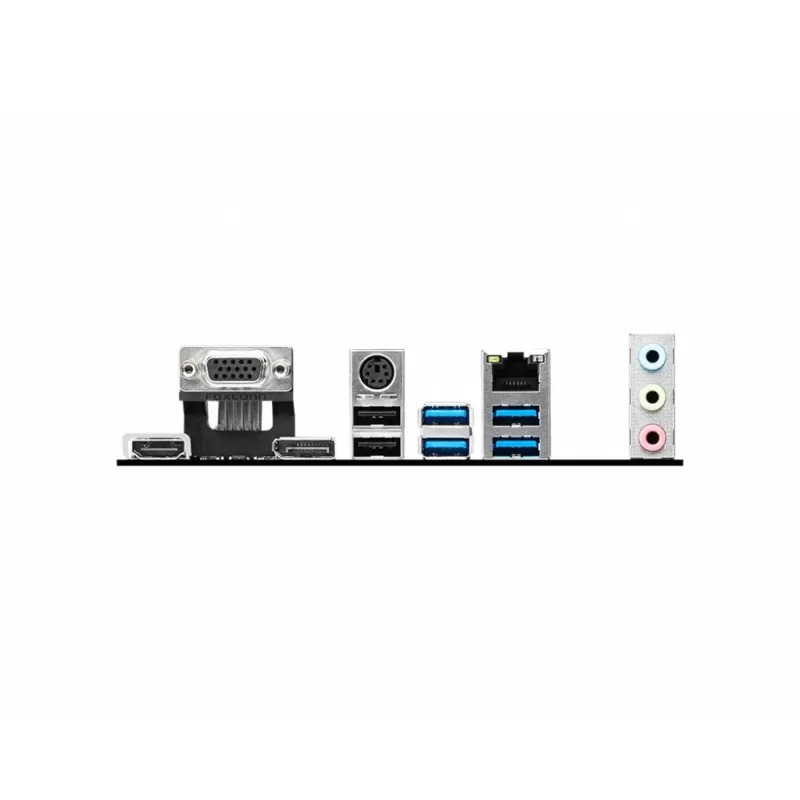

    Back Panel Connectors
    1. VGA
    2. Keyboard / Mouse
    3. LAN port
    4. Audio connector
    5. HDMI
    6. DisplayPort
    7. USB 2.0
    8. USB 3.2 Gen 1 5Gbps Type-A
    ChipsetB660
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationMicro ATX
    Internal Ports / Inputs
    • 1x 24-pin ATX main power connector
    • 1x 8-pin ATX 12V power connector
    • 4x SATA 6Gb/s connectors
    • 2x USB 2.0 connector (support additional 4 USB ports)
    • 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
    • 1x 4-pin CPU fan connector
    • 2x 4-pin system fan connectorx
    • 1x Front panel audio connector
    • 2x System panel connectors
    • 1x Serial port connector
    • 1x TPM module connector
    • 1x Chassis Intrusion connector
    • 1x Clear CMOS jumper
    • 1x JRGB
    • 2x JRAINBOW
    • 1x Tuning Controller Connector
    Memory
    • 2x DDR4 memory slots, support up to 64GB&1
    • Supports ADL-s 1R 2133/2666/2933/3200 MHz&1
      • 1DPC 1R Max speed up to 4600+ MHz
      • 1DPC 2R Max speed up to 4000+ MHz
    • Supports Dual-Channel mode
    • Supports non-ECC, un-buffered memory
    • Supports Intel®&Extreme Memory Profile (XMP)
    Memory TypeDDR4
    Memory Volume64GB
    SocketLGA1700
    Storage
    • 4x SATA 6Gb/s ports (From B660 chipset)&1
    • 2x M.2 slots (Key M)
      • M2_1 slot (From CPU)
        • Supports PCIe 4.0 x4
        • Supports 2242/ 2260/ 2280 storage devices
      • M2_2 slot (From B660 chipset)&1
        • Supports PCIe 4.0 x4
        • Supports SATA 6Gb/s
        • Supports 2242/ 2260/ 2280 storage devices
        • Supports Intel® Optane™ Technology
    • SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
    Wired Communication1x Realtek RTL8125BG 2.5Gbps LAN controller
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard MSI PRO B660M-G DDR4 LGA1700
    Matching SKUsID:~50604~, NEW, OC: 33667, AMT: 4719072912475, MPN: PRO B660M-G DDR4
    Tags: Msi , PRO B660M-G DDR4 , LGA1700 , B660 , 64GB , DDR4
