Motherboard MSI PRO B760M-E DDR5 mATX LGA1700

Motherboard MSI PRO B760M-E DDR5 mATX LGA1700
Motherboard MSI PRO B760M-E DDR5 mATX LGA1700
Motherboard MSI PRO B760M-E DDR5 mATX LGA1700
Motherboard MSI PRO B760M-E DDR5 mATX LGA1700
Motherboard MSI PRO B760M-E DDR5 mATX LGA1700
In the importer's stock
Motherboard MSI PRO B760M-E DDR5 mATX LGA1700
Motherboard MSI PRO B760M-E DDR5 mATX LGA1700
Motherboard MSI PRO B760M-E DDR5 mATX LGA1700
Motherboard MSI PRO B760M-E DDR5 mATX LGA1700
Motherboard MSI PRO B760M-E DDR5 mATX LGA1700

* The picture is for illustration only

A short description

Manufacturer: Msi, Socket: LGA1700, Chipset: B760, Memory Type: DDR5
Motherboard MSI PRO B760M-E DDR5 mATX LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 12 interest-free Credit Card (13-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted)Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Stock: In the importer's stock (delivery to the branch up to 5 working days)
    • Print:
    • SKU: 55078
    • MPN: PRO B760M-E
    ₪496
    Review
    Warranty3 years
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberPRO B760M-E
    ModelPRO B760M-E
    Barcode4.71138E+12
    ConditionNew
    ManufacturerMsi
    Amtel.
    Audio

    Realtek®&ALC897 Codec
    7.1-Channel High Definition Audio

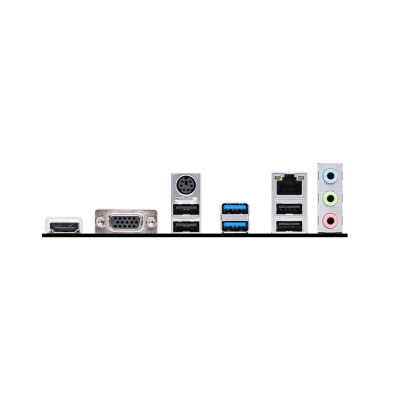

    Back Panel Connectors
    • HDMI™
    • VGA
    • Keyboard / Mouse
    • USB 3.2 Gen 1 5Gbps (Type-A)
    • LAN port
    • Audio Connectors
    • USB 2.0
    • USB 2.0
    ChipsetB760
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationmATX
    Dimensions200mmx236.16mm
    Internal Ports / Inputs

    1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports

    Memory

    2x DDR5, Maximum Memory Capacity 96GB
    Memory Support DDR5 64+(OC)/ 62(OC)/ 6(OC)/ 58(OC)/ 56(JEDEC)/ 54(JEDEC)/ 52(JEDEC)/ 5(JEDEC)/ 48(JEDEC)
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 64+ MHz
    • 1DPC 2R Max speed up to 56+ MHz

    Supports Intel®&XMP 3. OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory

    SocketLGA1700
    Storage
    STORAGE1x M.2
    M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
    RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Wired CommunicationRealtek RTL8111H Gigabit LAN
    סוג הזיכרוןDDR5
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard MSI PRO B760M-E DDR5 mATX LGA1700
