Out of stock
* The picture is for illustration only
Short review: Asus PRIME B660M-A D4 - memory 128GB, memory type DDR4, cpu socket LGA1700, chipset B660. Suited for building a PC or upgrading the platform., Manufacturer: Asus, Socket: LGA1700, Chipset: B660, Memory Volume: 128GB, Memory Type: DDR4 DIMM, Condition: New, SKU: 47380

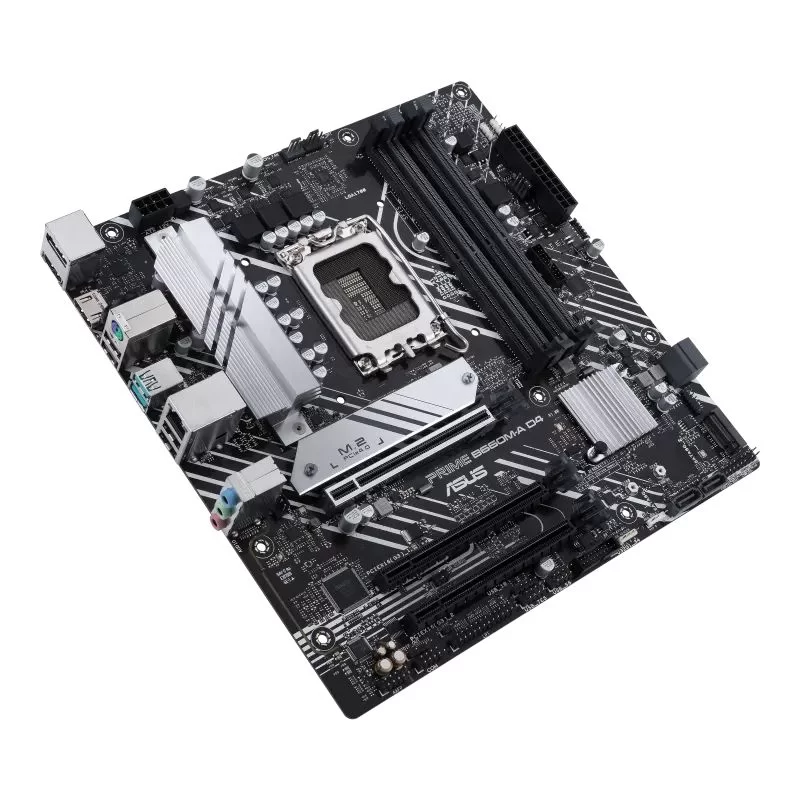

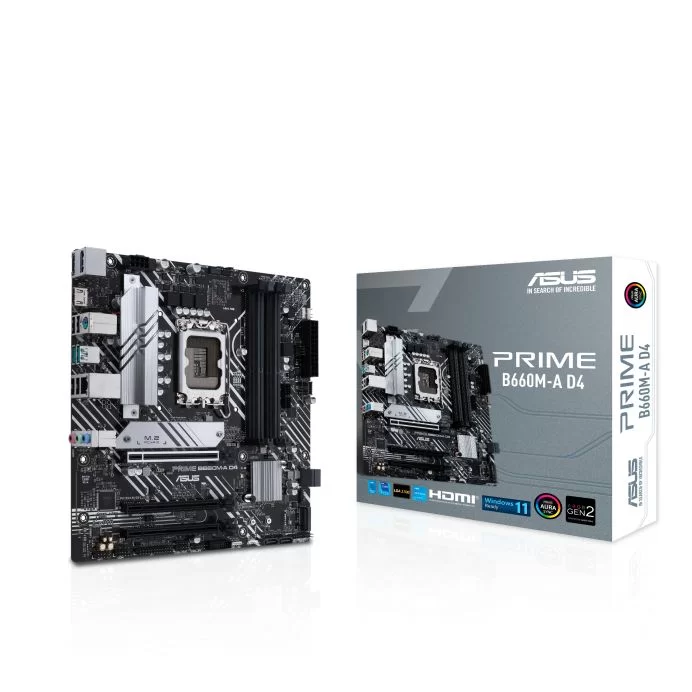

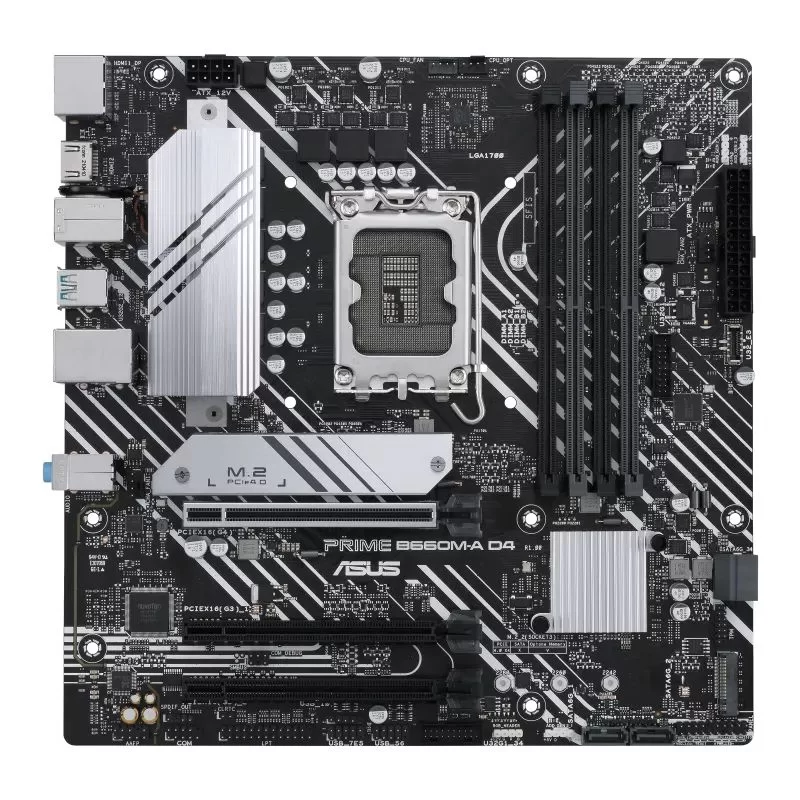

Motherboard Asus PRIME B660M-A D4 DDR4 DIMM LGA1700
Pick up and delivery options:
- Collection from the Ashdod branch - 0₪
- PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
- Home delivery - 45 shekels - over 2999₪ - Free Delivery
- Self-collection from the importer - 0₪ - contact us for pick up option
*Except for cases of abnormal size/weight
Payment options:
- Up to 6 interest-free Credit Card (7-36 with interest) payments through a website, phone, or Ashdod branch
- Bank transfer (Deferred payment not accepted), Bit, PayBox
- Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
- PayPal - Only Shipments With a Tracking Number
| Specification | |
| Revew | Asus PRIME B660M-A D4Asus PRIME B660M-A D4 - memory 128GB, memory type DDR4, cpu socket LGA1700, chipset B660. Suited for building a PC or upgrading the platform. The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade. Key specifications
What it is forThis product is intended for building a PC or upgrading the platform. Product identificationManufacturer part number: PRIME B660M-A D4. Use it to confirm that accessories and spare parts match. |
| Review | |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | PRIME B660M-A D4, 90MB19K0-M0EAY0, 90MB19K0-M1EAY0 |
| Model | PRIME B660M-A D4 |
| Condition | New |
| Manufacturer | Asus |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback& Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |

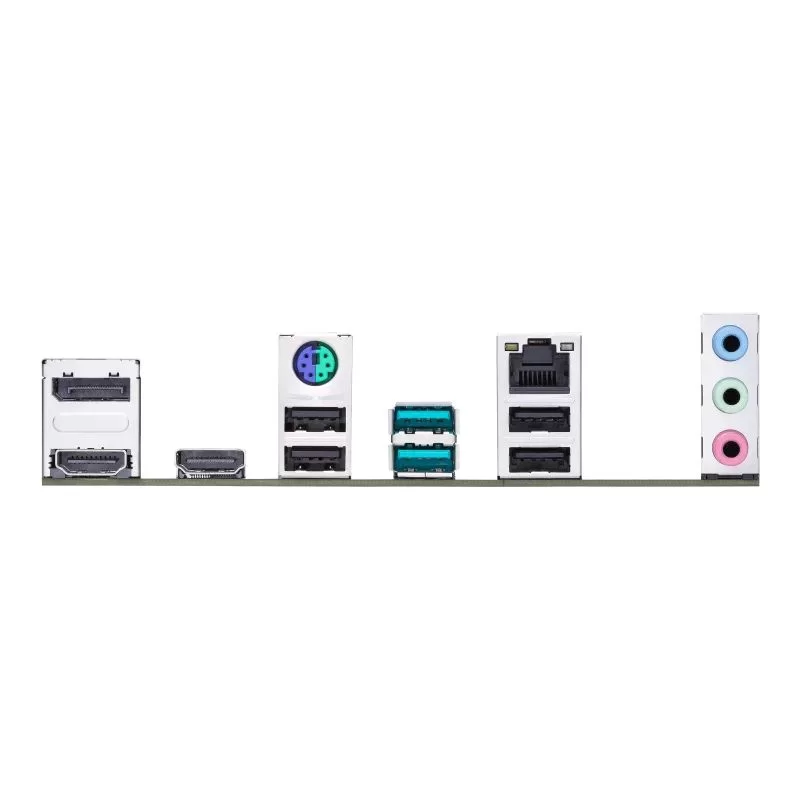

| Back Panel Connectors | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI®&ports 1 x Intel®&1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Chipset | B660 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | Micro ATX |
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header supports 1 USB 2.0 port Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Memory Type | DDR4 DIMM |
| Memory Volume | 128GB |
| Socket | LGA1700 |
| Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel®&12th&Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel®&12th&Gen processors support PCIe 4.0 x4 mode. Intel®&B660 Chipset ** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports |
| Wired Communication | 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI®&ports 1 x Intel®&1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |

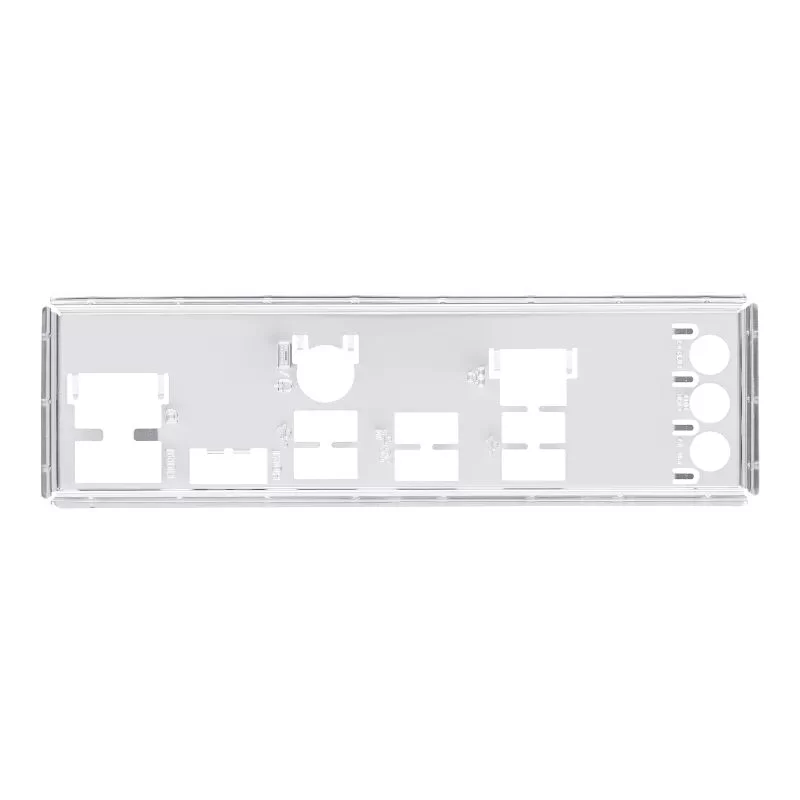

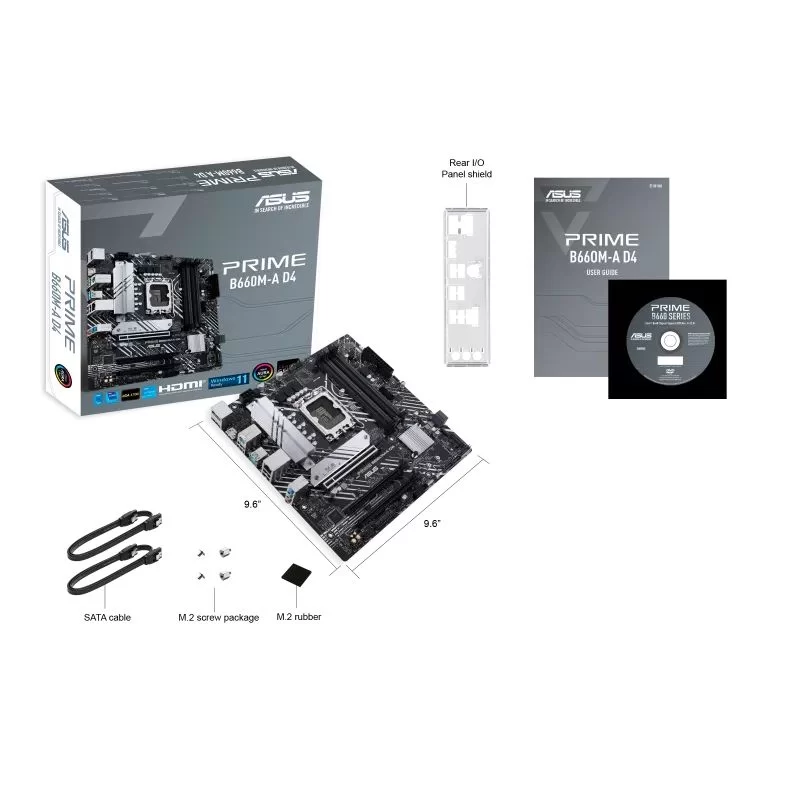

| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual |
| Link To The Manufacturer'S Website | |
| Product Link | Motherboard Asus PRIME B660M-A D4 DDR4 DIMM LGA1700 |
| Matching SKUs | ID:~47380~, NEW, OC: 24507, EASX: 90MB19K0-M1EAY0, VSL: 90MB19K0-M0EAY0, VSL2: 90MB19K0-M1EAY0, MPN: PRIME B660M-A D4, MPN2: 90MB19K0-M0EAY0, MPN3: 90MB19K0-M1EAY0 |
