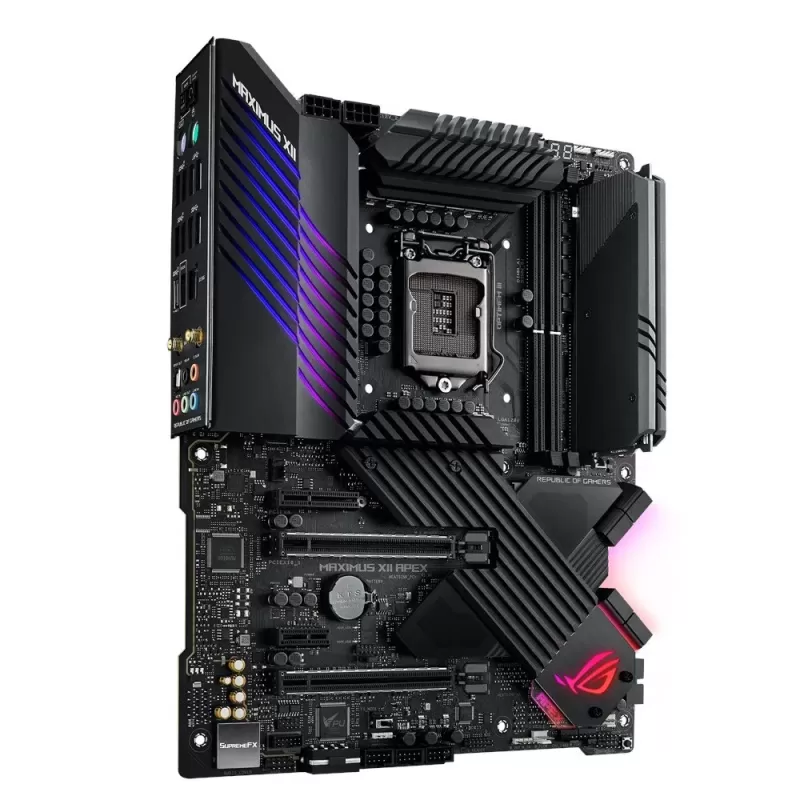

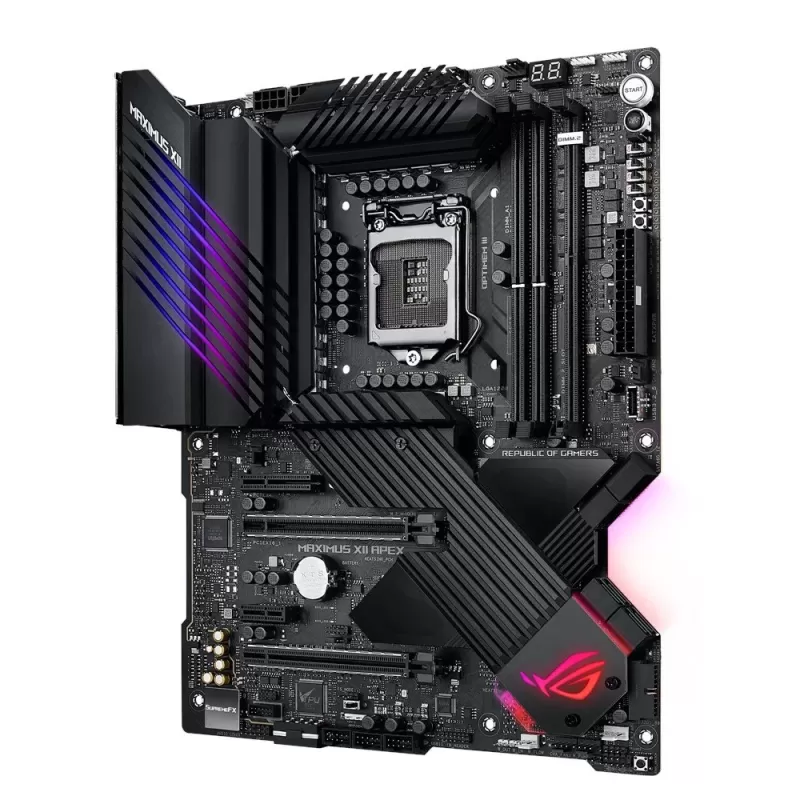

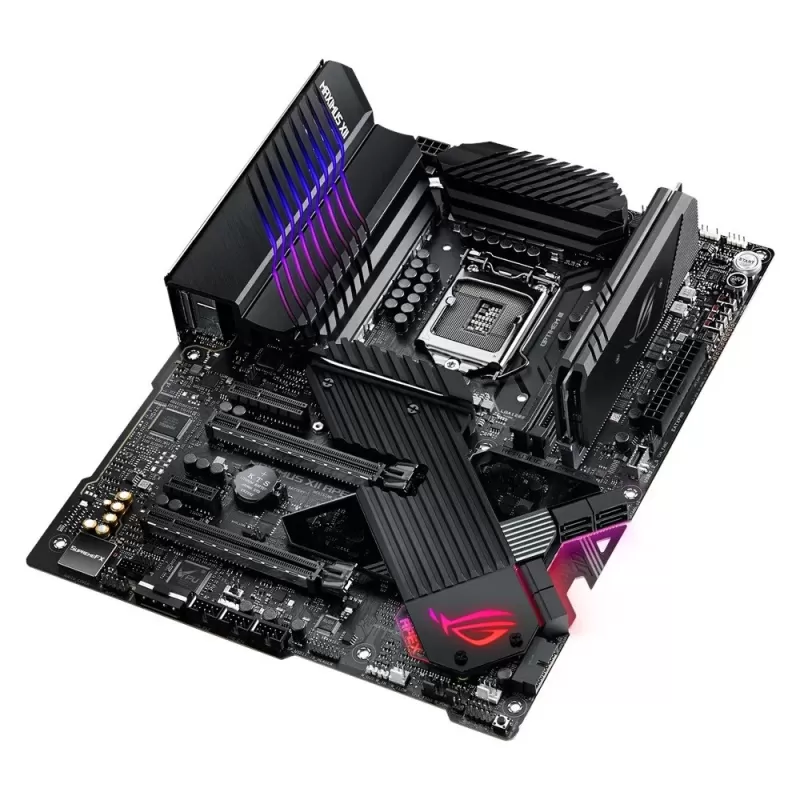

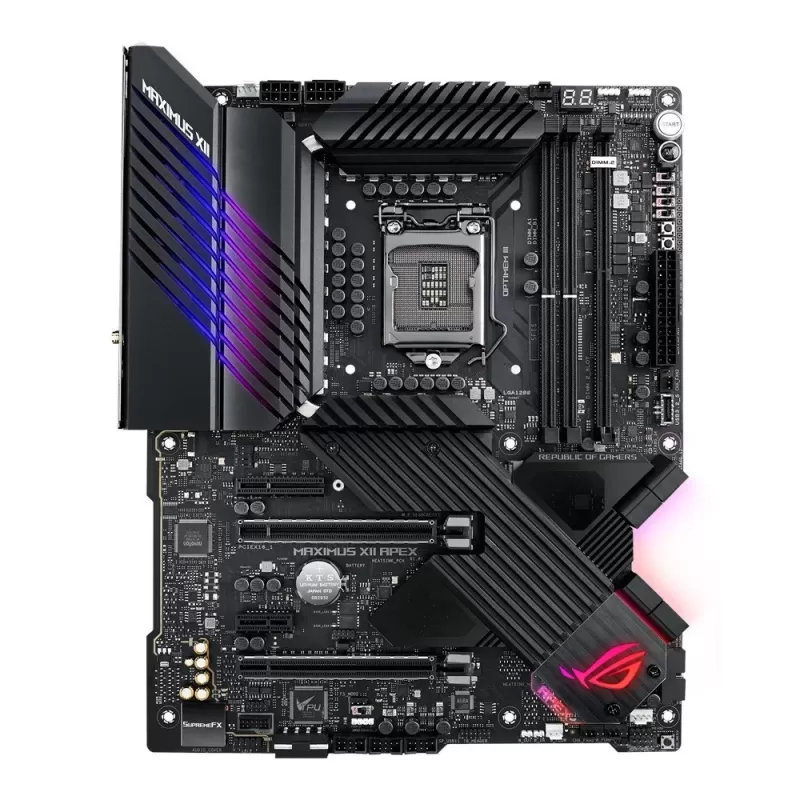

| Revew | Asus ROG MAXIMUS XII APEX MotherboardThe ASUS ROG MAXIMUS XII APEX is an ATX motherboard for the LGA1200 socket, designed for 10th Gen Intel Core processors and built first of all for advanced overclockers. It is based on the Intel Z490 chipset and offers two DDR4 slots, up to 64GB and up to 4800 MHz (OC), with OptiMem III for better memory signal integrity. According to the manufacturer, the VRM has 16 x 70A power stages fed by two 8-pin CPU connectors. The board includes a ROG DIMM.2 module for two M.2 drives plus another M.2 slot, eight SATA ports, Intel 2.5Gb LAN, Wi-Fi 6 with Bluetooth 5.1, SupremeFX audio and overclocking tools such as LN2 Mode, ProbeIt and Dual BIOS.
Key features
Specifications
In the box
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 1 year | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | 90MB13D0-M0EAY0, 90MB13D0-M0EAY0 | ||||||||||||||||||||||||||||||||||||||||
| Model | ROG MAXIMUS XII APEX | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4718017669207 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Asus | ||||||||||||||||||||||||||||||||||||||||
| Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Optical S/PDIF out port(s) at back panel Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity | ||||||||||||||||||||||||||||||||||||||||

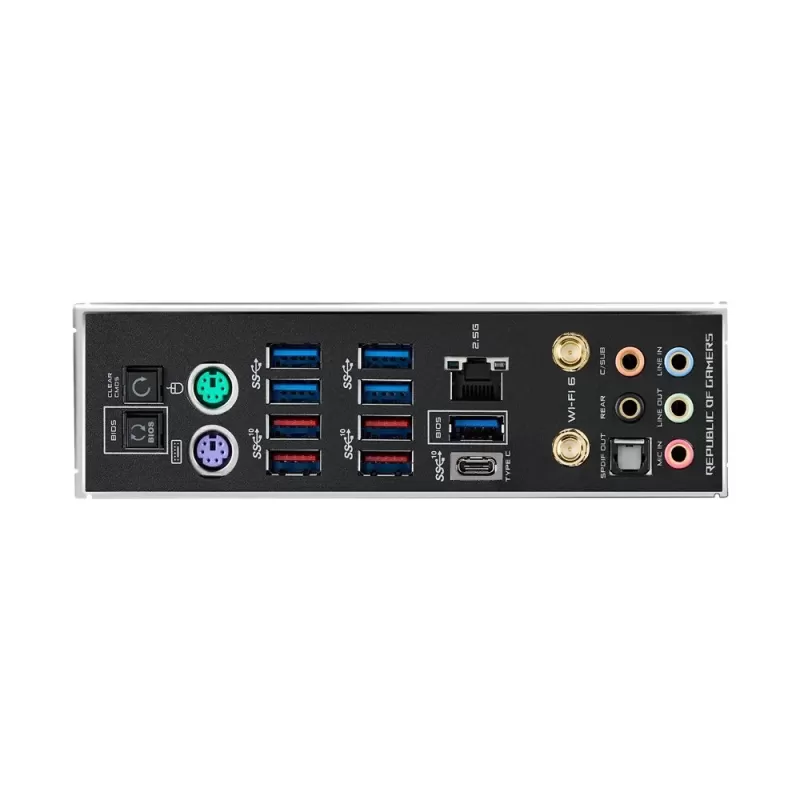

| Back Panel Connectors | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 2 (red) 1 x USB 3.2 Gen 2 (black)Type-C, 5 x USB 3.2 Gen 1 (blue) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0 5 x Gold-plated audio jacks | ||||||||||||||||||||||||||||||||||||||||
| Chipset | Z490 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | Intel Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | ATX | ||||||||||||||||||||||||||||||||||||||||
| Interface | DDR4: 2, SATA3: 6 | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Node Connector(s) 2 x Aura Addressable Strip Header(s) 1 x ReTry jumper 3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s) 1 x S/PDIF out header(s) 2 x 8-pin EATX 12V Power connectors 1 x 4-pin EZ_PLUG Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_Pump+ Header 1 x AIO PUMP Header 1 x USB 3.2 Gen 2 front panel connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 2 x 4-pin Full Speed Fan connectors 3 x onboard LED ON/OFF jumper(s) 1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x Start button 1 x Q-Code 1 x RGB Header 1 x FS Mode switch | ||||||||||||||||||||||||||||||||||||||||
| Memory Frequency | 4800MHz | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR4 | ||||||||||||||||||||||||||||||||||||||||
| Socket | LGA1200 | ||||||||||||||||||||||||||||||||||||||||
| Storage | Intel Z490 Chipset : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*2 6 x SATA 6Gb/s port(s)*3 Support Raid 0, 1, 5 ASMedia SATA 6Gb/s controller : 2 x SATA 6Gb/s port(s), Intel Optane Memory Ready | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | Intel I225-V 2.5Gb Ethernet, 1 x Gigabit LAN Controller(s) Anti-surge LANGuar | ||||||||||||||||||||||||||||||||||||||||
| Wireless network | Intel Wi-Fi 6 AX201 Wi-Fi Intel Wi-Fi 6 Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz | ||||||||||||||||||||||||||||||||||||||||

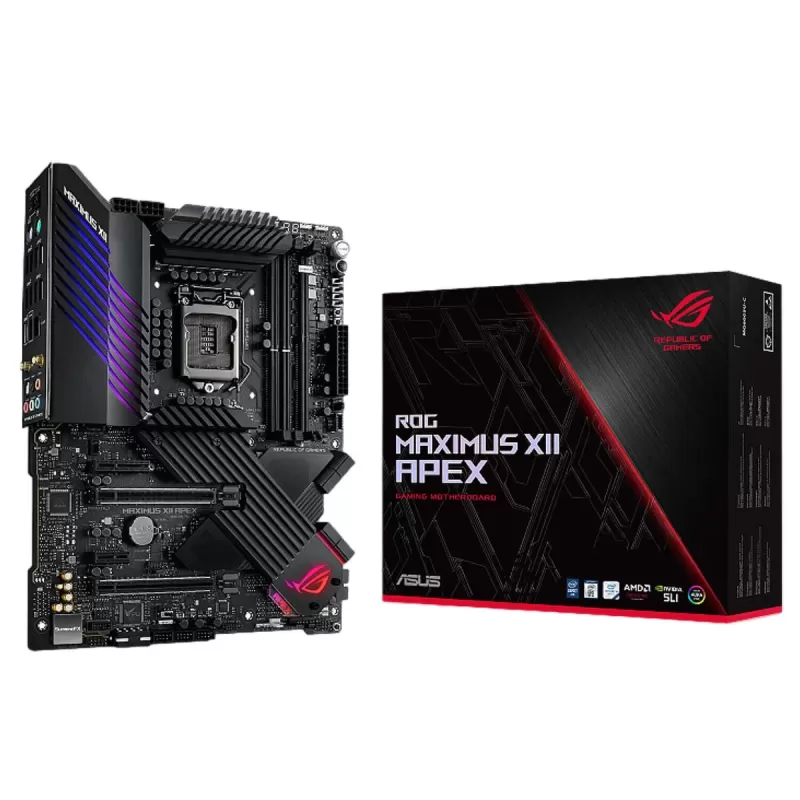

| What'S In The Box? | 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x M.2 screw kit (long screw and mount) 2 x M.2 screw kit (short screw and mount) 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED User manual 1 x ROG coaster(s) 1 x Customizable Name Plate Accessory Pack 1 x ROG Thank you card 1 x ROG DIMM.2 with heatsink 1 x M.2 Pad for ROG DIMM.2 | ||||||||||||||||||||||||||||||||||||||||
