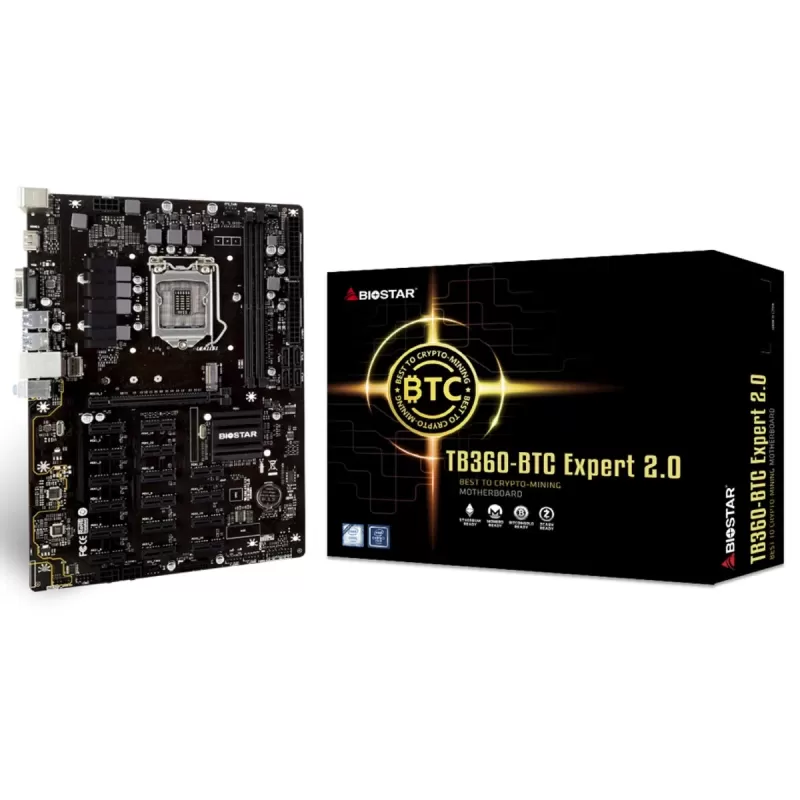

BIOSTAR TB360-BTC Expert 2.0 Motherboard

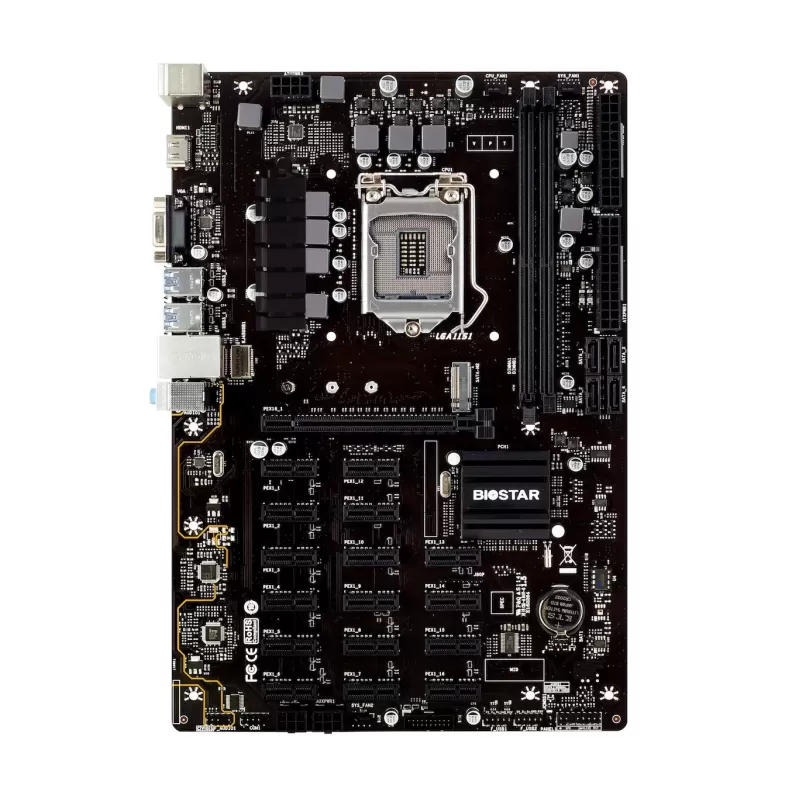

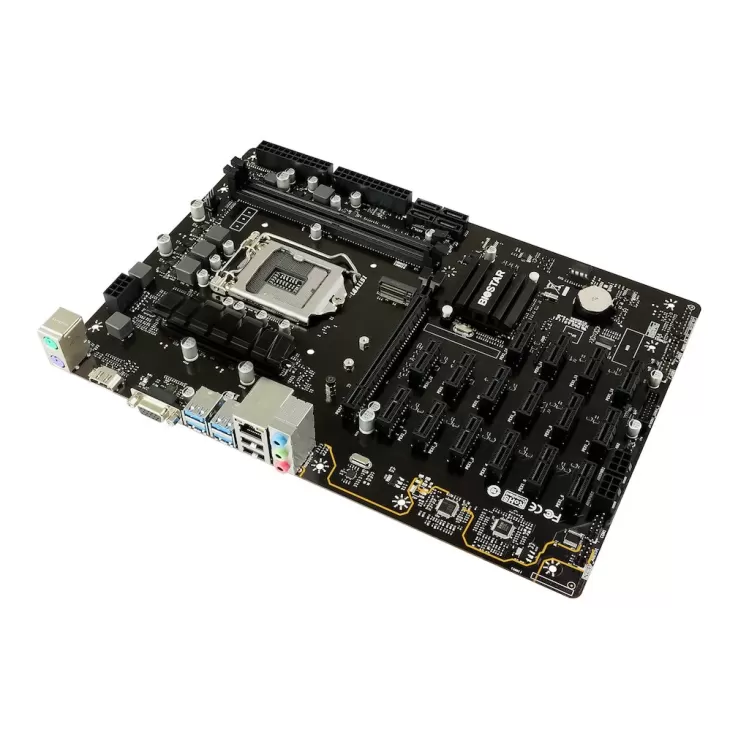

The BIOSTAR TB360-BTC Expert 2.0 is an ATX motherboard designed for building cryptocurrency mining rigs. It offers 17 PCIe 3.0 slots, one x16 and sixteen x1, so a large number of graphics cards can run from a single board.

The board is built for the LGA1151 socket and 8th and 9th generation Intel Core processors and, according to the manufacturer, uses the Intel H370 chipset. It supports DDR4 memory up to 32GB, has four SATA ports, an M.2 slot, Gigabit LAN and HDMI and VGA outputs, and comes with extra power connectors that feed the slots.

Key features

• 17 PCIe 3.0 slots - One PCIe 3.0 x16 slot and sixteen PCIe 3.0 x1 slots for a mining rig with many graphics cards. According to the manufacturer, the maximum number of cards depends on the driver and the mining software.
• Power for the rig - Two 24-pin connectors, two 6-pin PCIe connectors and an 8-pin CPU connector supply power to the slots and the cards.
• Slot detection in BIOS - The BIOS boot screen shows which PCIe slots are detected, making it easy to find a card that the rig does not see.
• Board protection - Super Anti-Surge, LAN surge protection, ESD protection, over-current, over-voltage and over-heat protection and a moisture-proof PCB.
• A complete PC platform - Support for 8th and 9th generation Intel Core processors, two DDR4 slots up to 32GB, four SATA ports, an M.2 slot, Realtek Gigabit LAN, ALC887 audio and HDMI and VGA outputs.

Specifications

In the box

• BIOSTAR TB360-BTC Expert 2.0 motherboard
• 2 SATA cables
• I/O shield
• Driver DVD
• User manual
