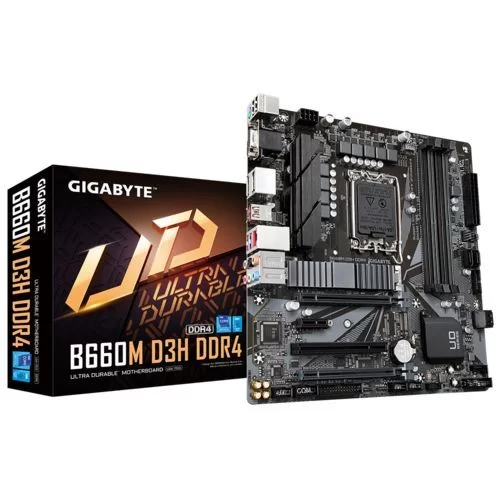

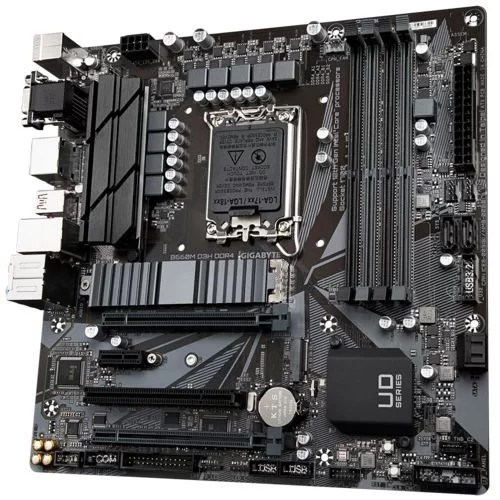

Motherboard Gigabyte B660M D3H DDR4 DDR4 DIMM LGA1700

Motherboard Gigabyte B660M D3H DDR4 DDR4 DIMM LGA1700
Motherboard Gigabyte B660M D3H DDR4 DDR4 DIMM LGA1700
Motherboard Gigabyte B660M D3H DDR4 DDR4 DIMM LGA1700
Out of stock
Motherboard Gigabyte B660M D3H DDR4 DDR4 DIMM LGA1700
Motherboard Gigabyte B660M D3H DDR4 DDR4 DIMM LGA1700
Motherboard Gigabyte B660M D3H DDR4 DDR4 DIMM LGA1700

* The picture is for illustration only

Short review: Gigabyte B660M D3H DDR4 - memory 128GB, memory type DDR4, cpu socket LGA1700, chipset B660. Suited for building a PC or upgrading the platform., Manufacturer: Gigabyte, Socket: LGA1700, Chipset: B660, Memory Volume: 128GB, Memory Type: DDR4 DIMM, Condition: New, SKU: 46396
Motherboard Gigabyte B660M D3H DDR4 DDR4 DIMM LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: Out of stock
    • Print:
    • Brand: Gigabyte
    • SKU: 46396
    • MPN: B660M D3H DDR4
    Gigabyte Gigabyte
    Out of stock
    Add to Wish List Compare this Product
    Send us a question on WhatsApp
    Send a question about this product
    Specification
    Revew

    Gigabyte B660M D3H DDR4

    Gigabyte B660M D3H DDR4 - memory 128GB, memory type DDR4, cpu socket LGA1700, chipset B660. Suited for building a PC or upgrading the platform.

    The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade.

    Key specifications

    • Memory: 128GB
    • Memory type: DDR4
    • CPU socket: LGA1700
    • Chipset: B660

    What it is for

    This product is intended for building a PC or upgrading the platform.

    Product identification

    Manufacturer part number: B660M D3H DDR4. Use it to confirm that accessories and spare parts match.

    Review
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberB660M D3H DDR4
    ModelB660M D3H DDR4
    ConditionNew
    ManufacturerGigabyte
    Audio
  • Realtek Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
    • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x USB Type-C port, with USB 3.2 Gen 2 support
    3. 1 x USB 3.2 Gen 2 Type-A port (red)
    4. 2 x USB 3.2 Gen 1 ports
    5. 2 x USB 2.0/1.1 ports
    6. 1 x D-Sub port
    7. 1 x HDMI port
    8. 2 x DisplayPorts
    9. 1 x RJ-45 port
    10. 6 x audio jacks
    ChipsetB660
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationMicro ATX
    Internal Ports / Inputs
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB 3.2 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x S/PDIF Out header
    14. 2 x Thunderbolt add-in card connectors
    15. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    16. 1 x serial port header
    17. 1 x parallel port header
    18. 1 x reset button
    19. 1 x Q-Flash Plus button
    20. 1 x reset jumper
    21. 1 x Clear CMOS jumper
    Memory
    1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    Memory TypeDDR4 DIMM
    Memory Volume128GB
    SocketLGA1700
    Storage

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    2. 4 x SATA 6Gb/s connectors

    Support for RAID 0, RAID 1, RAID 5, and RAID 10



    Intel Optane Memory Ready

    Wired CommunicationIntel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Gigabyte B660M D3H DDR4 DDR4 DIMM LGA1700
    Matching SKUsID:~46396~, NEW, OC: 24234, CD: GB660MD3HDDR4, MPN: B660M D3H DDR4
    Tags: Gigabyte , B660M D3H DDR4 , LGA1700 , B660 , 128GB , DDR4
