Motherboard Gigabyte B760M AORUS ELITE AX DDR5 Micro ATX LGA1700

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

1. Realtek^®&Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out

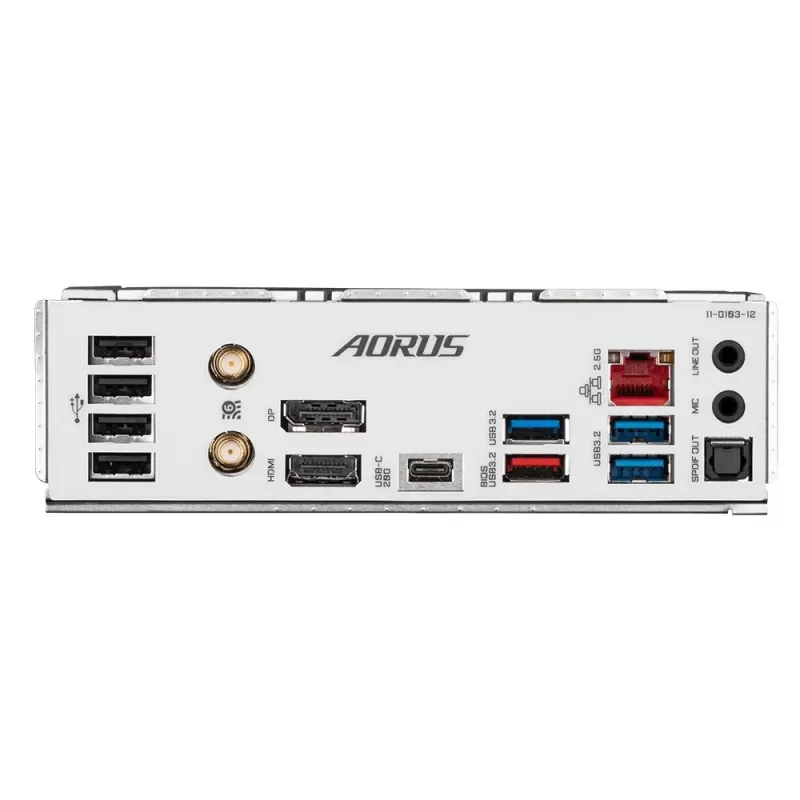

• 2 x SMA antenna connectors (2T2R)
• 1 x USB Type-C^®&port, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x HDMI port
• 1 x DisplayPort
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C^®&header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

1. Support for DDR5 76(O.C.) / 74(O.C.) / 72(O.C.) / 7(O.C.) / 68(O.C.) / 66(O.C.) / 64(O.C.) / 62(O.C.) / 6(O.C.) / 58(O.C.) / 56(O.C.) / 54(O.C.) / 52(O.C.) / 48 / 4 MT/s memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
