Motherboard Gigabyte H410M S2H DDR4 LGA1200 - official importer

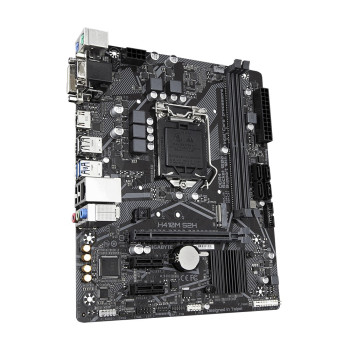

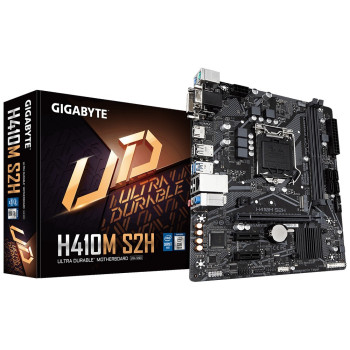

Gigabyte H410M S2H Motherboard

The Gigabyte H410M S2H is a Micro ATX motherboard for the LGA1200 socket, built for 10th Gen Intel Core processors as well as Pentium and Celeron. It is based on the Intel H410 chipset and supports DDR4 memory in two slots, up to 64GB and up to 2933MHz with Core i9 and i7 processors.

The board belongs to the Ultra Durable series and offers an M.2 slot for PCIe x2 or SATA drives, four SATA ports, two PCIe x1 slots, Realtek 8118 Gaming LAN and three video outputs (HDMI, DVI-D and D-Sub). It is an affordable choice for a 10th Gen office or home PC.

Key features

• 10th Gen Intel - The LGA1200 socket supports 10th Gen Core i9, i7, i5 and i3 processors as well as Pentium and Celeron, with an 8-pin CPU power connector.
• Dual-channel DDR4 - Two DDR4 slots for up to 64GB (32GB per module). With Core i9 and i7 the board supports up to 2933MHz, and up to 2666MHz with other processors, including XMP profiles.
• M.2 and SATA storage - An M.2 slot for PCIe x2 or SATA drives in 2242, 2260 or 2280 length, and four SATA 6Gb/s ports for additional drives.
• Realtek 8118 Gaming LAN - Gigabit LAN with automatic bandwidth allocation that gives priority to the program or game in the foreground and shows network traffic in real time.
• Three video outputs - HDMI up to 4096x2160 at 30Hz, plus DVI-D and D-Sub up to 1920x1200 at 60Hz, with support for two displays at the same time.
• Durability and cooling - Anti-sulfur resistors, high-quality audio capacitors and Audio Noise Guard, Smart Fan 5 fan control with FAN STOP and easy BIOS updates with Q-Flash.

Specifications

1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel

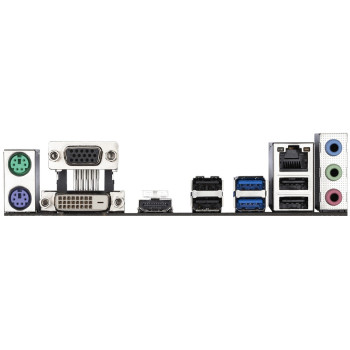

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x DVI-D port
5. 1 x HDMI port
6. 2 x USB 3.2 Gen 1 ports
7. 4 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 3 x audio jacks
