Motherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200

Motherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200
Motherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200
Motherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200
Motherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200
Motherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200
Out of stock
Motherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200
Motherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200
Motherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200
Motherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200
Motherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200

* The picture is for illustration only

A short description

Manufacturer: Gigabyte, Socket: LGA1200, Chipset: H510, Memory Type: DDR4
Motherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 12 interest-free Credit Card (13-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted)Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Stock: Out of stock
    • Print:
    • SKU: 44594
    • MPN: H510M S2H V2
    ₪365
    Review
    Warranty3 years
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberH510M S2H V2
    ModelH510M S2H V2
    ConditionNew
    ManufacturerGigabyte
    Audio
  • Realtek Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

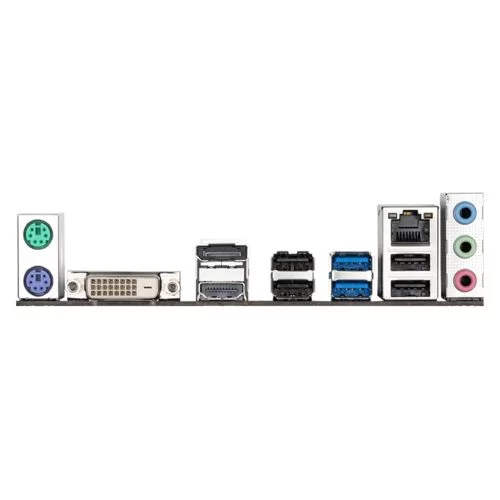

  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x DVI-D port
    4. 1 x DisplayPorts
    5. 1 x HDMI port
    6. 2 x USB 3.2 Gen 1 ports
    7. 4 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks
    ChipsetH510
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationMicro ATX
    Internal Ports / Inputs
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 2 x system fan headers
    6. 1 x RGB LED strip header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x USB 3.2 Gen 1 header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    12. 1 x serial port header
    13. 1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
    Memory
    1. 11th Generation Intel Core i9/i7/i5 processors:
      Support for DDR4 32/3/2933/2666/24/2133 MHz memory modules
    2. 1th Generation Intel Core i9/i7 processors:
      Support for DDR4 2933/2666/24/2133 MHz memory modules
    3. 1th Generation Intel Core i5/i3/Pentium/Celeron processors:
      Support for DDR4 2666/24/2133 MHz memory modules
    4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer "Memory Support List" for more information.)

    SocketLGA1200
    Storage
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
      * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.
    2. 4 x SATA 6Gb/s connectors
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Wired Communication1. Realtek GbE LAN chip (1 Gbit/100 Mbit)
    סוג הזיכרוןDDR4
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Gigabyte H510M S2H V2 DDR4 Micro ATX LGA1200
