Motherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700

Motherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700
Motherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700
Motherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700
Motherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700
Motherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700
Out of stock
Motherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700
Motherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700
Motherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700
Motherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700
Motherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700

* The picture is for illustration only

Short review: Gigabyte Z690M AORUS ELITE AX DDR4 - memory type DDR4, cpu socket LGA1700, chipset Z690. Suited for building a PC or upgrading the platform., Manufacturer: Gigabyte, Socket: LGA1700, Chipset: Z690, Memory Type: DDR4, Condition: New, SKU: 44570
Motherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: Out of stock
    • Print:
    • Brand: Gigabyte
    • SKU: 44570
    • MPN: Z690M AORUS ELITE AX DDR4
    Gigabyte Gigabyte
    Out of stock
    Add to Wish List Compare this Product
    Send us a question on WhatsApp
    Send a question about this product
    Specification
    Revew

    Gigabyte Z690M AORUS ELITE AX DDR4

    Gigabyte Z690M AORUS ELITE AX DDR4 - memory type DDR4, cpu socket LGA1700, chipset Z690. Suited for building a PC or upgrading the platform.

    The motherboard decides which processors fit, how much memory is supported and which cards and drives can be installed. It is the base for any future upgrade.

    Key specifications

    • Memory type: DDR4
    • CPU socket: LGA1700
    • Chipset: Z690

    What it is for

    This product is intended for building a PC or upgrading the platform.

    Product identification

    Manufacturer part number: Z690M AORUS ELITE AX DDR4. Use it to confirm that accessories and spare parts match.

    Review
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberZ690M AORUS ELITE AX DDR4
    ModelZ690M AORUS ELITE AX DDR4
    ConditionNew
    ManufacturerGigabyte
    Audio
    1. Realtek Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    4. Support for S/PDIF Out

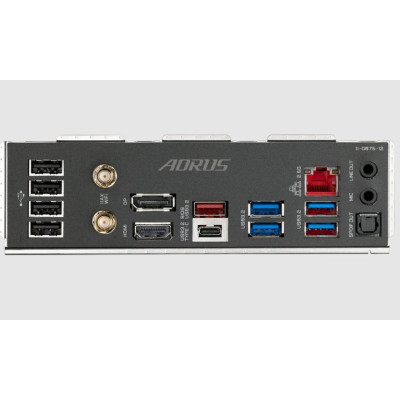

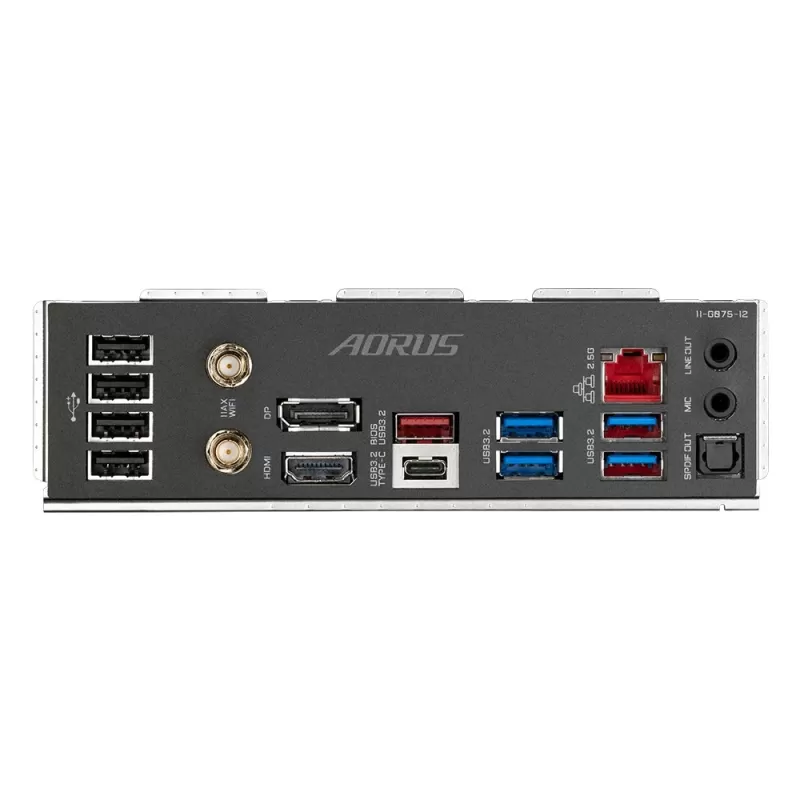

    Back Panel Connectors
  • 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 2 x SMA antenna connectors (2T2R)
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 2 x audio jacks
    • ChipsetZ690
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationMicro ATX
    Internal Ports / Inputs
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 1 x system fan/water cooling pump header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 3 x M.2 Socket 3 connectors
  • 6 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C header, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 2 x Thunderbolt add-in card connectors
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x reset button
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
    • Memory TypeDDR4
    SocketLGA1700
    Storage
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    3. 6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    Intel Optane Memory Ready
    * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
    Wired CommunicationIntel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless network

    Intel Wi-Fi 6 AX201

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Gigabyte Z690M AORUS ELITE AX DDR4 LGA1700
    Matching SKUsID:~44570~, NEW, OC: 23716, ML: 95Z690410, CD: GZ690MAORUSELITEAXDDR4, MPN: Z690M AORUS ELITE AX DDR4
    Tags: Gigabyte , Z690M AORUS ELITE AX DDR4 , LGA1700 , Z690 , DDR4
