Motherboard Gigabyte Z690M DS3H DDR4 LGA1700 - official importer

Motherboard Gigabyte Z690M DS3H DDR4 LGA1700 - official importer
Motherboard Gigabyte Z690M DS3H DDR4 LGA1700 - official importer
Motherboard Gigabyte Z690M DS3H DDR4 LGA1700 - official importer
Motherboard Gigabyte Z690M DS3H DDR4 LGA1700 - official importer
Motherboard Gigabyte Z690M DS3H DDR4 LGA1700 - official importer
In the importer's stock
Motherboard Gigabyte Z690M DS3H DDR4 LGA1700 - official importer
Motherboard Gigabyte Z690M DS3H DDR4 LGA1700 - official importer
Motherboard Gigabyte Z690M DS3H DDR4 LGA1700 - official importer
Motherboard Gigabyte Z690M DS3H DDR4 LGA1700 - official importer
Motherboard Gigabyte Z690M DS3H DDR4 LGA1700 - official importer

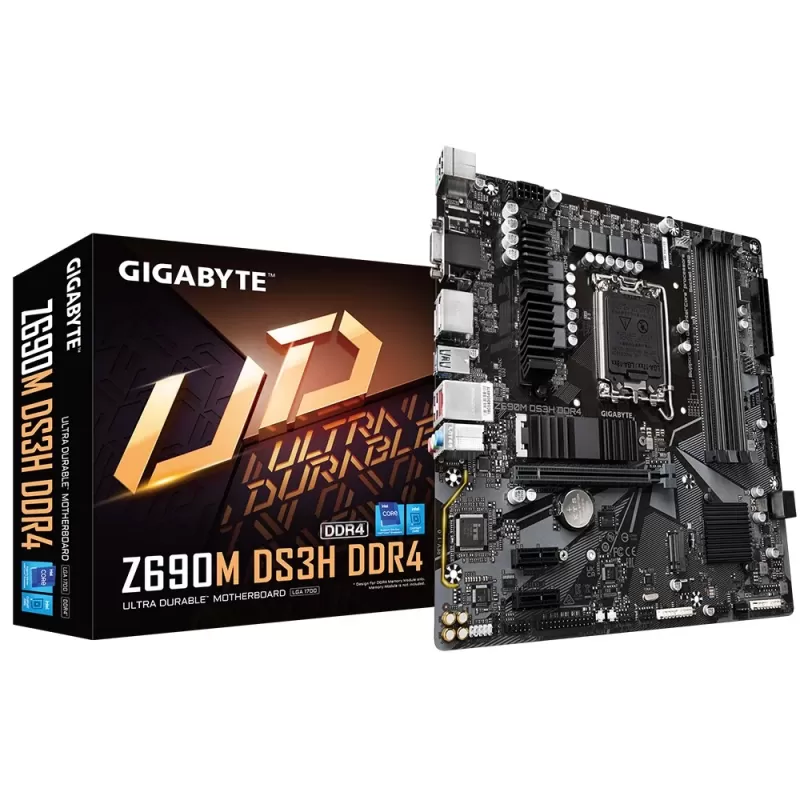

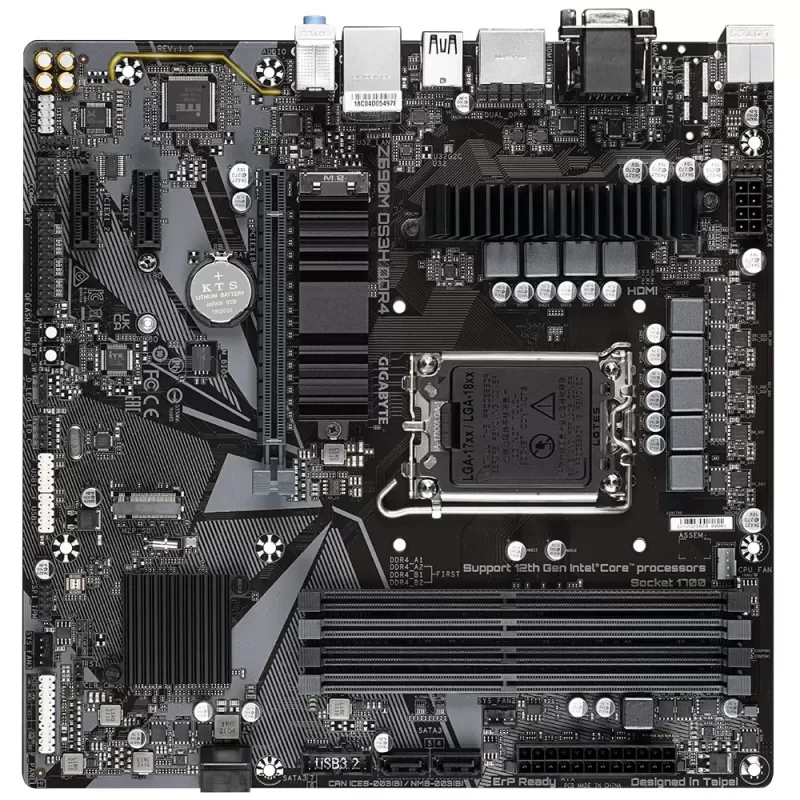

* The picture is for illustration only

Short review: Gigabyte Z690M DS3H DDR4 Micro ATX motherboard for socket LGA1700 with the Intel Z690 chipset, four DDR4 slots, two PCIe 4.0 M.2 slots, 2.5GbE LAN and rear USB-C., Manufacturer: Gigabyte, Socket: LGA1700, Chipset: Z690, Memory Volume: 128GB, Memory Type: DDR4, Condition: New, SKU: 46423
Motherboard Gigabyte Z690M DS3H DDR4 LGA1700 - official importer

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: In stock at supplier: delivery to branch within: 4 business days
    • Print:
    • Brand: Gigabyte
    • SKU: 46423
    • MPN: Z690M DS3H DDR4
    Gigabyte Gigabyte
    ₪510
    11 pcs or more — unit price ₪464
    Add to Cart
    Buy Now!
    Add to Wish List Compare this Product
    Send us a question on WhatsApp
    Send a question about this product
    Specification
    Revew

    Gigabyte Z690M DS3H DDR4 Motherboard

    The Gigabyte Z690M DS3H DDR4 is a Micro ATX motherboard for socket LGA1700 based on the Intel Z690 chipset. It supports 12th, 13th and 14th Gen Intel Core processors as well as Pentium Gold and Celeron, and works with DDR4 memory.

    The board offers four DDR4 slots for up to 128GB of memory, a PCIe 4.0 x16 slot, two PCIe 4.0 x4 M.2 slots with Thermal Guard, four SATA ports and Realtek 2.5GbE. The rear panel has a USB-C 3.2 Gen 2 port plus D-Sub, HDMI and two DisplayPort outputs for up to four displays.

    Gigabyte Z690M DS3H DDR4 Motherboard

    Key features

    • 6+2+1 hybrid VRM - A 6+2+1 phase hybrid digital VRM design for stable power delivery to Intel Core processors.
    • DDR4 up to 128GB - Four dual-channel DDR4 slots for up to 128GB (up to 32GB per module), with XMP profiles and speeds of up to 5333 MT/s (OC).
    • Two PCIe 4.0 M.2 slots - Two M.2 slots for PCIe 4.0 x4 NVMe drives with Thermal Guard, four SATA 6Gb/s ports and RAID 0, 1, 5 and 10.
    • 2.5GbE and rear USB-C - A Realtek 2.5GbE controller and a rear USB Type-C 3.2 Gen 2 port, alongside three USB 3.2 Gen 1 and two USB 2.0 ports.
    • Up to four displays - D-Sub, HDMI and two DisplayPort outputs for the processor's integrated graphics.
    • Smart Fan 6 and Q-Flash Plus - Four fan headers that also support pumps and fans of up to 2A and 24W, ARGB and RGB headers, and a Q-Flash Plus button for BIOS updates without a CPU, memory or graphics card.

    Specifications

    ManufacturerGigabyte
    ModelZ690M DS3H DDR4
    SocketIntel LGA1700
    Supported processors12th/13th/14th Gen Intel Core, Pentium Gold, Celeron
    ChipsetIntel Z690
    Memory4 x DDR4 DIMM, up to 128GB, dual channel, up to 5333 MT/s (OC), XMP
    Video outputsD-Sub, HDMI, 2 x DisplayPort, up to 4 displays
    Expansion slots1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
    Storage2 x M.2 PCIe 4.0 x4 (2260/2280), 4 x SATA 6Gb/s, RAID 0/1/5/10
    NetworkRealtek 2.5GbE
    Rear USBUSB-C 3.2 Gen 2, 3 x USB 3.2 Gen 1, 2 x USB 2.0
    Internal USB1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
    Other rear portsPS/2, RJ-45, 3 audio jacks
    AudioRealtek HD Audio, 7.1 channels
    CPU power6+2+1 phase hybrid digital VRM
    Power connectors24-pin ATX, 8-pin ATX 12V
    Fan headersCPU, 3 x system
    BIOS256Mbit flash, AMI UEFI BIOS
    Form factor and sizeMicro ATX, 24.4 x 24.4 cm

    In the box

    • Gigabyte Z690M DS3H DDR4 motherboard
    • User manual
    • I/O shield
    • Two SATA cables
    • M.2 screws
    Review
    Warranty3 years
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberZ690M DS3H DDR4
    ModelZ690M DS3H DDR4
    ConditionNew
    EAN4719331830625
    ManufacturerGigabyte
    Audio
    1. Realtek Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel

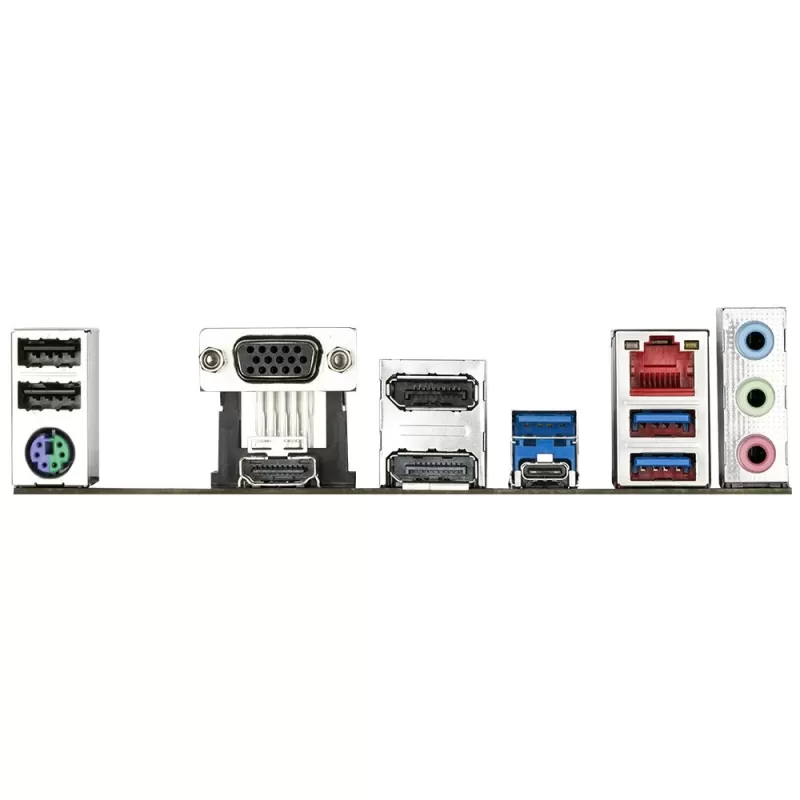

    Back Panel Connectors
    1. 2 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 1 x D-Sub port
    4. 1 x HDMI 2.0 port
    5. 2 x DisplayPorts
    6. 3 x USB 3.2 Gen 1 ports
    7. 1 x USB Type-C port, with USB 3.2 Gen 2 support
    8. 1 x RJ-45 port
    9. 3 x audio jacks
    ChipsetZ690
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationMicro ATX
    importerofficial
    Internal Ports / Inputs
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB 3.2 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    14. 1 x serial port header
    15. 1 x parallel port header
    16. 1 x S/PDIF Out header
    17. 1 x Q-Flash Plus button
    18. 1 x reset button
    19. 1 x reset jumper
    20. 1 x Clear CMOS jumper
    Memory
    1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    Memory TypeDDR4
    Memory Volume128GB
    SocketLGA1700
    Storage
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    2. 4 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10

    Intel Optane Memory Ready
    Wired Communication1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Gigabyte Z690M DS3H DDR4 LGA1700
    Matching SKUsID:~46423~, NEW, OC: 24243, ML: 95Z690420, CD: GZ690MDS3HDDR4, MPN: Z690M DS3H DDR4, EAN: 4719331830625
