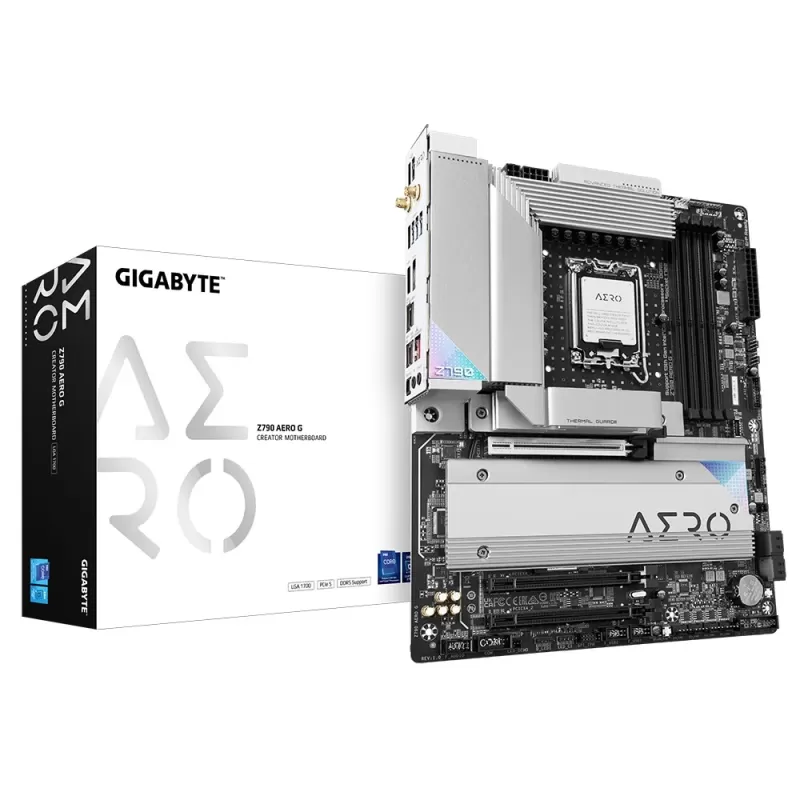

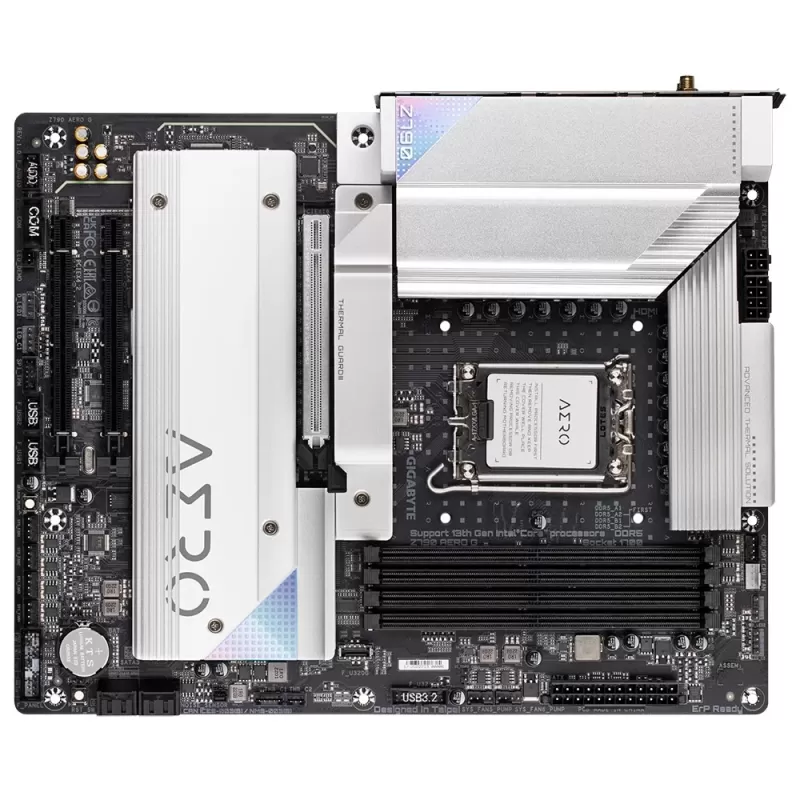

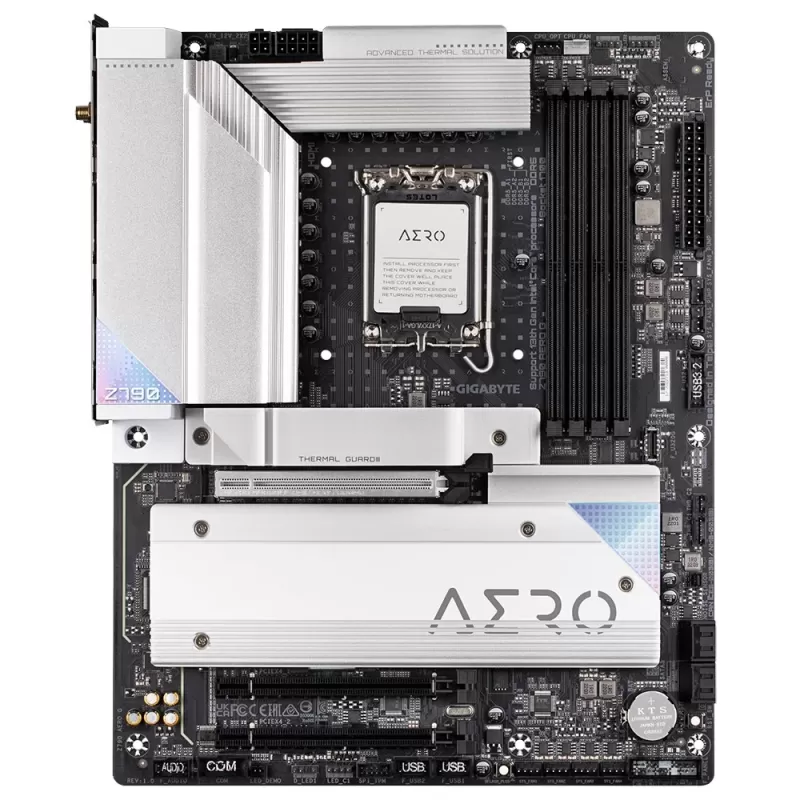

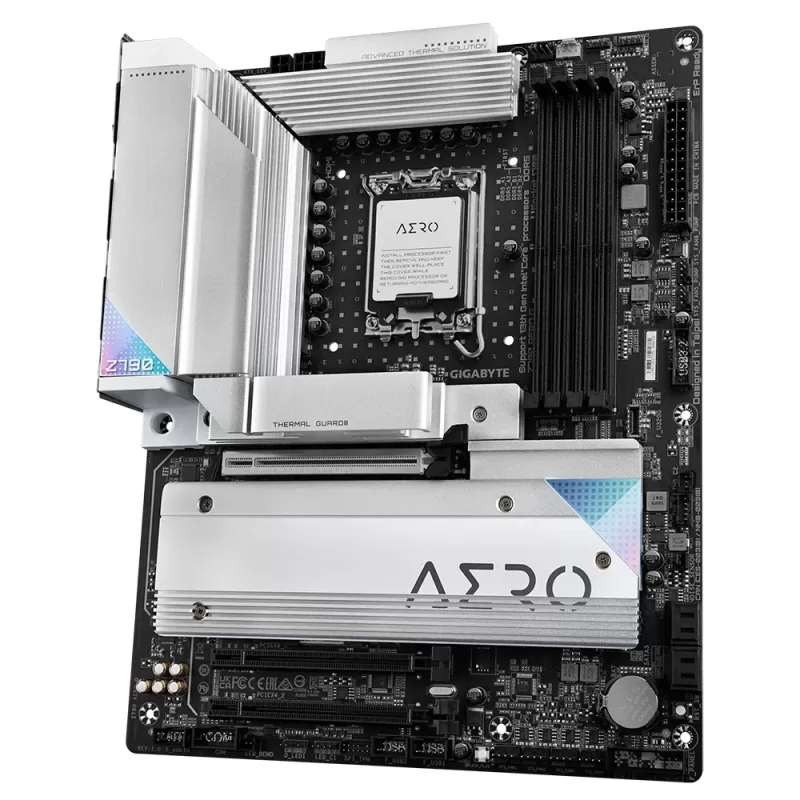

Motherboard Gigabyte Z790 AERO G DDR5 ATX LGA1700

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

1. Realtek^®&ALC1220-VB CODEC
   * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out

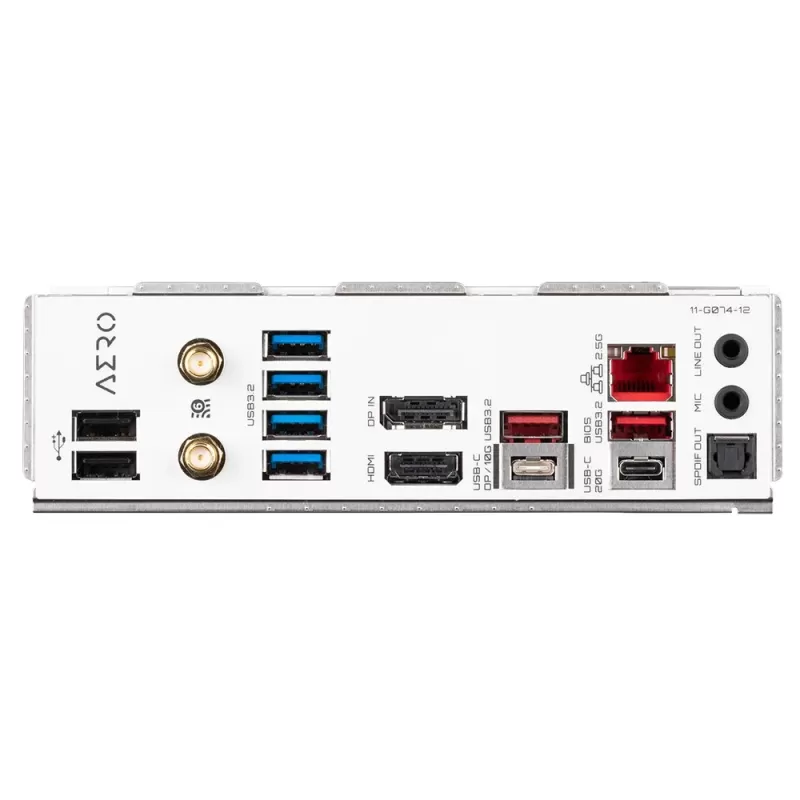

1. 2 x USB 2.0/1.1 ports
2. 2 x SMA antenna connectors (2T2R)
3. 4 x USB 3.2 Gen 1 ports
4. 1 x DisplayPort In port
5. 1 x HDMI 2.0 port
6. 2 x USB 3.2 Gen 2 Type-A ports (red)
7. 1 x USB Type-C^®&port, with USB 3.2 Gen 2x2 support
8. 1 x USB Type-C^®&port (DisplayPort), with USB 3.2 Gen 2 support
9. 1 x RJ-45 port
10. 1 x optical S/PDIF Out connector
11. 2 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 5 x M.2 Socket 3 connectors
11. 4 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^®&header, with USB 3.2 Gen 2x2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 2 x Thunderbolt™ add-in card connectors
19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
20. 1 x serial port header
21. 1 x Q-Flash Plus button
22. 1 x reset button
23. 1 x reset jumper
24. 2 x temperature sensor headers
25. 1 x Clear CMOS jumper

1. Support for DDR5 76(O.C.) /74(O.C.) /72(O.C.) /7(O.C.) /68(O.C.) /66(O.C.) / 64(O.C.) / 62(O.C.) / 6(O.C.) / 58(O.C.) / 56(O.C.) / 54(O.C.) / 52(O.C.) / 48 / 4 memory modules
2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
3. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
4. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Intel^®&Wi-Fi 6E AX211

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
