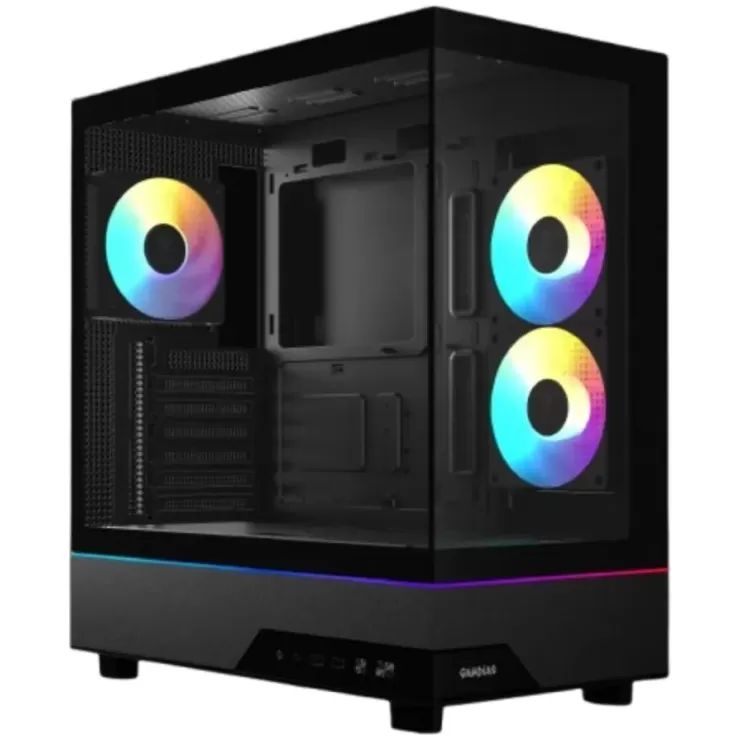

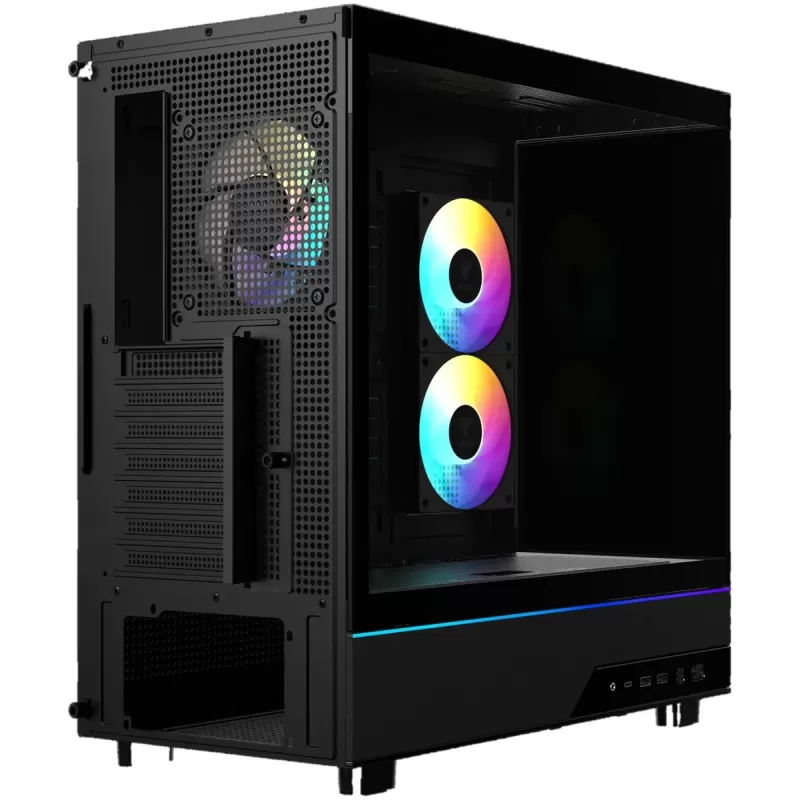

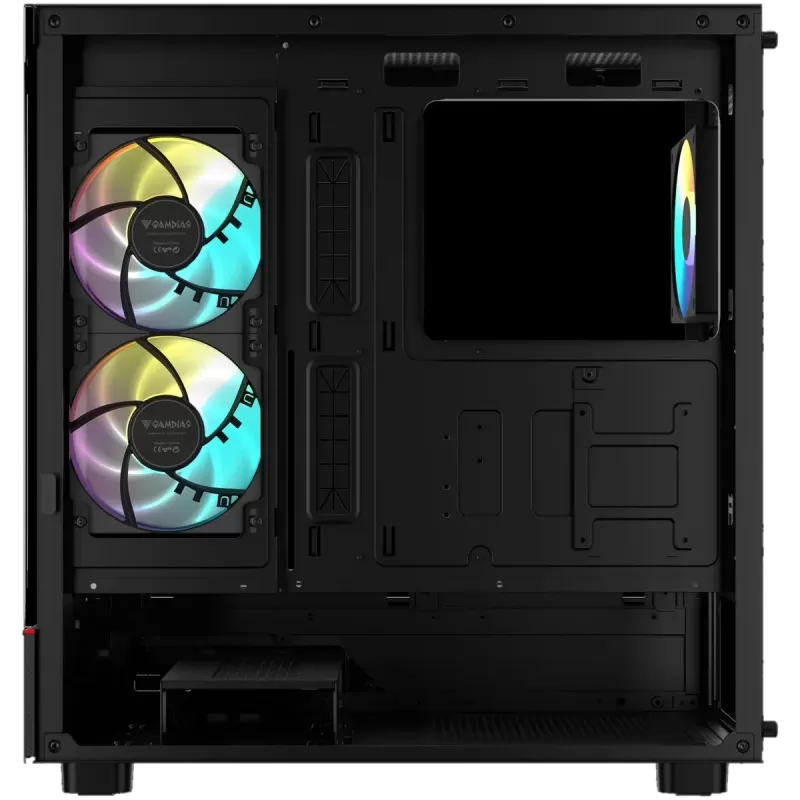

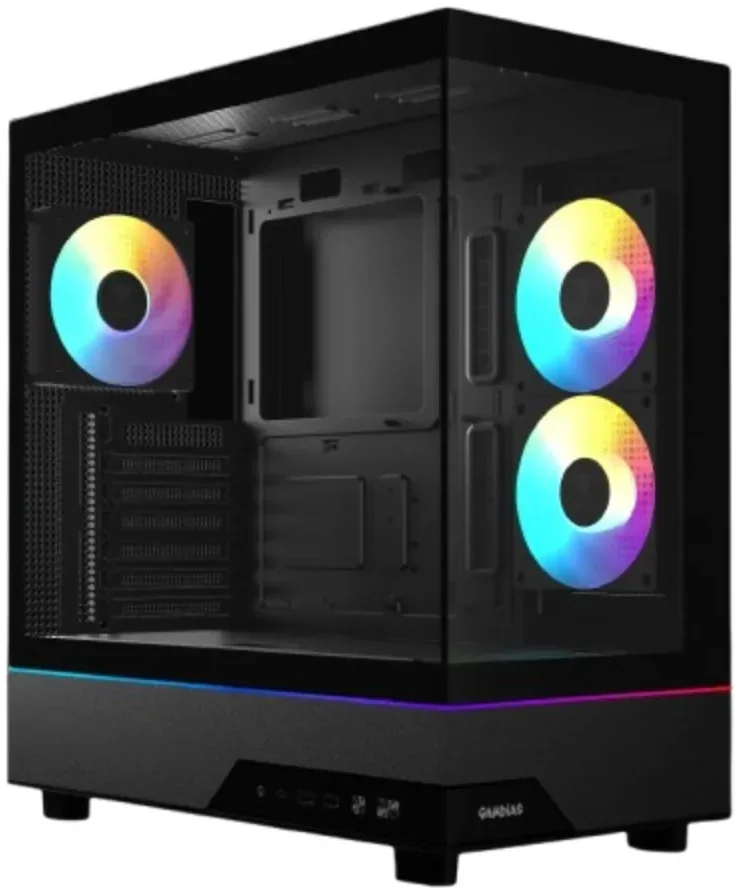

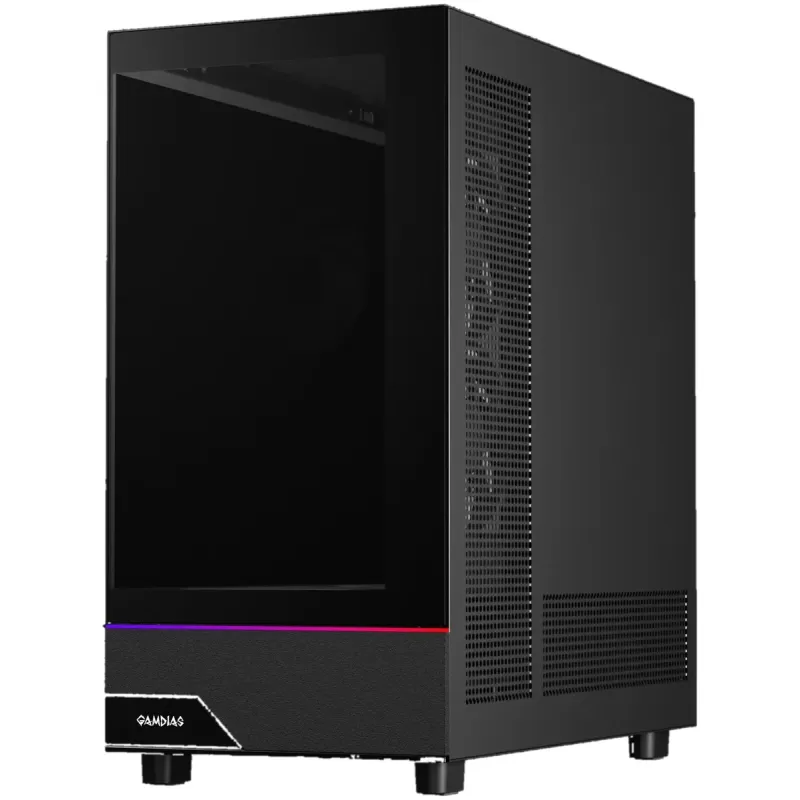

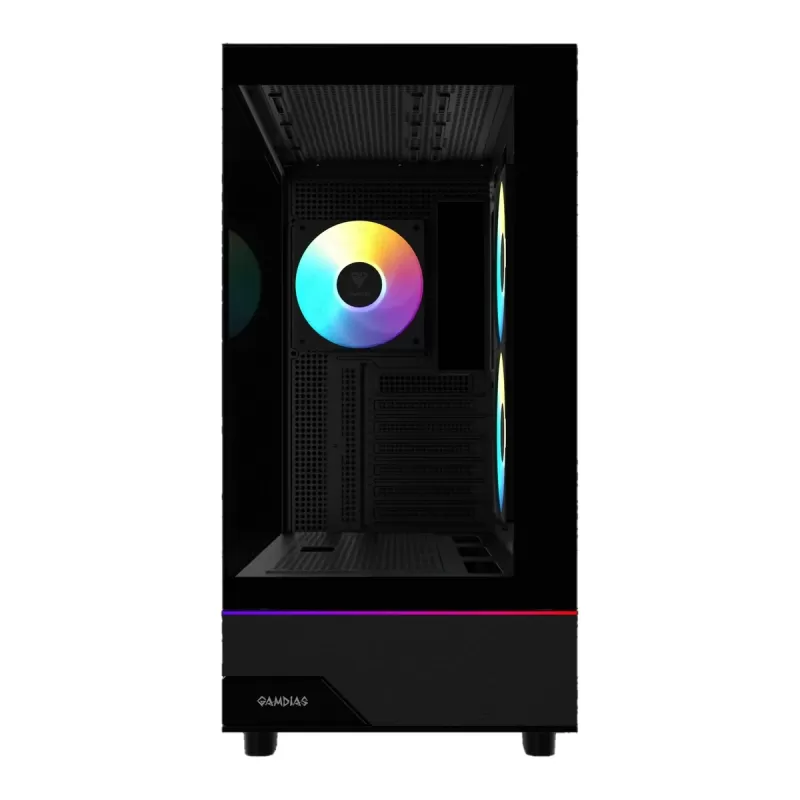

| Revew | Gamdias ATLAS M5 Black CaseThe Gamdias ATLAS M5 is a black Mid Tower case with tempered glass panels on the front and left side for a panoramic view of the whole system. Three NOTUS M1 ARGB PWM fans come installed, two on the side and one at the rear, and an integrated RGB light strip at the base offers a range of lighting modes. The case supports ATX, Micro-ATX and Mini-ITX motherboards, graphics cards up to 425mm long, air coolers up to 175mm tall, power supplies up to 220mm and a radiator up to 360mm on top. There is room for up to nine fans.
Key features- Panoramic view - Front and left tempered glass panels with no corner pillar, and a clasp system for easy glass removal.
- Three ARGB fans - Three NOTUS M1 ARGB PWM fans are pre-installed (two on the side and one at the rear) for precisely controlled, quiet airflow.
- Up to nine fans - Room for three fans on top, two on the side, one at the rear and three at the bottom, and a 280 or 360mm radiator on top.
- Room for powerful hardware - Graphics cards up to 425mm long, air coolers up to 175mm tall, power supplies up to 220mm and seven expansion slots.
- Lighting and I/O - An integrated RGB light strip, a Type-C port, two USB 3.0 ports, an audio jack and a lighting control button, with ARGB sync to the motherboard.
- Dust filters - Dust filters on the top, bottom and back, plus bottom and right side vents for efficient heat dissipation.
Specifications| Manufacturer | Gamdias | | Model | ATLAS M5 | | Type | Mid Tower | | Color | Black | | Materials | SPCC, ABS, tempered glass | | Windows | Front, left | | Dimensions | 434 x 230 x 468 mm | | Motherboard support | ATX, Micro-ATX, Mini-ITX | | Expansion slots | 7 | | Drive bays | 2 x 3.5" or 2 x 2.5" + 1 x 3.5" (cage), 1 x 2.5" | | I/O ports | Type-C x 1, USB 3.0 x 2, HD Audio x 1, LED control | | Pre-installed fans | Side: 2 x 120 mm PWM ARGB, rear: 1 x 120 mm PWM ARGB | | Fan support | Top 3x120 or 2x140, side 2x120, rear 1x120 or 1x140, bottom 3x120 mm | | Radiator support | Top 280/360 mm, rear 120/140 mm | | Max CPU cooler height | 175 mm | | Max GPU length | 425 mm | | Max PSU length | 220 mm | | Lighting sync | 5V 3-Pin ARGB |
|
