Power Supply Corsair WS3000 3000W ATX 3.1 80+ Platinum Fully Modular CP-9020312-EU 80 Plus Platinum

Power Supply Corsair WS3000 3000W ATX 3.1 80+ Platinum Fully Modular

The Corsair WS3000 delivers 3000W of continuous power for multi-GPU workstations used for AI training, 3D rendering and CAD. Four native 12V-2x6 connectors provide up to 600W each, enough to run up to four high-draw graphics cards in one machine.

It complies with ATX 3.1 and PCIe 5.1, carries both 80 PLUS Platinum and Cybenetics Platinum certification and is fully modular with Type 4 cables. Despite its output the chassis is only 175 mm long. The unit works on 220-240V mains only, draws up to 16A and needs a power cord with a C19 connector.

Key features

• 3000W continuous - 3000W of continuous output at 40°C, with a 250A +12V rail.

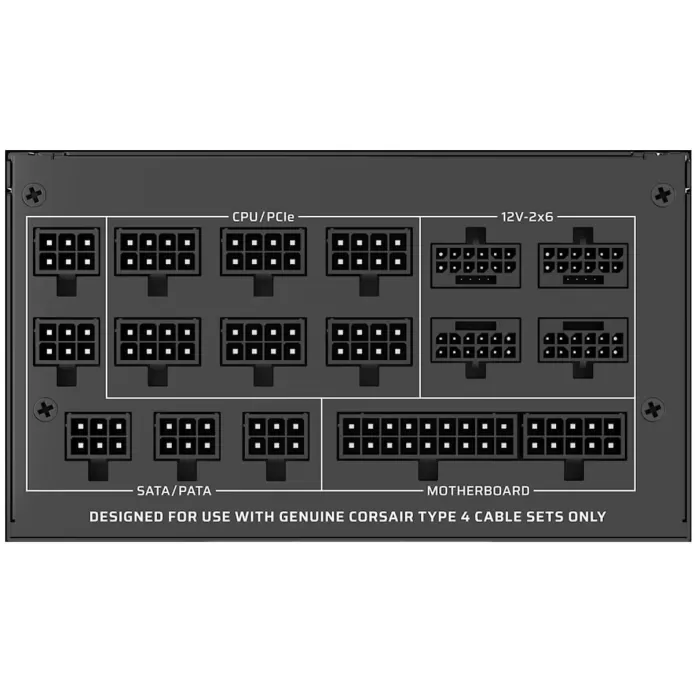

• Four 12V-2x6 connectors - Four native 600W 12V-2x6 cables plus eight PCIe 8-pin connectors to feed several current graphics cards.
• 80 PLUS Platinum - Platinum certification from both 80 PLUS and Cybenetics for high efficiency, less heat and less noise.

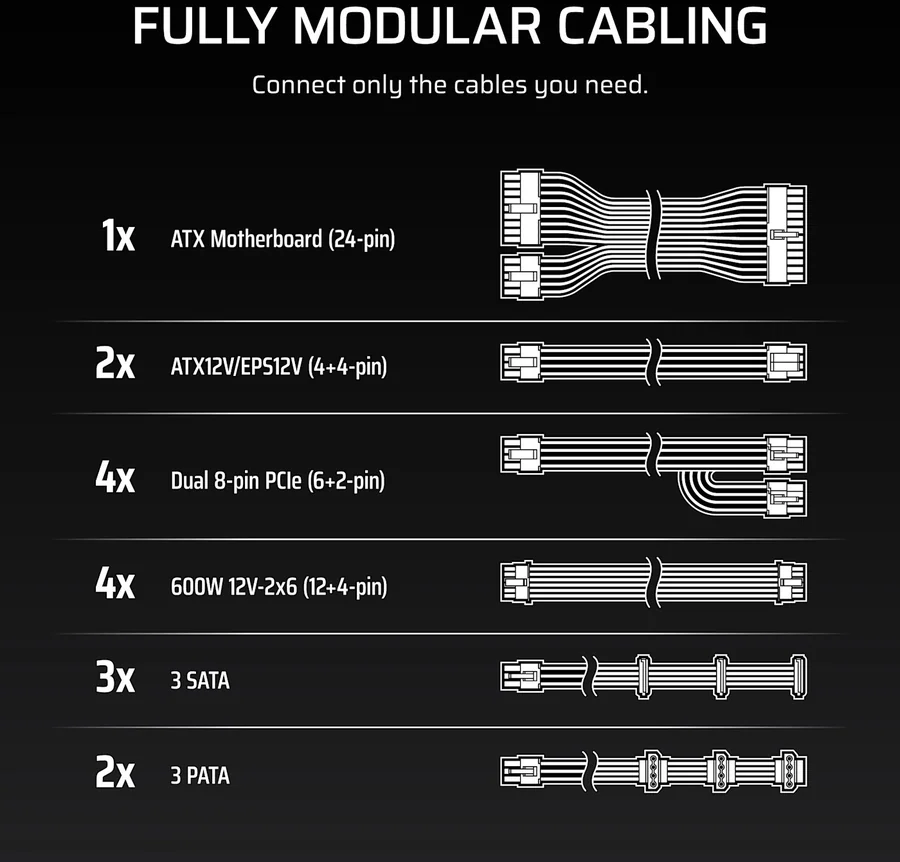

• Fully modular - Debossed Type 4 cables, connect only what you need, including two EPS12V connectors for high-core-count workstation CPUs.
• Compact for its class - An ATX chassis only 175 mm long, with a 140 mm dual ball bearing fan.
• 220-240V mains - Designed for 220-240V only, draws up to 16A and requires a C19 power cord. A standard C13 cord is not compatible.

Specifications

In the box

• WS3000 power supply
• Power cord
• Modular DC cables
• Mounting screws
• Cable ties
