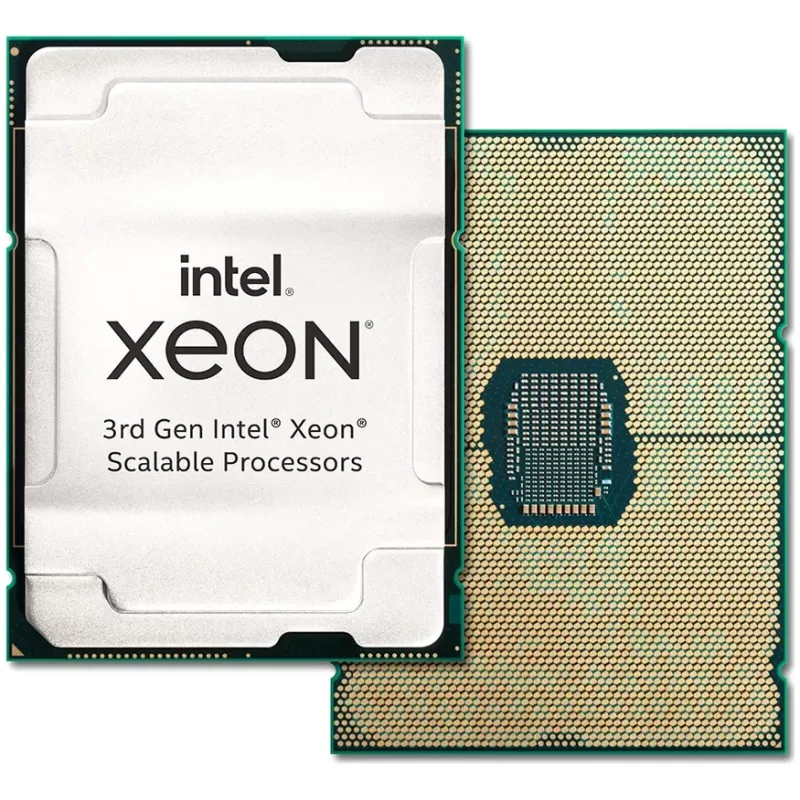

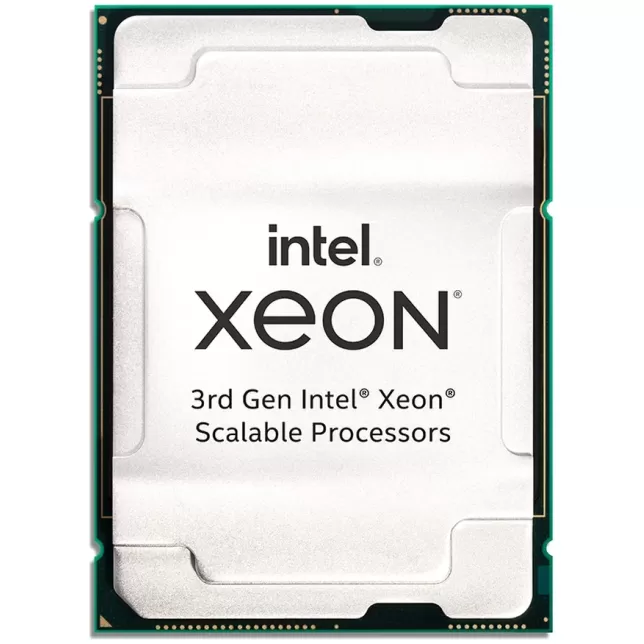

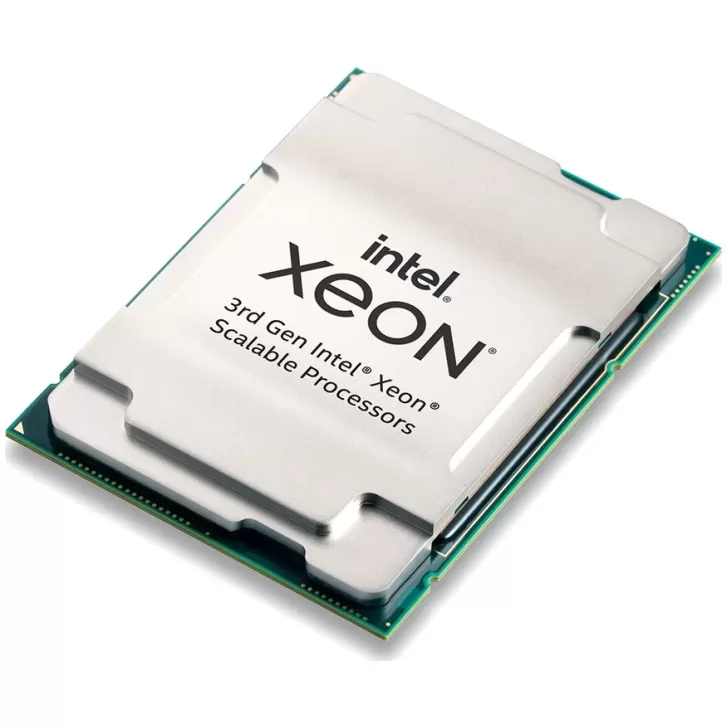

Processor Intel Xeon Gold 6330H LGA4189

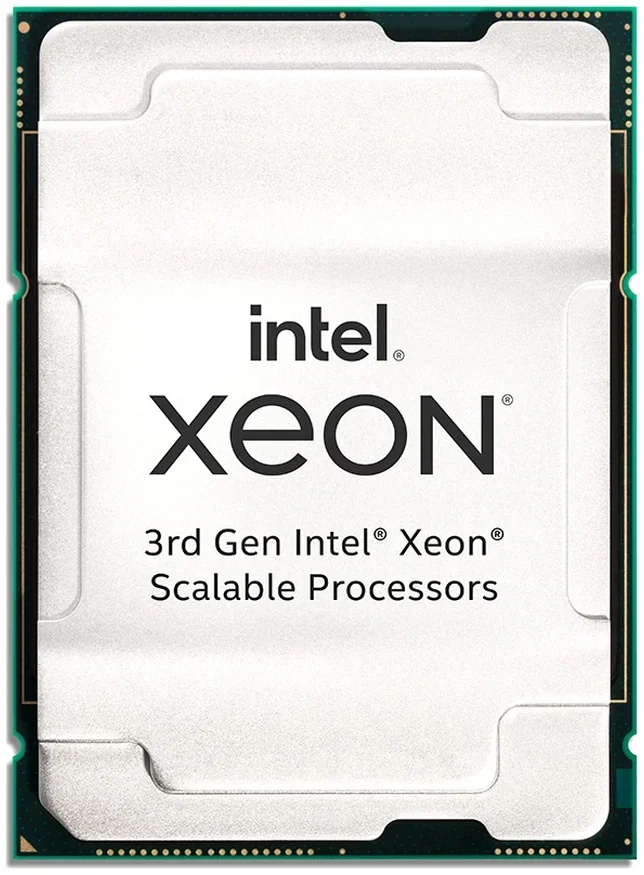

Intel Xeon Gold 6330H Processor

The Intel Xeon Gold 6330H is a server processor from the 3rd Gen Intel Xeon Scalable family (code name Cooper Lake), built for LGA4189 server platforms. It has 24 cores and 48 threads, a 2.00GHz base clock and a boost clock of up to 3.70GHz.

The processor supports six-channel DDR4 RDIMM memory at speeds of up to 2933MHz and capacity of up to 1.12TB, and offers 48 PCIe 3.0 lanes. This model is supplied in Tray packaging, without a retail box.

Key features

• 24 cores and 48 threads - A 2.00GHz base clock, a boost clock of up to 3.70GHz and 33MB of L3 cache, with a thermal design power (TDP) of 150W.
• Six-channel DDR4 memory - Supports DDR4 RDIMM memory with ECC at speeds of up to 2933MHz and capacity of up to 1.12TB.
• LGA4189 socket and PCIe 3.0 - FCLGA4189 socket, 48 PCIe 3.0 lanes and 6 UPI links for communication between processors.
• AVX-512 and Optane support - Two AVX-512 FMA units accelerate compute-heavy workloads, and the processor supports Intel Optane Persistent Memory.
• Scalable to 4 processors - Intel lists 4S scalability, meaning a server with up to four processors of this type.
• Tray packaging - The processor is supplied without a retail box and is intended for server and system builders and integrators.

Specifications
