Processor AMD EPYC 9654 SP5

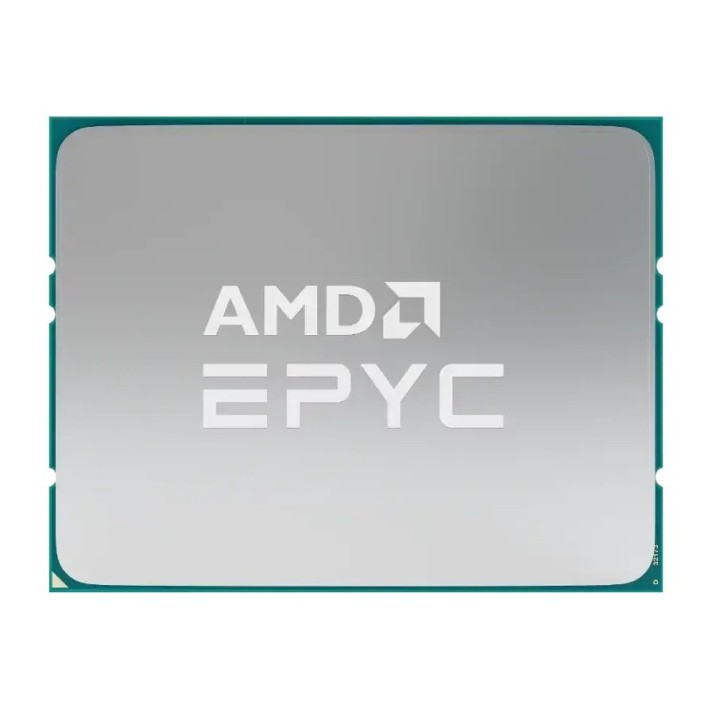

AMD EPYC 9654 Processor

The AMD EPYC 9654 is a server processor from the EPYC 9004 series, built for the SP5 socket. It has 96 cores and 192 threads, a 2.4GHz base clock and boost clocks of up to 3.7GHz, and is aimed at servers with heavy workloads.

AMD lists it for application development and testing, content management and ERP, SCM and CRM applications. It supports one or two processors per server, 12 channels of DDR5 memory and 128 lanes of PCIe 5.0.

Key features

• 96 cores and 192 threads - A 2.4GHz base clock, boost of up to 3.7GHz and an all-core boost of 3.55GHz let the server run a large number of parallel tasks.
• 384MB of L3 cache - A large L3 cache shortens access to frequently used data and helps data-intensive applications.
• 12-channel DDR5 memory - Supports DDR5 memory at up to 4800 MT/s with a bandwidth of 460.8GB/s per processor.
• 128 lanes of PCIe 5.0 - A PCIe 5.0 x128 interface connects network cards, NVMe drives and accelerators at high speed.
• SP5 socket and dual-processor support - The processor suits servers with one (1P) or two (2P) processors. The default TDP is 360W and is configurable between 320W and 400W.
• AMD Infinity Guard - AMD lists support for AMD Infinity Guard and AMD Infinity Architecture for platform security and architecture.

Specifications
