Processor AMD EPYC 9654 SP5

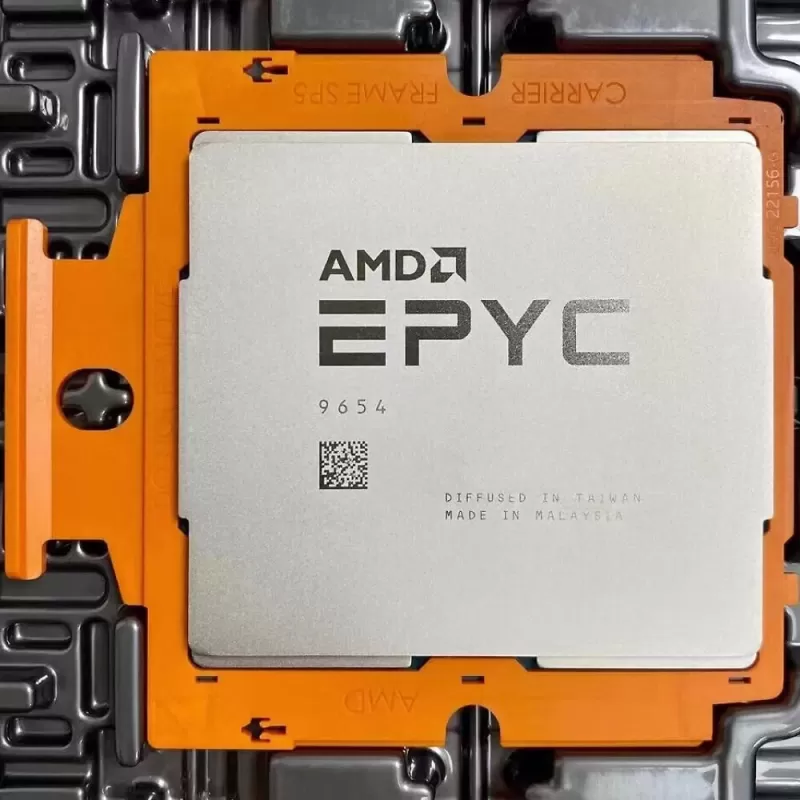

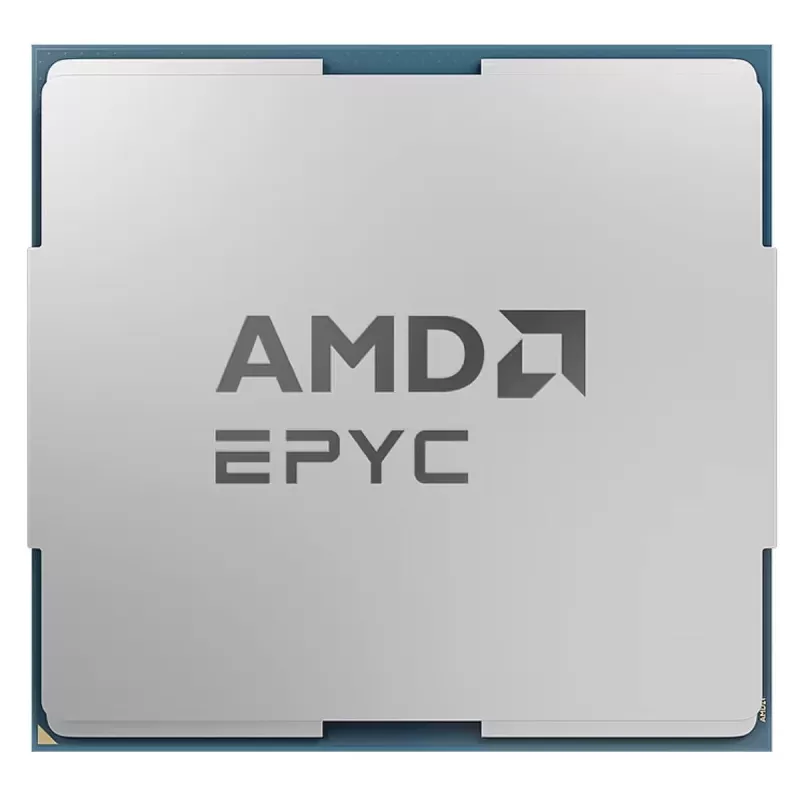

AMD EPYC 9654 Processor

The AMD EPYC 9654 is a 4th generation EPYC (9004 series) server processor for the SP5 socket, with 96 cores and 192 threads, a 2.4GHz base clock and up to 3.7GHz boost. Its 384MB L3 cache and support for one- or two-socket servers make it a foundation for data centers, virtualization and heavy business workloads.

The processor supports 12 channels of DDR5 memory at up to 4800MT/s, with 460.8GB/s of bandwidth per socket, and 128 PCIe 5.0 lanes for network cards, accelerators and NVMe storage. The default TDP is 360W, configurable (cTDP) in the 320-400W range.

Key features

• 96 cores and 192 threads - A high core count for running many virtual machines, containers and services in parallel on a single server.
• Clocks and cache - A 2.4GHz base clock, up to 3.7GHz boost and 3.55GHz all-core boost, with 384MB of L3 cache.
• 12-channel DDR5 - Support for DDR5 memory at up to 4800MT/s across 12 channels, with 460.8GB/s of bandwidth per socket.
• 128 PCIe 5.0 lanes - Wide connectivity for fast network cards, accelerators and many NVMe drives without bottlenecks.
• 1P and 2P configurations - Fits servers with one or two SP5 sockets, reaching 192 cores in a dual-socket server.
• Security and platform - Supports AMD Infinity Guard and AMD Infinity Architecture, with configurable TDP from 320W to 400W.

Specifications
