Processor AMD Ryzen 7 7700 AM5

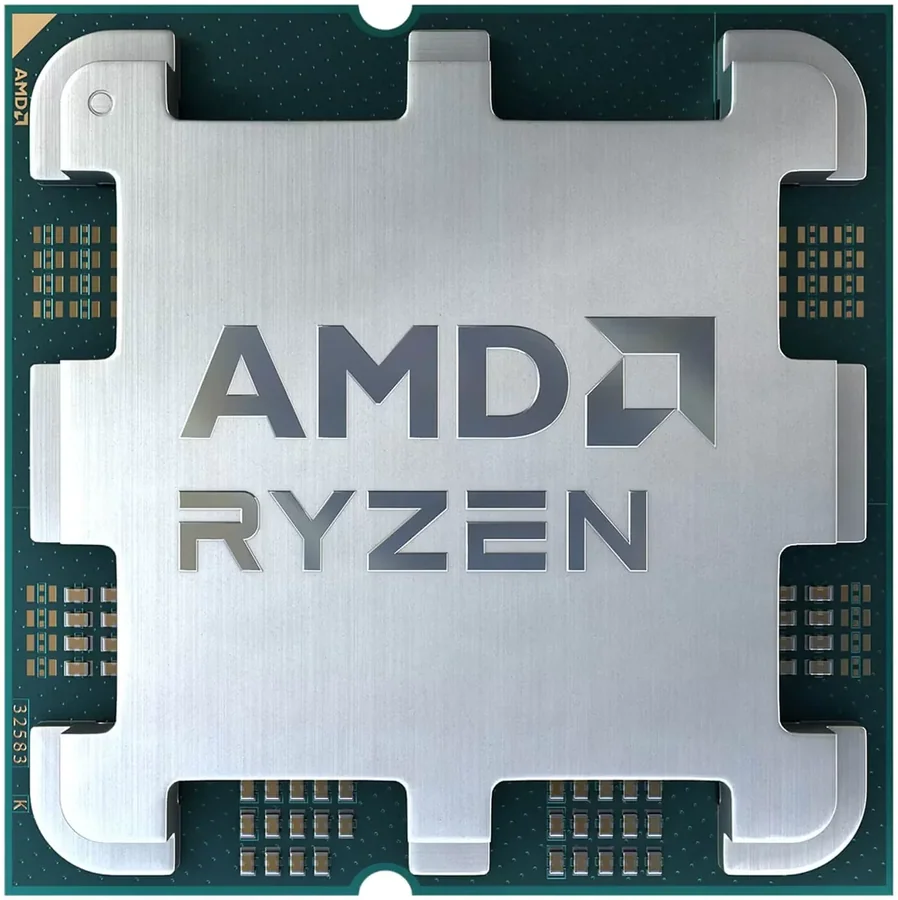

AMD Ryzen 7 7700 Processor

The AMD Ryzen 7 7700 is a Ryzen 7000 series desktop processor (code name Raphael) for the AM5 socket, built on the Zen 4 architecture in TSMC's 5nm process. It has 8 cores and 16 threads, a 3.8GHz base clock, up to 5.3GHz boost and 32MB of L3 cache at a default TDP of only 65W.

The mix of high performance and low power draw suits gaming PCs, quiet workstations and small cases. It supports DDR5 memory, PCIe 5.0 and AMD EXPO, and includes integrated AMD Radeon Graphics. Part number 100-000000592 is the tray version, which comes without a box and without a cooler.

Key features

• 8 Zen 4 cores up to 5.3GHz - 8 cores and 16 threads with a 3.8GHz base clock and up to 5.3GHz boost for gaming, heavy applications and multitasking.
• 65W TDP - The low default TDP allows quieter cooling and suits small cases and PCs that run for long hours.
• DDR5 and PCIe 5.0 - Dual-channel DDR5 at up to DDR5-5200 and up to 128GB, plus 28 PCIe 5.0 lanes (24 usable).
• Integrated graphics - AMD Radeon Graphics with 2 graphics cores at 2200MHz lets the PC run without a discrete graphics card.
• Unlocked for overclocking - Despite its low TDP, the processor is unlocked and supports Precision Boost Overdrive, Curve Optimizer and AMD EXPO.
• AM5 platform - Compatible with motherboards based on the A620, B650, B650E, X670, X670E, B840, B850, X870 and X870E chipsets.

Specifications
