Processor AMD Ryzen 5 7600X AM5

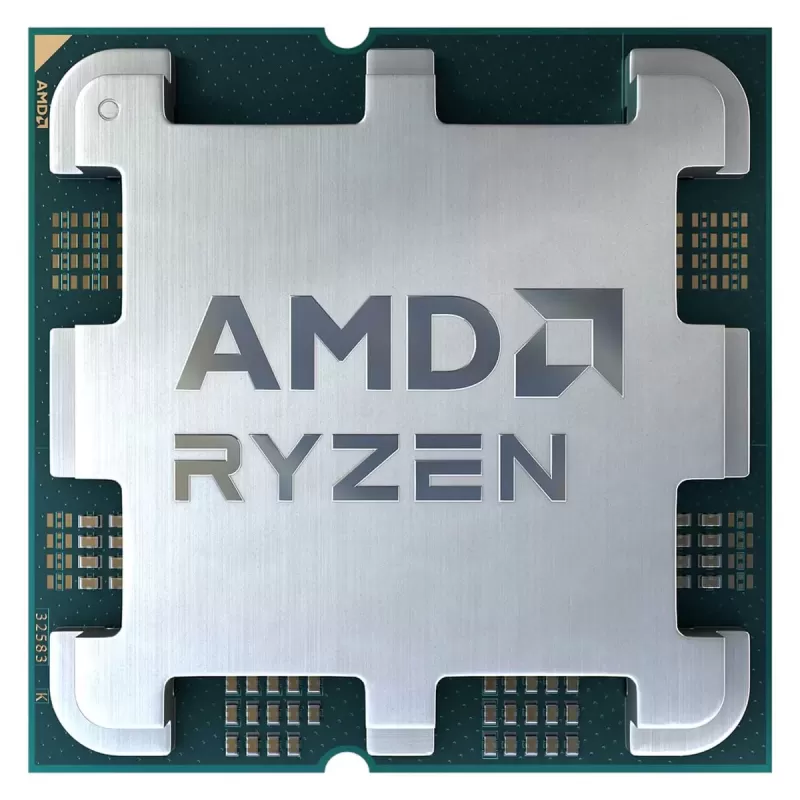

AMD Ryzen 5 7600X Processor

The AMD Ryzen 5 7600X is a Ryzen 7000 series desktop processor (code name Raphael) for the AM5 socket, built on the Zen 4 architecture in TSMC's 5nm process. It has 6 cores and 12 threads, a high 4.7GHz base clock, up to 5.3GHz boost and 32MB of L3 cache, making it a strong choice for a gaming PC.

It supports dual-channel DDR5 memory, PCIe 5.0 for a graphics card and NVMe drives, and AMD EXPO. Integrated AMD Radeon Graphics with 2 graphics cores is built in, and the default TDP is 105W. Part number 100-000000593 is the tray version, which comes without a box and without a cooler.

Key features

• 6 Zen 4 cores up to 5.3GHz - 6 cores and 12 threads with a 4.7GHz base clock and up to 5.3GHz boost deliver high gaming performance.
• 32MB L3 cache - 384KB of L1, 6MB of L2 and 32MB of L3 cache shorten data access times.
• DDR5 and PCIe 5.0 - Dual-channel DDR5 at up to DDR5-5200 and up to 128GB, plus 28 PCIe 5.0 lanes (24 usable) for a graphics card and NVMe drives.
• Integrated graphics - AMD Radeon Graphics with 2 graphics cores at 2200MHz lets the PC run without a discrete graphics card.
• Unlocked for overclocking - The processor is unlocked and supports Precision Boost Overdrive, Curve Optimizer, AMD EXPO and AMD Ryzen Master.
• AM5 platform - Compatible with motherboards based on the A620, B650, B650E, X670, X670E, B840, B850, X870 and X870E chipsets. Default TDP is 105W, and AMD recommends a premium air cooler.

Specifications
